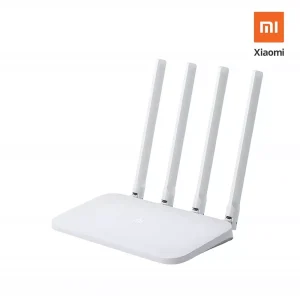

Xiaomi Mi Router 4C 300Mbps White DVB4231GL R4CM

Name: PC Circle
Price range: $$

More about Xiaomi 4C White DVB4231GL

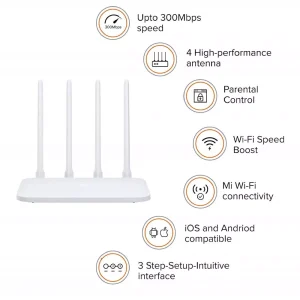

4 external antennas Powerful signals, wide coverage and fast transmission

The 4 external omnidirectional external antennas with a signal gain of 5dBi can effectively enhance the signal gain effect to improve transmission performance and can be used easily in various complex real-world environments

DVB4231GL

Intelligent speed limit for faster internet access

You can choose a router configuration according to the app market or allow the Mi Router 4C to carry out intelligent optimization so that you have a smoother experience playing games, watching videos or browsing the web. For a better online experience, you can also prioritize network bandwidth for a single device.

Xiaomi 4C White DVB4231GL

Greater guarantee of internet speed DVB4231GL

The majority of unauthorized Wi-Fi access is due to passwords being too simple or network sharing software being installed. The Mi Router 4C can alert you when a new device connects to the network. If a suspicious device tries to join the network, depending on the security level, it will be blocked from connecting, or you will be prompted to add the device to the blacklist

Xiaomi 4C White DVB4231GL

Wi-Fi optimizations DVB4231GL

To give the network speed a boost, open the Mi Wi-Fi app, go to the toolbox, and simply click “Wi-Fi Optimization” to automatically monitor and optimize the Wi-Fi channel in multiple dimensions.

DVB4231GL

Specification of DVB4231GL

Hardware configuration

Processor
MT7628DA
Internal memory
64MB DDR2
2.4GHz Integrated LNA and PA
5GHz  Not supported
Heat dissipation
Natural heat dissipation
Operating humidity
10%–90% RH (no condensation)
Storage temperature
-40–70°C
Protocol standards
IEEE 802.11b/g/n IEEE 802.3/3u
ROM
16MB NorFlash
2.4GHz Wi-Fi
2×2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps)
5GHz
Wi-Fi Not supported
Antennas
4x external single band antennas
Operating temperature0
–40°C
Storage humidity
5%–90% RH (no condensation)
Certification standards
GB9254-2008 YD/T993-1998 GB4943.1-2011 GB9254-2008 YD/T993-1998 GB4943.1-2011″

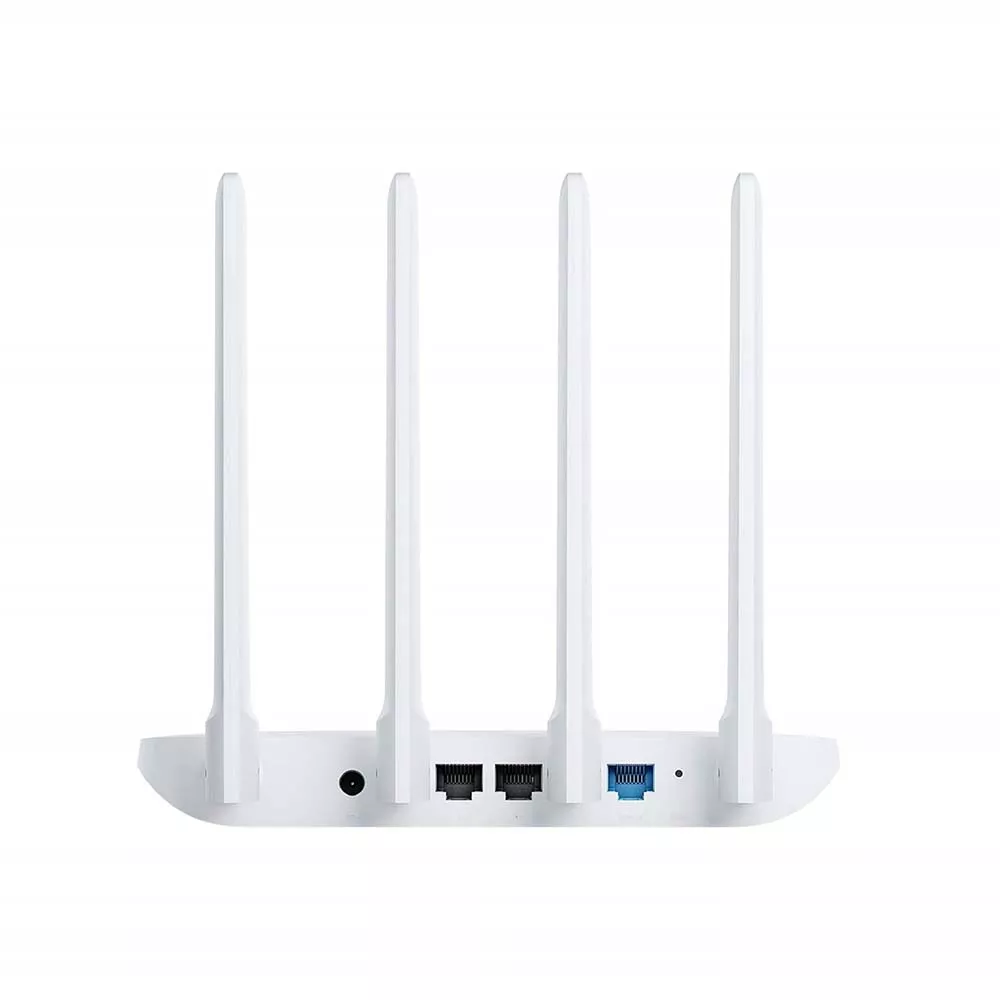

Hardware interface

Two 10/100M self-adaptive LAN ports (Auto MDI/MDIX)One system factory settings reset buttonOne orange/blue/purple system status light; one blue external network interface status lightOne 10/100M self-adaptive WAN port (Auto MDI/MDIX)One power input interface

Wireless specifications

single band2.4GHz
Modulation
11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15
Reception sensitivity11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm

Software specifications

Operating systemMi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software
Wireless securityWPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding
Management application Supports web, iOS, and Android
