tplink wifi Router tlwr820n
tplink wifi Router tlwr820n
- 300 Mbps Wi-Fi speed is idea300 Mbps 300 Mbps l for daily tasks including browsing, emailing, and video streaming
- IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Guest Network provides separate access for guests while securing the host network
- Parental Controls manage when and how connected devices can access the internet
- SPI firewall and wireless encryption protect your home network
- Compatible with IPv6 (Internet Protocol version 6)
Overview

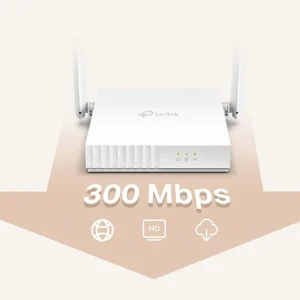

High-Speed Wi-Fi
Enjoy web browsing, HD streaming, and downloading with your family. 300 Mbps wireless speeds on the 2.4 GHz band meet your daily needs.
Strong Signal, Great Coverage
Two powerful 5 dBi antennas and 2×2 MIMO enhance wireless transmission to deliver broader wireless coverage with stronger signal intensity.
Smooth Video Streaming
IGMP Proxy/Snooping, Bridge, and Tag VLAN support optimizes IPTV streaming so you can enjoy your favorite movies and shows lag-free.

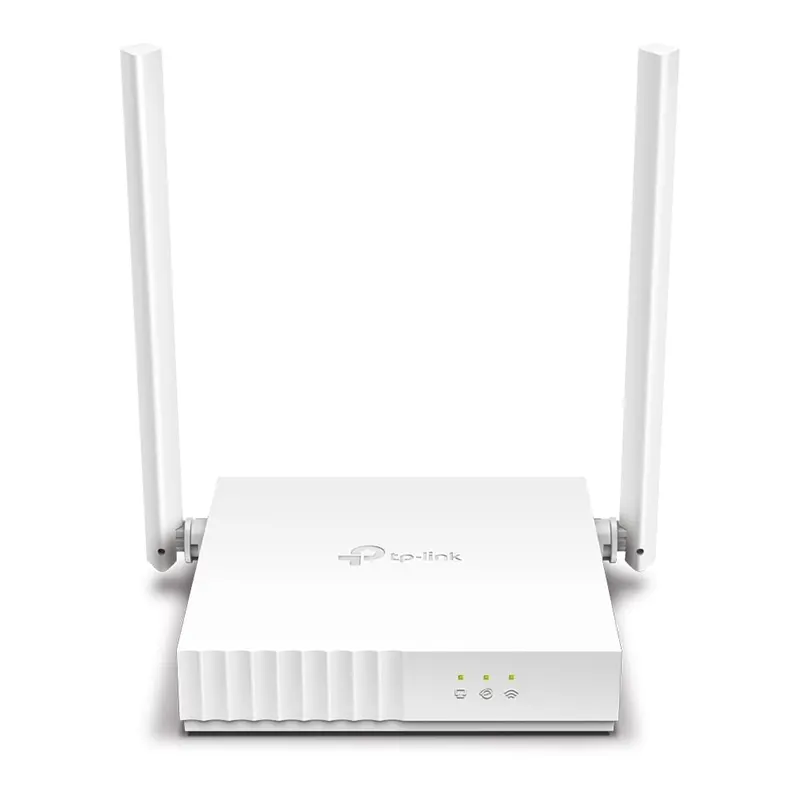

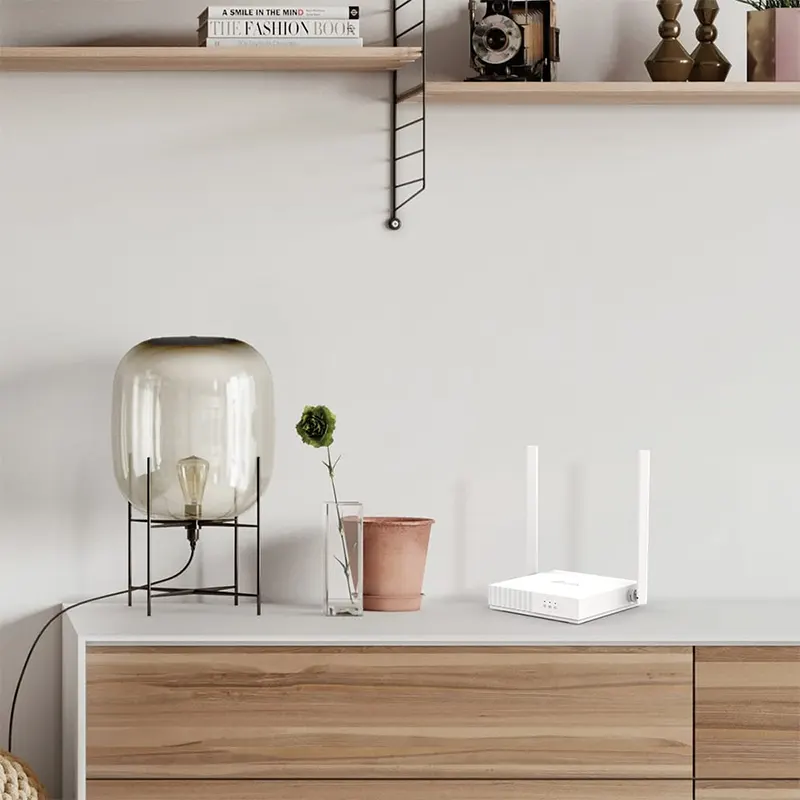

Elegant Design
Designed to conserve space and complement virtually any décor while delivering stable Wi-Fi to your home.
Easy Setup at Your Fingertips
Set up Wi-Fi in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.
tplink router tlwr820N 300Mbps
Specifications
WIRELESS | |
|---|---|
| Standards | Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | N300 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses 2× Fixed Antennas |
| WiFi Capacity | Legacy |
| Working Modes | Router Mode Access Point Mode Range Extender Mode WISP Mode |
HARDWARE | |
|---|---|
| Processor | Single-Core CPU |

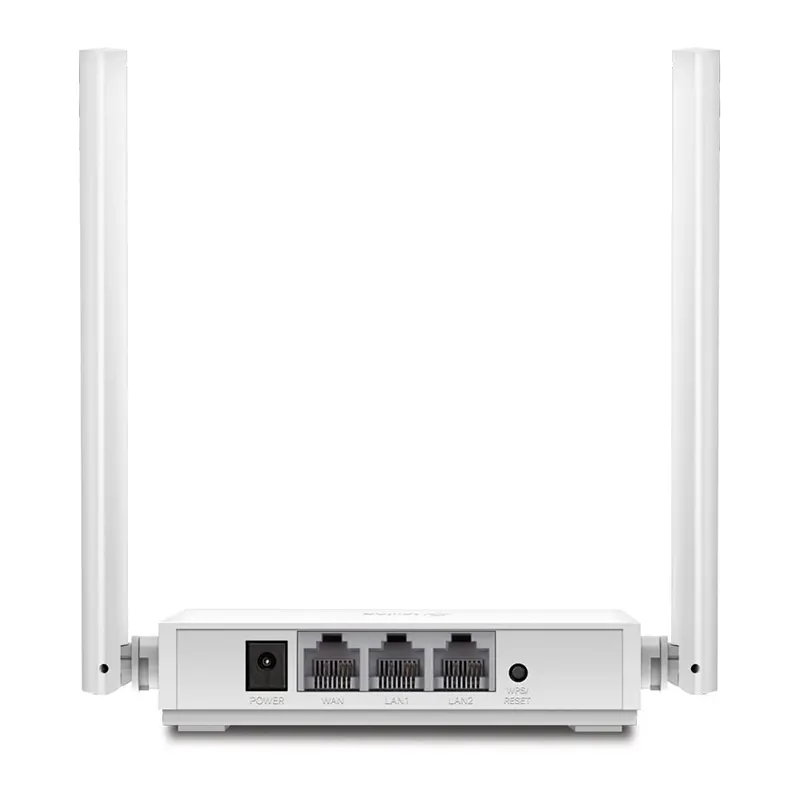

| Ethernet Ports | 1× 10/100 Mbps WAN Port 2× 10/100 Mbps LAN Ports |
| Buttons | Reset Button |
| Power | 5 V ⎓ 0.6 A |
SECURITY | |
|---|---|
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP DynDNS |
| Management | Tether App Webpage Check Web Emulator> |
PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm) |
| Package Contents | Wi-Fi Router TL-WR820N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4GHz) FCC: <30dBm |
| WiFi Reception Sensitivity | 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER |
