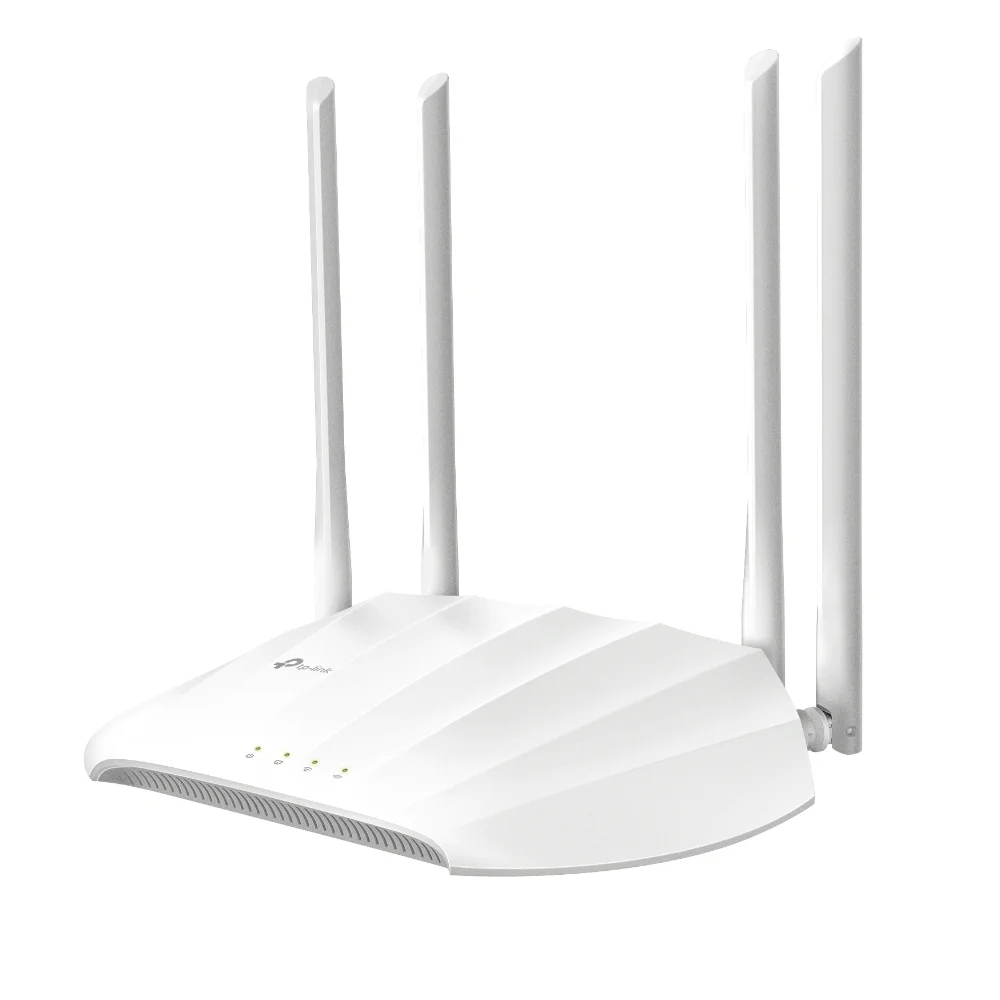

TP-Link AC1200 Wireless Access Point [TL-WA1201]

tplink ac1200 Wireless  TL-WA1201

tplink ac1200 Wireless Access Point TL-WA1201

Overview

# AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band.

# Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.

# Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.

# MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance.

# Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.

# Captive Portal – Offers a designed portal page for heightened security and marketing.

Specifications

HARDWARE FEATURES

Interface

1× 10/100/1000 Mbps Ethernet Port

(Supports Passive PoE)

Button

Power On/Off Button, WPS Button, Reset Button

External Power Supply

12V/1.5A

Wireless Standards

IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz

Dimensions ( W x D x H )

225×145.5×37 in (400×255×72 mm)

Antenna Type

4 Fixed High Performance Antennas

WIRELESS FEATURES

Frequency

2.4 GHz and 5 GHz

Signal Rate

867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz

Reception Sensitivity

5 GHz:

11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm

11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm

11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm

11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:

11g 54Mbps: -78 dBm

11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm

11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Transmit Power

CE:
