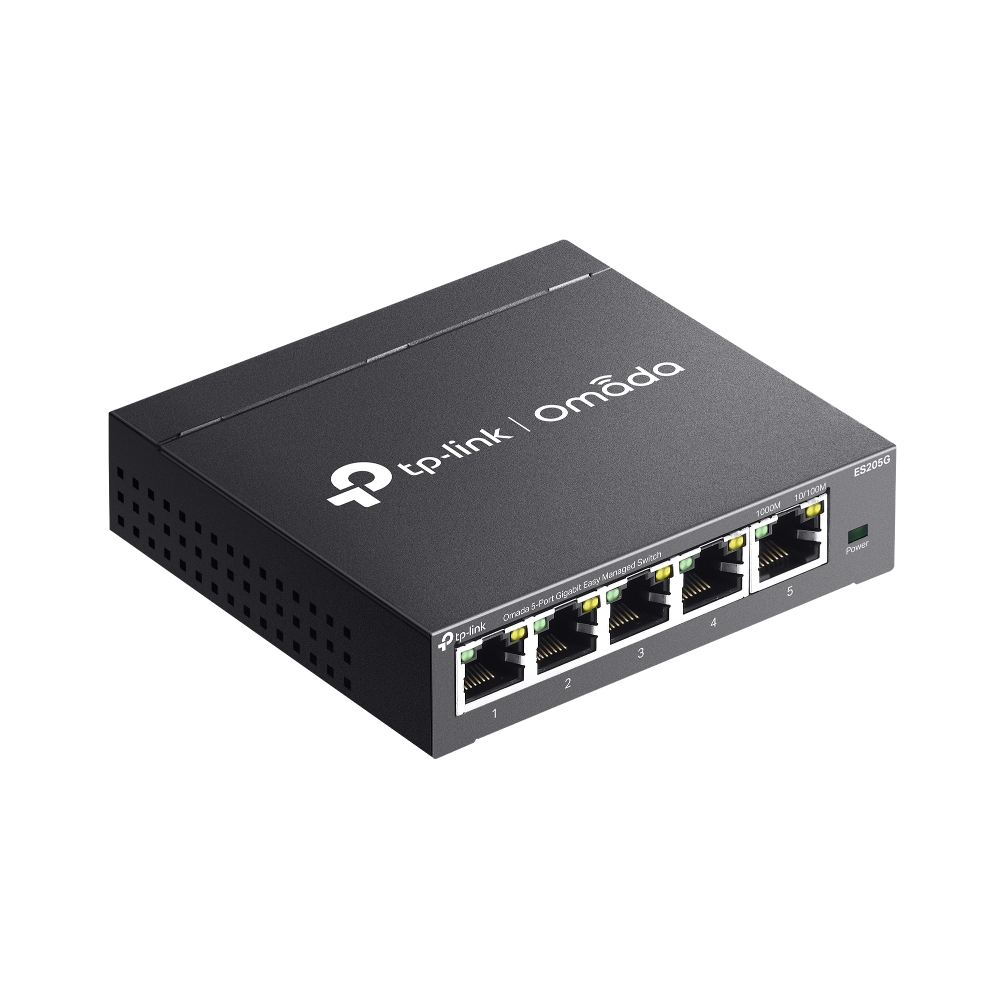

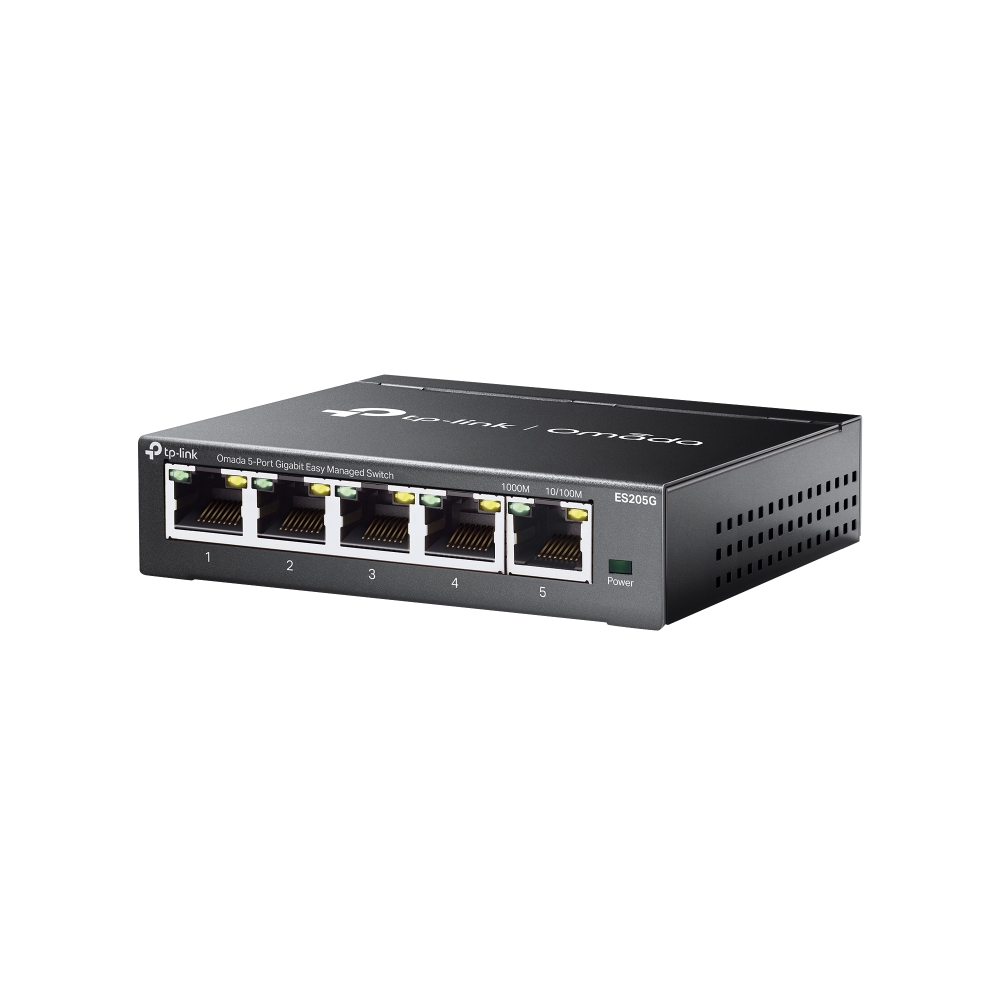

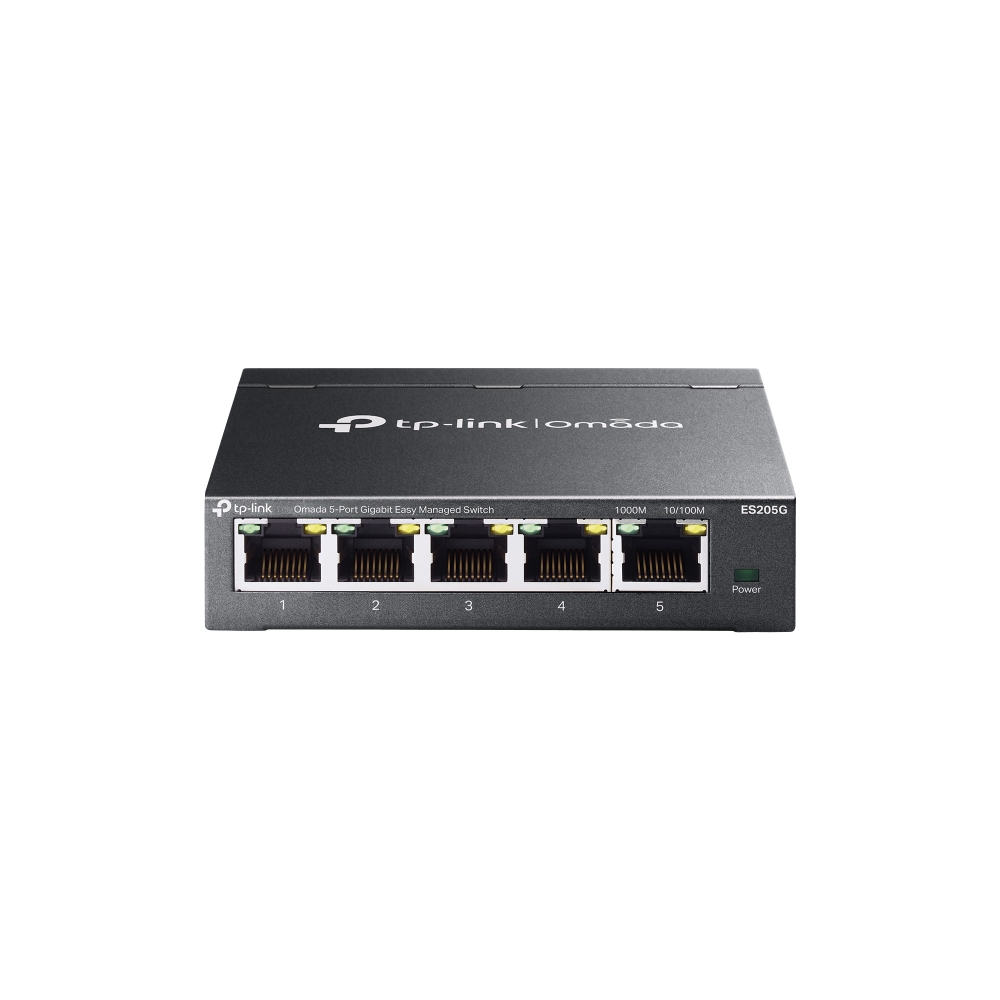

TP-Link ES205G 5-Port Switch

5× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralised Cloud Management via the web or the Omada app^†
Automatic Loop Prevention, VLAN, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

HARDWARE FEATURES
Interface	• 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity	Fanless

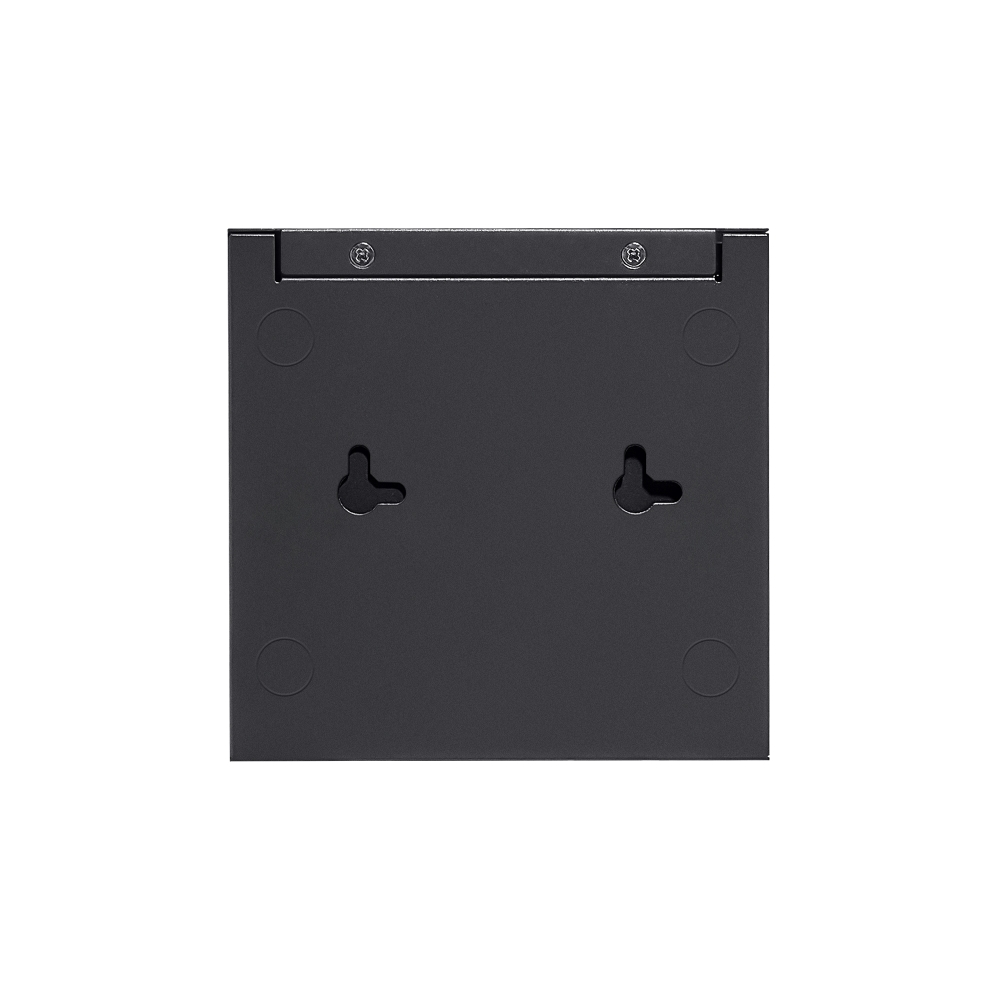

Installation	• Desktop • Wall Mount
Physical Security Lock	√

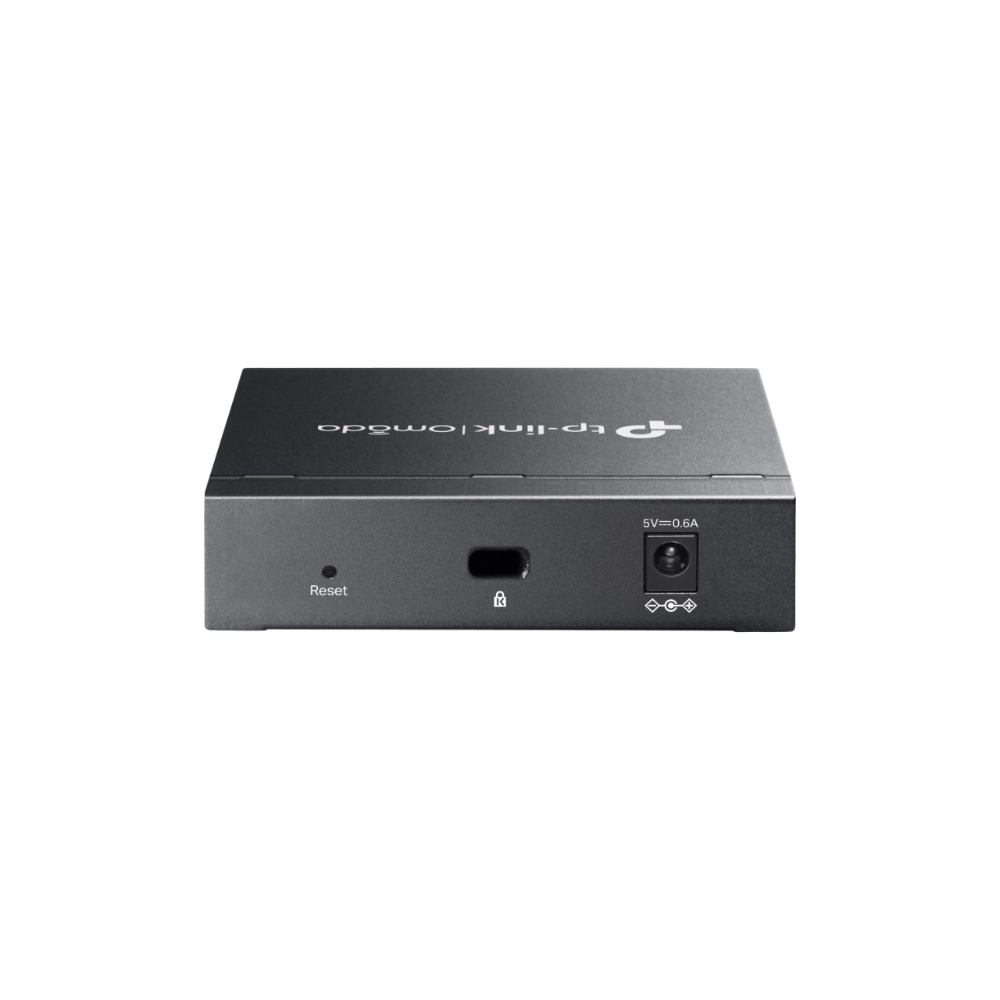

Power Supply	External DC Power Adapter (Output: 5 VDC/ 0.6 A)
Dimensions ( W x D x H )	3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Surge Protection	±6kV

PERFORMANCE
Switching Capacity	10 Gbps
Packet Forwarding Rate	7.4 Mpps
MAC Address Table	8 K
Packet Buffer Memory	4 Mbits
Jumbo Frame	15 KB

SOFTWARE FEATURES
Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control^△
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery^† • Batch Configuration^† • Batch Firmware Upgrading^† • Unified Configuration^†

OTHERS
Certification	FCC, CE, RoHS
Package Content	• ES205G • Power Adapter • Installation Guide • Rubber Feet
Environment	• Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing

For additional version information, please go to the support page.

Click to enlarge

TP-LINK ES205G Omada 5-Port Gigabit Easy Managed Switch

Name: PC Circle
Price range: $$

24.95 JOD

Add 30.00 JOD to cart and get free shipping!

In stock

Add to compare

Add to wishlist

SKU: 0800395 Categories: Network Products, Wired Tag: TP-Link
