TP-Link AC1900 Wireless MU-MIMO Wi-Fi Router [Archer C80]

TP-Link AC1900 Wireless MU-MIMO Wi-Fi Router Archer C80

More about TP-Link AC1900 C80

802.11ac Wave2 Wi-Fi – 1300 Mbps on the 5 GHz band and 600 Mbps on the 2.4 GHz band.

3×3 MIMO Technology – Transmitting and receiving data on three streams to pair flawlessly with your 3×3 clients.

Boosted Wi-Fi Coverage – Beamforming technology delivers a highly efficient wireless connection.

MU-MIMO – To help your devices achieve optimal performance by making communication more efficient.

Personalized Management – Advanced features like Parental Controls, Guest Network, and Access Control provide individualized tools for network management.

Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage.

Overview

Maximum Wi-Fi Performance with Three Streams

With 3×3 MIMO, Archer C80 is capable of transmitting and receiving data on three streams. 3×3 capable computers— like Macs—pair perfectly with C80 to perform at max with much higher efficiency than 2×2 MIMO routers.

Incredible 802.11ac Wave2 Home Wi-Fi

Archer C80 delivers high-performance and affordable home Wi-Fi with total speeds up to 1900 Mbps. Handle simple tasks like sending e-mails or web browsing on the 2.4 GHz band and bandwidth-intensive tasks like online gaming or 4K/8K UHD streaming on the 5 GHz band—all lag-free.

Broader Coverage throughout Your Home

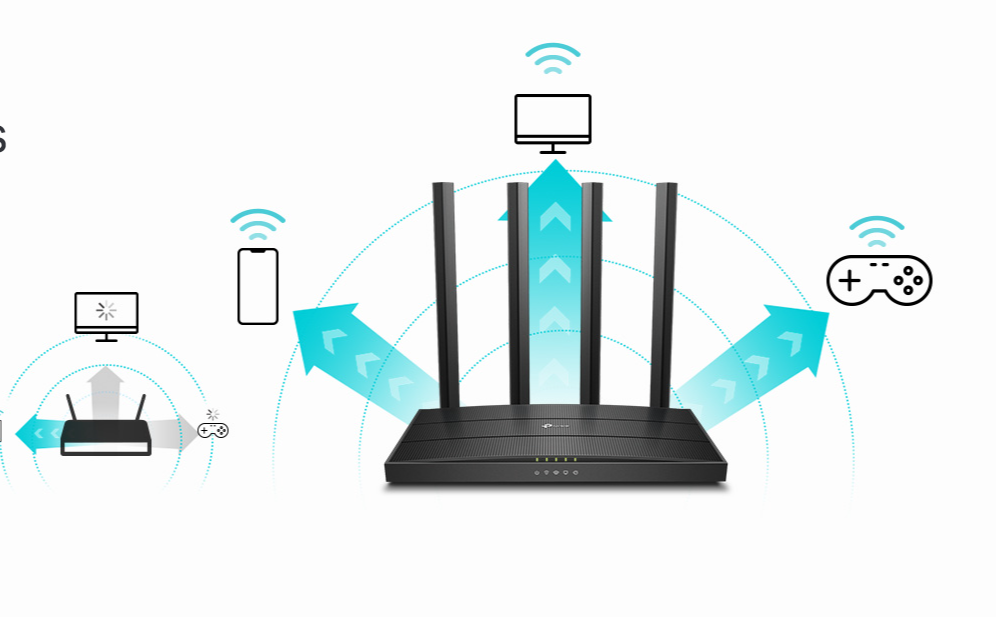

Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signal strength towards them, even if they are far away or low-powered.

Connect More Devices Simultaneously

Archer C80 helps your devices achieve optimal performance by making communication more efficient with MU-MIMO technology. Multiple devices are able to send and receive data on the best available band. Enjoy non-stop entertainment on all your devices—lag free.

Increased Efficiency in Wi-Fi Distribution

Smart Connect helps your router automatically switch each device’s connection to the best available Wi-Fi band while Airtime Fairness prevents older devices from slowing down your network. With both, everyone can enjoy a smoother, lag-free W-Fi experience.

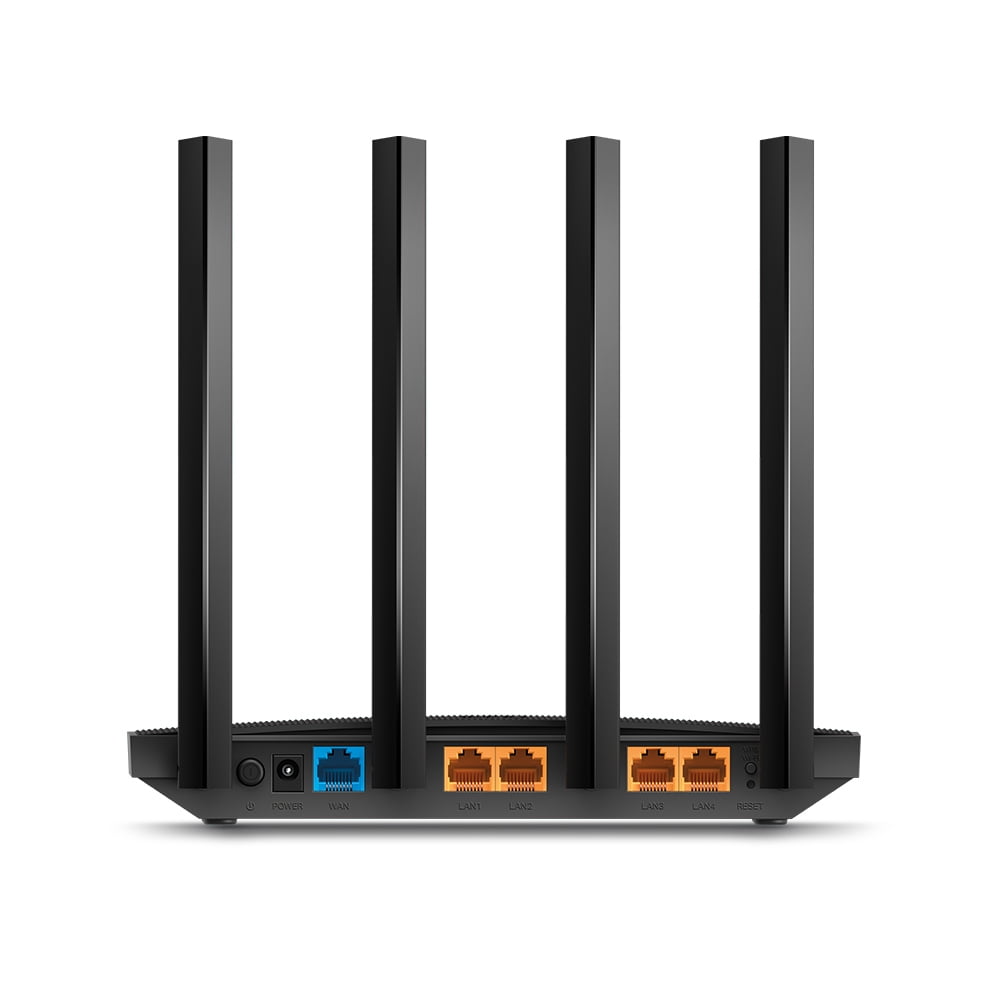

Full Gigabit Ports

Gigabit Ethernet ports (1 WAN+ 4 LAN) deliver maximum wired speeds. Plug in your PCs, smart TVs, and game consoles for fast and reliable connections.

Personalize Your Home Network

Archer C80 provides a wealth of advanced tools for personalized management.

Easy Setup at Your Fingertips

Set up Archer C80 in minutes via its intuitive web interface or the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device.

IPv6 Supported

Future-proof your network with IPv6 (Internet Protocol Version 6) support

Specifications of

WIRELESS

Standards

Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC1900

5 GHz: 1300 Mbps (802.11ac)

2.4 GHz: 600 Mbps (802.11n)

WiFi Range

3 Bedroom Houses

4× Fixed High-Performance Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity

Medium

Dual-Band

Allocate devices to different bands for optimal performance

3×3 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

Working Modes

Router Mode

Access Point Mode

HARDWARE FEATURES

Interface

4 x 10/100/1000Mbps LAN Ports

1 x 10/100/1000Mbps WAN Port

Button

Reset Button

WPS/Wi-Fi Button

Power On/off Button

External Power Supply

US version 12V/1.5A EU version 12V/1A

Dimensions ( W x D x H )

8.5 × 4.6 × 1.26 in (215 × 117 × 32 mm)

Antenna

4 Fixed Omni Directional Antennas

HARDWARE

Processor

1.2 GHz CPU

Ethernet Ports

1× Gigabit WAN Port

4× Gigabit LAN Ports

Buttons

WPS/Wi-Fi Button

Power On/Off Button

Reset Button

Power

US Version

12 V ⎓ 1.5 A

EU Version

12 V ⎓ 1 A

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac 5 GHz

IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

1300 Mbps on 5 GHz + 600 Mbps on 2.4 GHz

Reception Sensitivity

5 GHz:

• 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
• 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
• 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
• 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm

2.4 GHz:

• 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
• 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
• 11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm

Transmit Power

CE:
