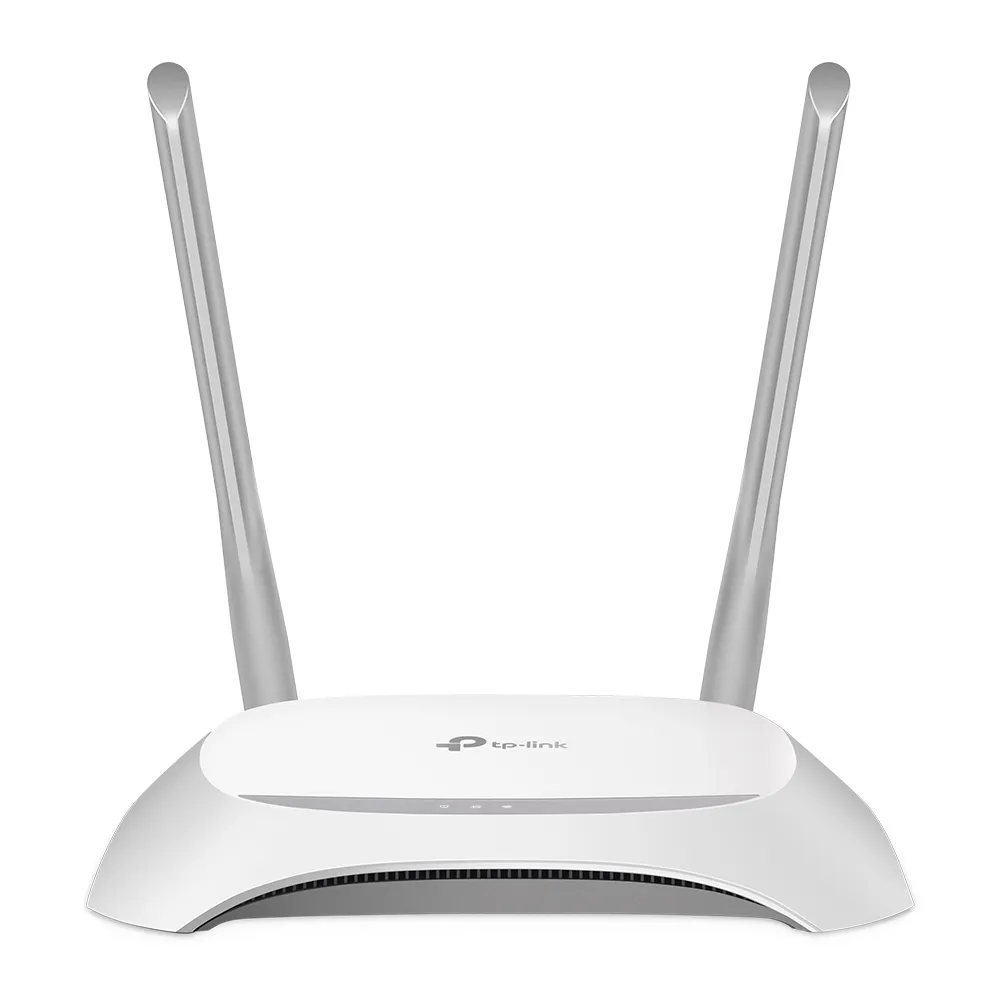

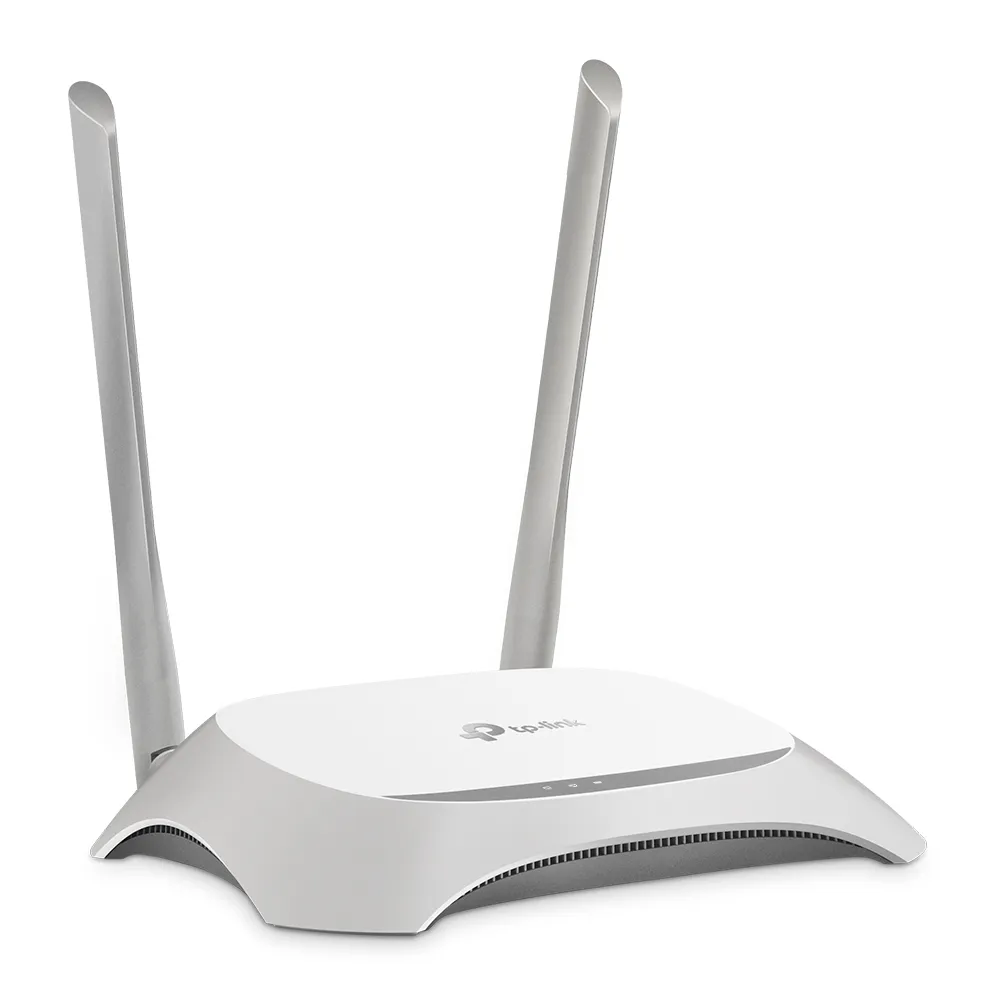

TP-Link 300Mbps Wireless N Router 4 in 1 (Access Point/Range Extender/Router/WISP) [TL-WR840N]

Name: PC Circle
Price range: $$

More about TP-Link 300 Mbps TL-WR840N

Descripthion

300 Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
Supports 4 modes: Router, Range Extender, Access Point and WISP modes
Parental Controls manage when and how connected devices can access the internet
IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
compatible with IPv6 (Internet Protocol version 6)
Guest Network provides separate access for guests while securing the home network

TP-Link 300 Mbps TL-WR840N

300Mbps Wireless N Speed – Fast Download Speed

TL-WR840N is compatible with IEE 802.11b/g/n and provides a high speed solution. Complying with the IEEE802.11n standard

TP-Link 300 Mbps TL-WR840N

Easy Parental Control

Parental Control allows parents or administrators to deploy restricted access for children or staff

TP-Link 300 Mbps TL-WR840N

Easy Setup and Use

Set up the TL-WR840N in minutes thanks to its intuitive web interface and the powerful Tether app

TP-Link 300 Mbps TL-WR840N

Specification

Feature	Specification
Standards and Protocols	Wi-Fi 4 (IEEE 802.11n/b/g 2.4 GHz)
Wi-Fi Speeds	N300 (2.4 GHz: 300 Mbps, 802.11n)
Wi-Fi Range	2 Bedroom Houses
Antennas	2× Fixed Antennas
Wi-Fi Capacity	Legacy
Working Modes	Router Mode, Access Point Mode, Range Extender Mode, WISP Mode

Security

Feature	Specification
Network Security	SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
Guest Network	1× 2.4 GHz Guest Network
Wi-Fi Encryption	WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

Hardware

Feature	Specification
Processor	Single-Core CPU

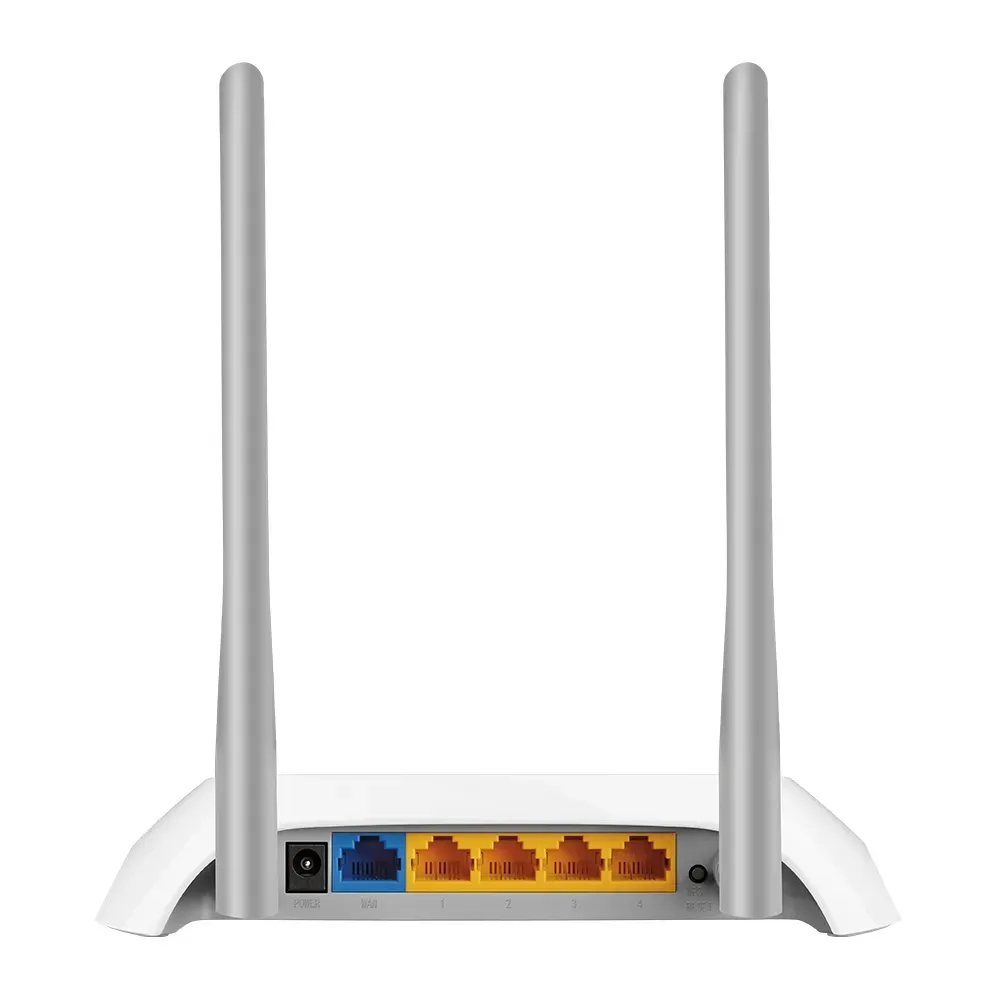

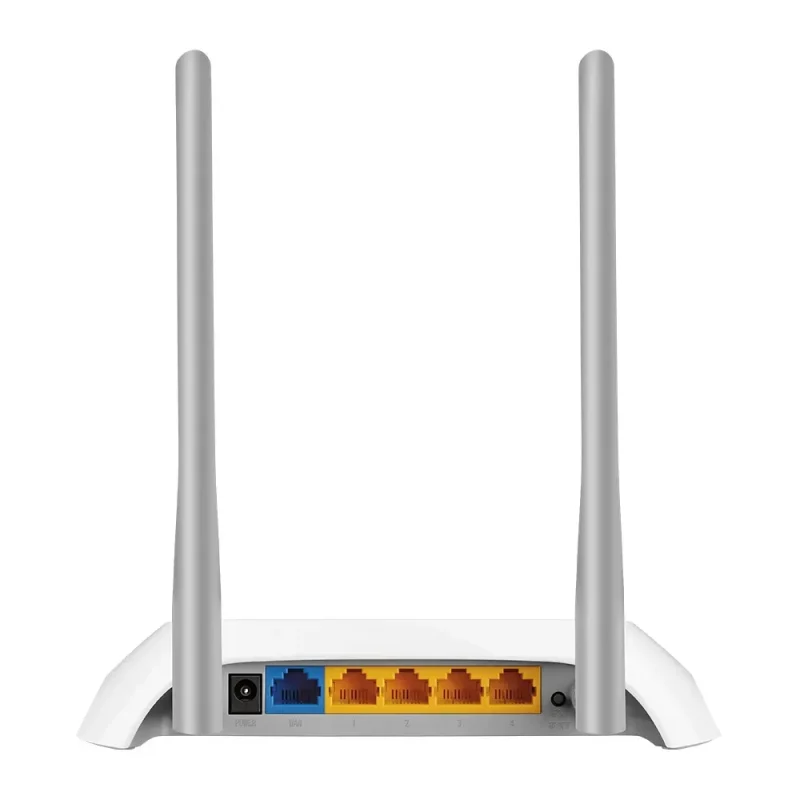

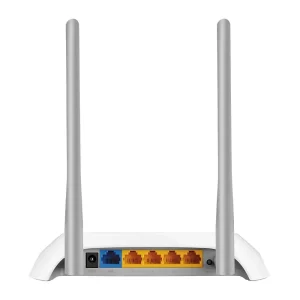

Ethernet Ports	1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
Buttons	Reset Button
Power	9 V ⎓ 0.6 A

Software

Feature	Specification
Protocols	IPv4, IPv6
Parental Controls	URL Filtering, Time Controls
WAN Types	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Quality of Service	QoS by Device
NAT Forwarding	Port Forwarding, Port Triggering, DMZ, UPnP
IPTV	IGMP Proxy, IGMP Snooping
DHCP	Address Reservation, DHCP Client List, Server
DDNS	NO-IP, Comex, DynDNS
Management Features	Tether App, Webpage (Check Web Emulator)

Other

Feature	Specification
Network Services Enabled by Default	Web Server: Manage and configure device through web (HTTP/HTTPS) – Port: 80/443, Protocol: TCP DHCP Server: IP address assignment (DHCP) – Port: 67, Protocol: UDP App Management: Manage and configure device through app – Port: 22 (TCP), Port: 20001 (TCP), Port: 20002 (UDP)
System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
Certifications	FCC, CE, RoHS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Test Data

Feature

Specification

Wi-Fi Transmission Power

CE: <20dBm(2.4GHz)

FCC: <30dBm

Wi-Fi Reception Sensitivity

270M: -68dBm@10% PER

130M: -68dBm@10% PER

108M: -68dBm@10% PER

54M: -68dBm@10% PER

11M: -85dBm@8% PER

6M: -88dBm@10% PER

1M: -90dBm@8% PER

Physical

Feature	Specification
Dimensions (W×D×H)	7.2 × 5.0 × 1.4 in (182 × 128 × 35 mm)

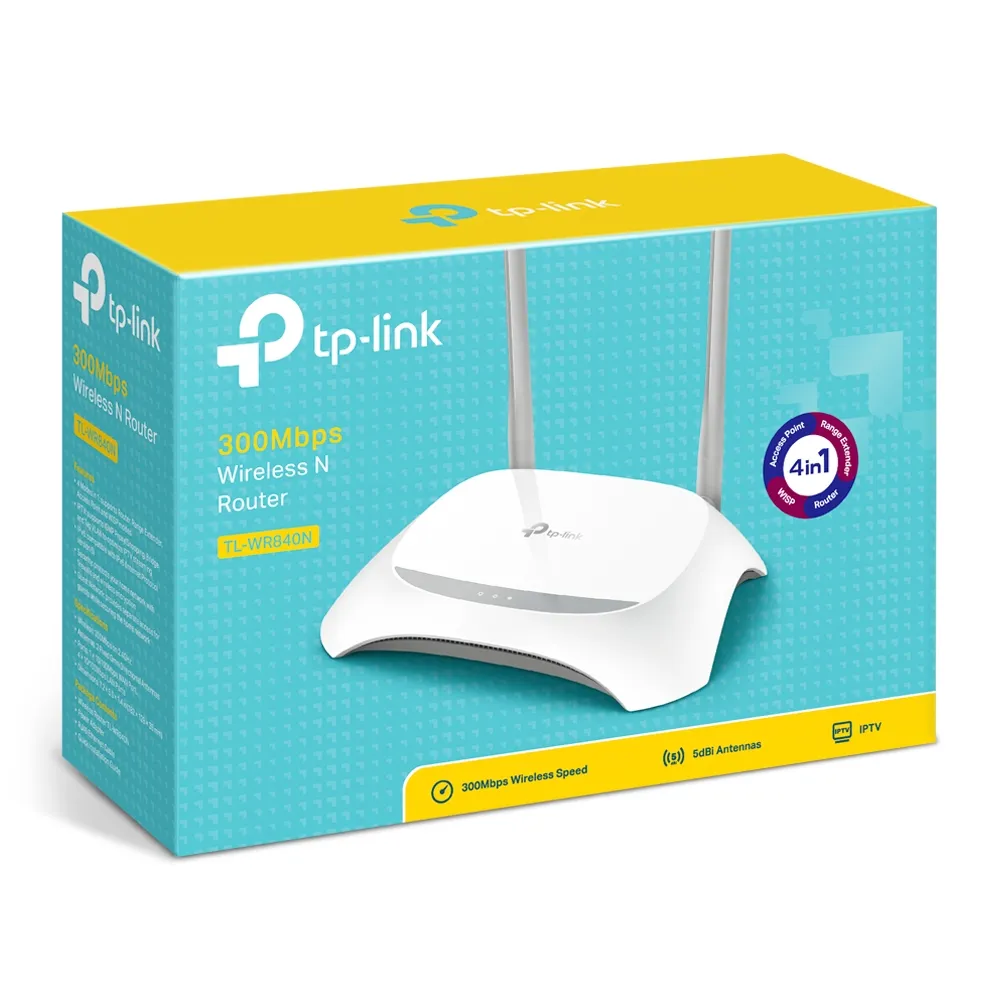

Package Contents	Wi-Fi Router TL-WR840N, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide

–

For more information visit TP – LINK

visit our website to explore Router products – Amman Jordan Pccircle
Buy for competitive price at PC Circle , Amman jordan or order online and and try out fast delivery service .
