Lenovo ThinkCentre M70q Gen4
Lenovo ThinkCentre M70q Gen4

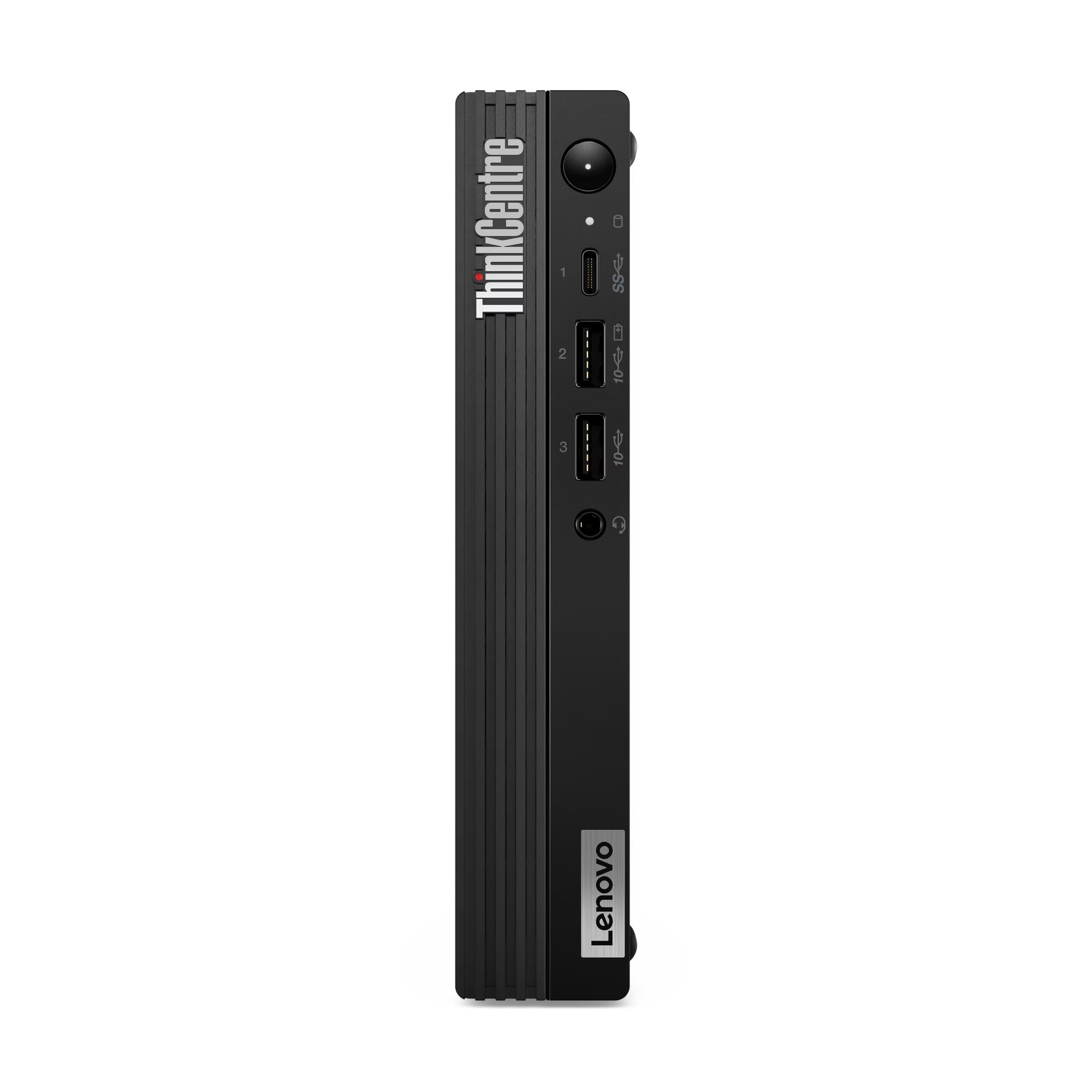

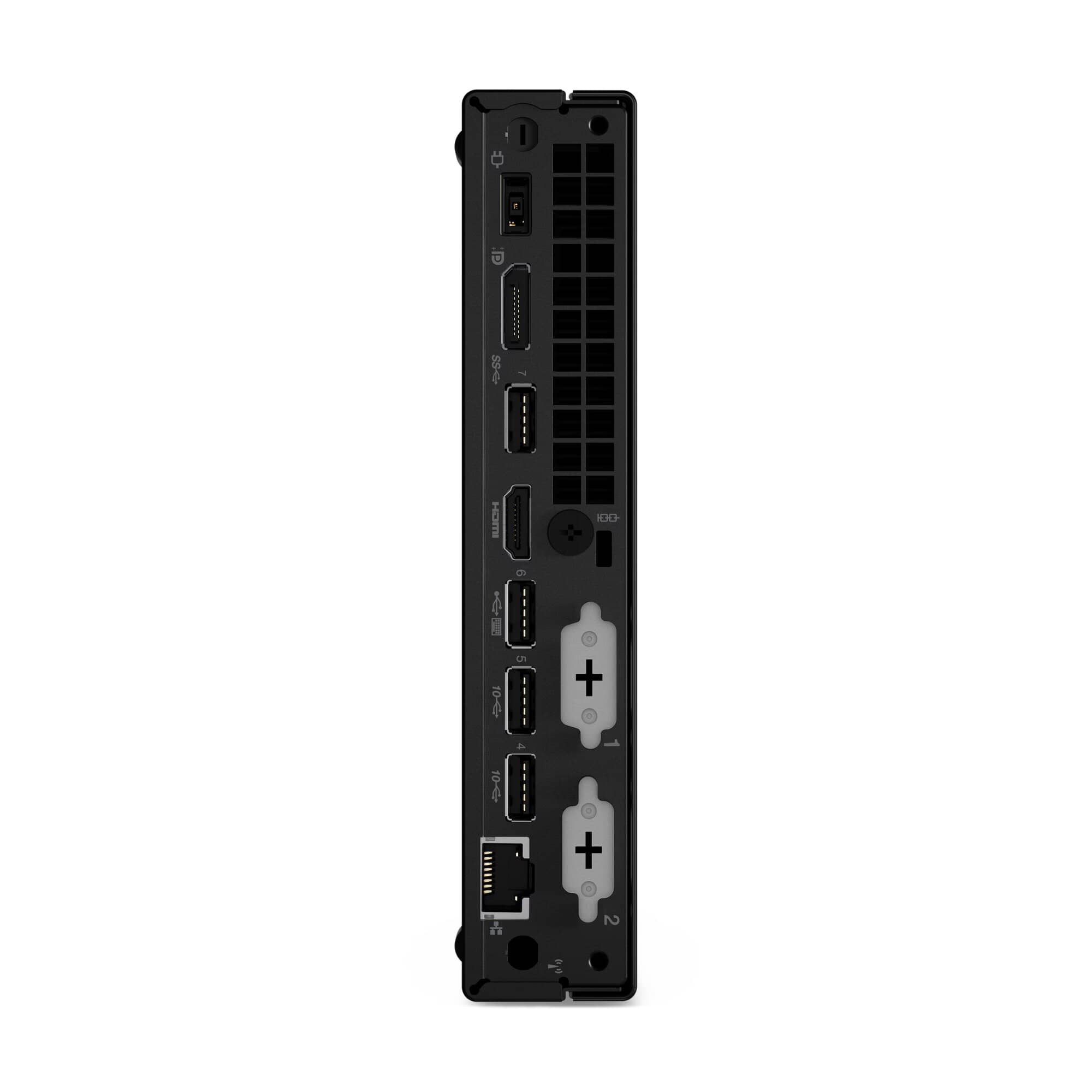

1. USB-C® 3.2 Gen 1 | 8. HDMI® 2.1 TMDS |
2. USB 3.2 Gen 2 (Always On and fast charge) | 9. USB 3.2 Gen 1 |
3. USB 3.2 Gen 2 | 10. DisplayPort™ 1.4a |
4. Headphone / microphone combo jack (3.5mm) | 11. Power connector |
5. Ethernet (RJ-45) | 12. Punch out port 1* |
6. 2x USB 3.2 Gen 2 | 13. Punch out port 2* |
7. 1x USB 2.0 (with smart power-on feature) |
| PERFORMANCE | |
| Processor | Intel® Core™ i7-13700T, 16C (8P + 8E) / 24T, Max Turbo up to 4.9GHz, P-core 1.4 / 4.8GHz, E-core 1.0 / 3.6GHz, 30MB |
| Graphics | Integrated Intel® UHD Graphics 770 |
| Chipset | Intel® Q670 Chipset |
| Memory | 1x 16GB SO-DIMM DDR4-3200 |
| Memory Slots | Two DDR4 SO-DIMM slots, dual-channel capable |
| Max Memory | Up to 64GB DDR4-3200 |
| Storage | 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0 |
| Storage Support | Up to two drives, 1x 2.5″ HDD + 1x M.2 SSD • 2.5″ HDD up to 1TB • M.2 SSD up to 2TB |
| Card Reader | No card reader |
| Optical | None |
| Audio Chip | High Definition (HD) Audio, Realtek® ALC256VB codec |
| Speakers | 2Wx1 |
| Power Supply | 135W 90% Adapter |
| CONNECTIVITY | |
| Ethernet | Integrated 100/1000M |
| WLAN + Bluetooth | Realtek® Wi-Fi® 6 RTL8852BE, 802.11ax 2×2 + BT5.3 |
| Front Ports |
|
| Optional Front Ports (configured) | None |
| Rear Ports |
|
| Optional Rear Ports (configured) | None |
| Monitor Cable | None |
