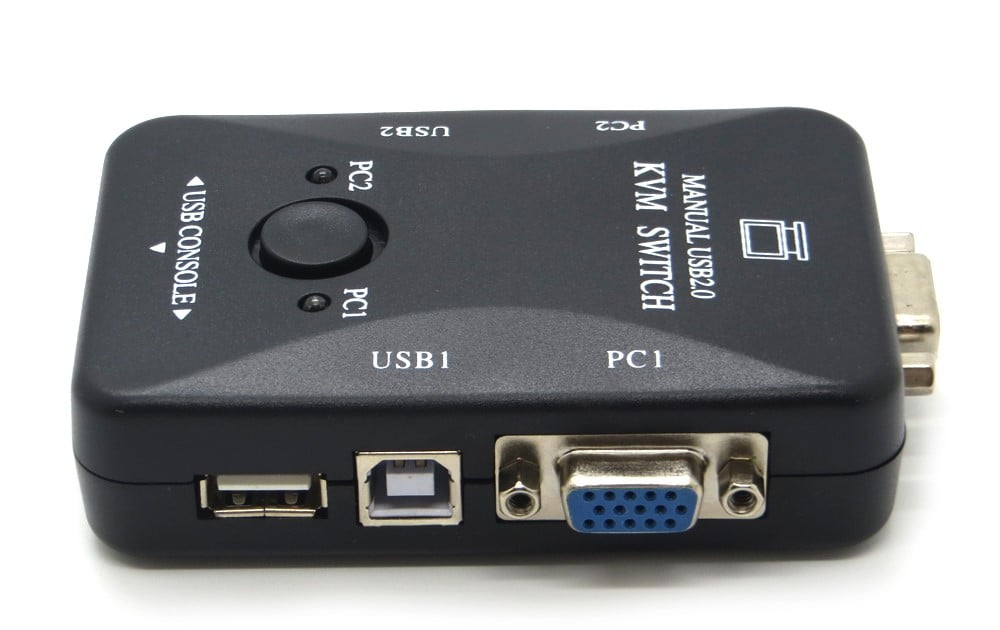

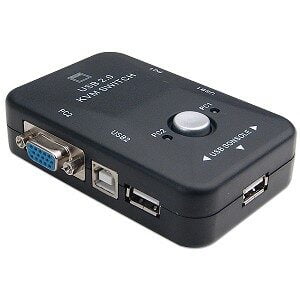

KVM Switch 2 Port Black USB Kit

KVM Switch 2 Ports

Plastic housing

2-Port KVM Switch

Control two (2) computers with one set of controls

Three (3) USB Type-A connectors

Two (2) USB Type-B connectors

Three (3) VGA ports

1920 x 1440 max VGA resolution

Bandwidth: 250 MHz

PC Selection button

LED indicators (PC1, PC2)

Hardware

Audio
Yes

Cables Included
Yes

Daisy-Chain
No

KVM Ports
2

Number of Monitors Supported
1

PC Interface
USB

PC Video Type
VGA

Rack-Mountable
No

Performance

Hot-Key Selection
Yes

IP Control
No

Maximum Analog Resolutions
1920 x 1440 @60Hz

Maximum Number of Users
1

On-Screen Display
No

Port Selection Support
Push Button and Hotkeys

Connector(s)

Console Interface(s)
1 – VGA (15 pin, High Density D-Sub) Female


2 – 3.5 mm Mini-Jack (3 Position) Female


2 – USB Type-A (4 pin) USB 2.0 Female

Host Connectors
2 – USB Mini-B (5 pin) Female


2 – VGA (15 pin, High Density D-Sub) Female

Software

OS Compatibility
OS independent; No software or drivers required

Power

Power Source
USB-Powered

Physical Characteristics

Cable Length
4 ft [1.2 m]

Color
Black

Enclosure Type
Plastic

Product Depth
2.4 in [60 mm]

Product Height
0.8 in [20 mm]

Product Weight
7.1 oz [200 g]

Product Width
3.8 in [96 mm]
