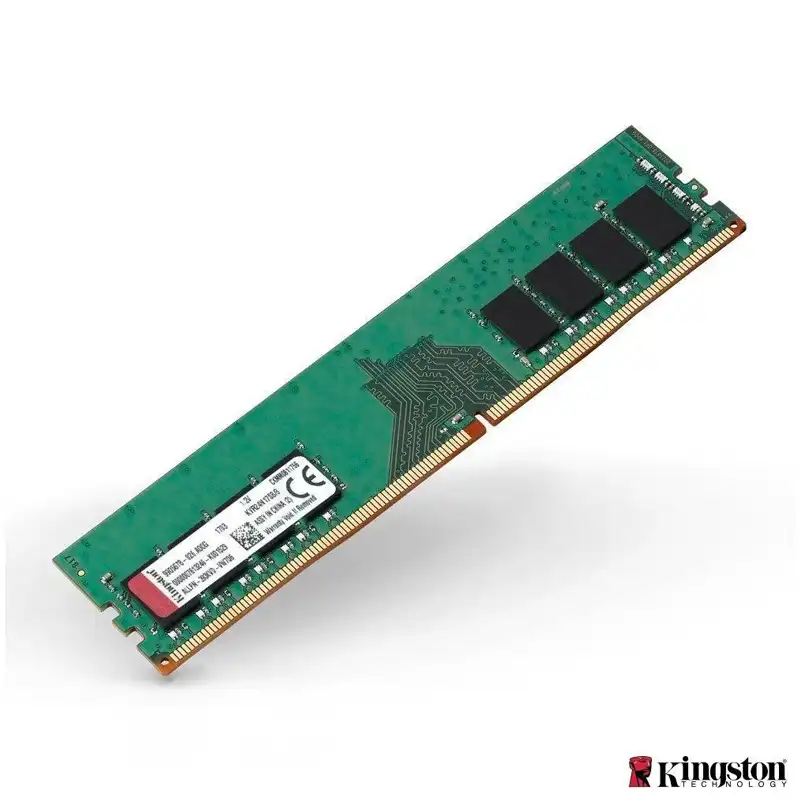

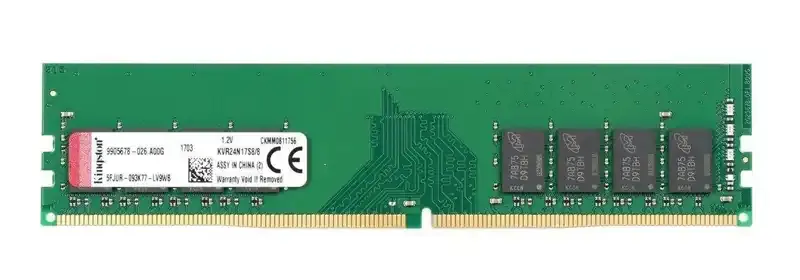

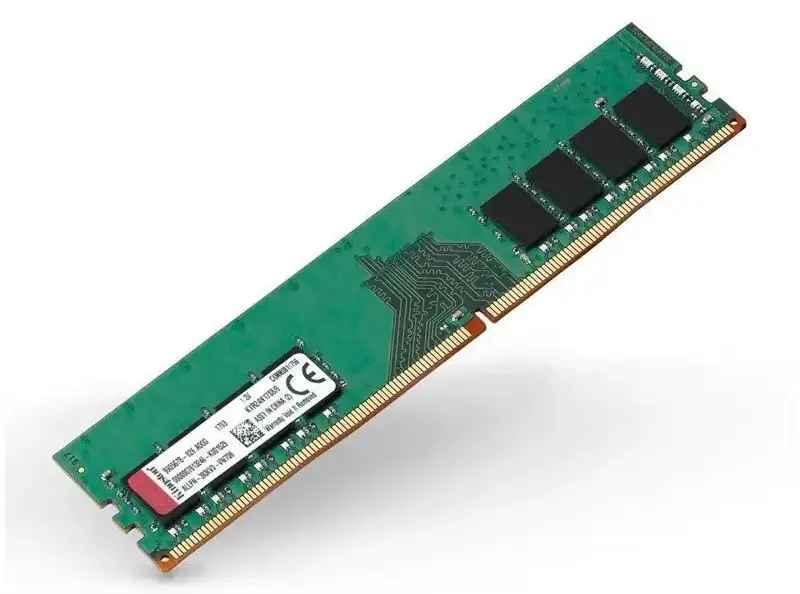

Kingston ValueRam 8GB 3200MT/s DDR4 Memory RAM KVR32N22S8/8

Kingston 8GB 3200MT/s DDR4

Kingston ValueRam 8GB 3200MT/s DDR4 Memory RAM KVR32N22S8/8

More about Kingston 8GB 3200MT/s KVR32N22S8/8

DESCRIPTION SPECIFICATIONS

8GB 1Rx8 1G x 64-Bit PC4-3200

CL22 288-Pin DIMM

FEATURES

This document describes ValueRAM’s KVR32N22S8/8 is a 1G x 64-bit
(8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8,
memory module, based on eight 1G x 8-bit FBGA components. The
SPD is programmed to JEDEC standard latency DDR4-3200 timing of
22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

specifications are as follows:

Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
