Kingston notebook RAM 8GB DDR4 { 3200Mhz speed / 22 cycles CL( IDD ) } KVR32S22S8/8

Kingston notebook RAM 8GB 3200Mhz

Kingston 8GB 3200MHz Notebook [ KVR32S22S8/8 ]

Most features:

• DDR4 – 3200Mhz speed
• 22 cycles CL( IDD )
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V

DESCRIPTION SPECIFICATIONS

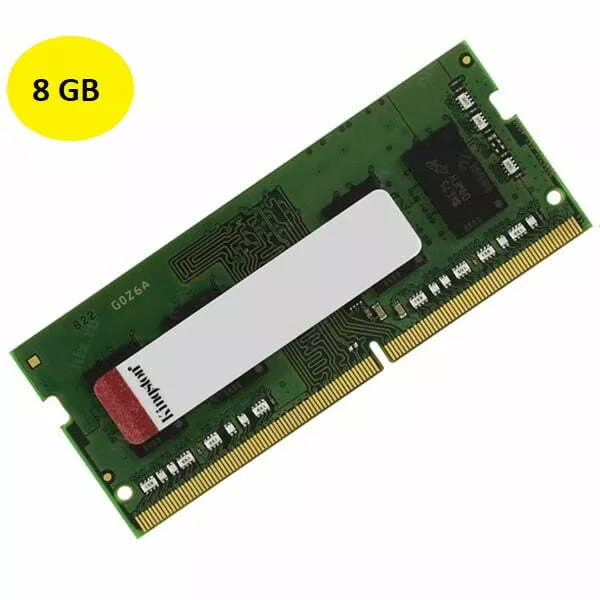

8GB 1Rx8 1G x 64-Bit PC4-3200

FEATURES

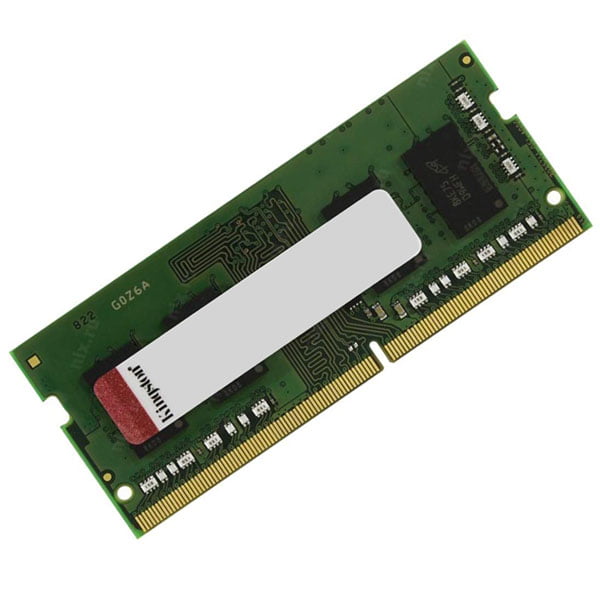

This document describes ValueRAM’s KVR32S22S8/8 is a 1G x
64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM),
1Rx8, non-ECC, memory module, based on eight 1G x 8-bit FBGA
components. The SPD is programmed to JEDEC standard latency
DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses
gold contact fingers. The electrical and mechanical specifications
are as follows:

CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
22 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
94 V – 0
0o
C to +85o
C
-55o
C to +100o
C
Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus

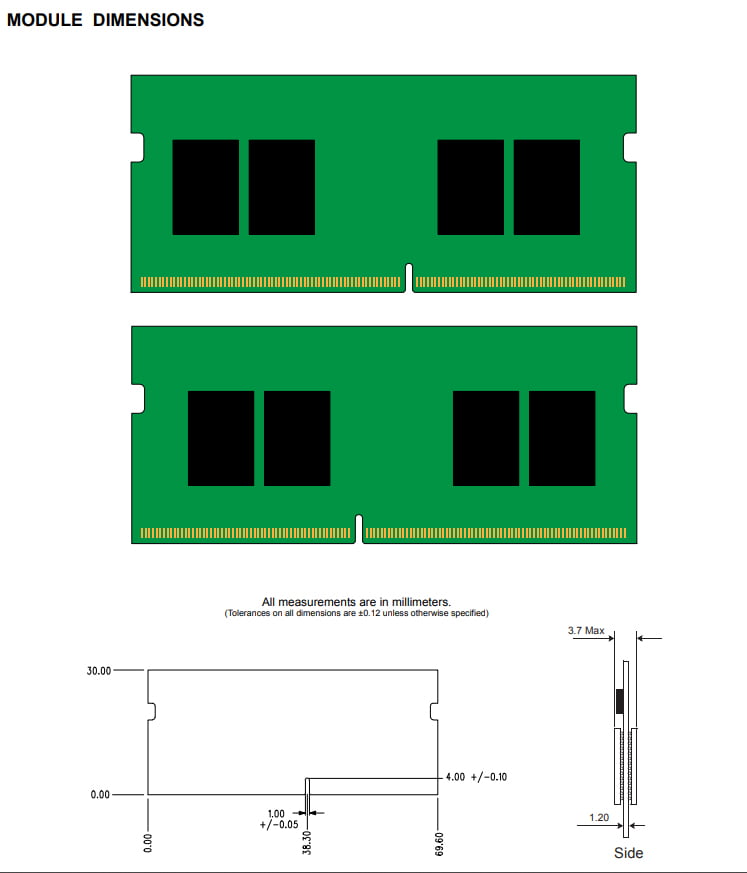

PCB: Height 1.18” (30.00mm)
RoHS Compliant and Halogen-Free
