Kingston KVR 32GB DDR5 5200MHz PC RAM – KVR52U42BD8-32

Kingston KVR 32GB DDR5

Kingston KVR 32GB DDR5 5200MHz PC RAM – KVR52U42BD8-32

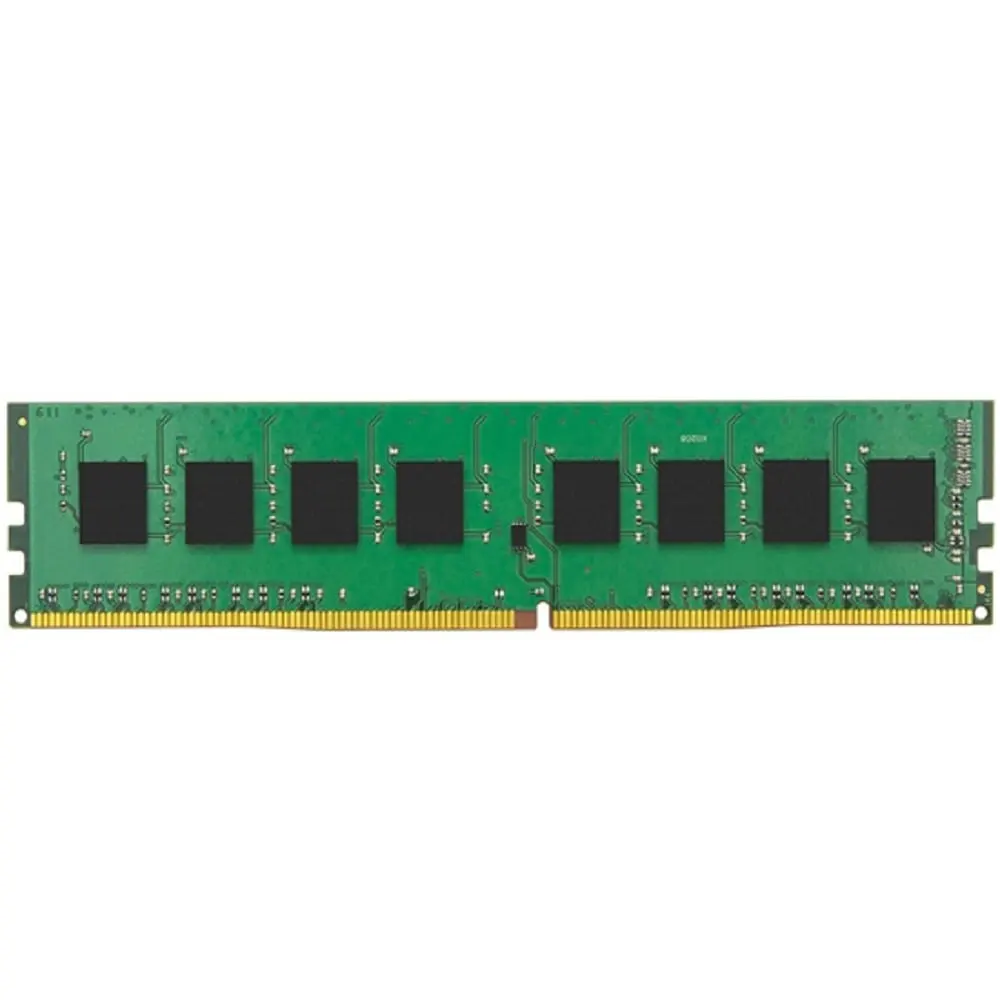

This document describes ValueRAM’s KVR52U42BD8-32 is a 4G x 64-bit (32GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5200 timing of 42-42-42 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features of Kingston KVR 32GB

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

Specifications of Kingston KVR

• Capacity: 32GB
• Speed: 5200MHz
• CL: 42 cycles
• More RAMs


Kingston FURY IS a 4G x 64-bit (32GB) DDR5-5200 CL42 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components.
