Kingston KC2500 250GB SSD PCIe NVMe M.2 2280 – [SKC2500M8/250G]
NVMe™ PCIe Gen 3.0 x 4 Lanes
XTS-AES 256-bit Encryption, TCG Opal, eDrive
3500MB/s Read, 1200MB/s Write

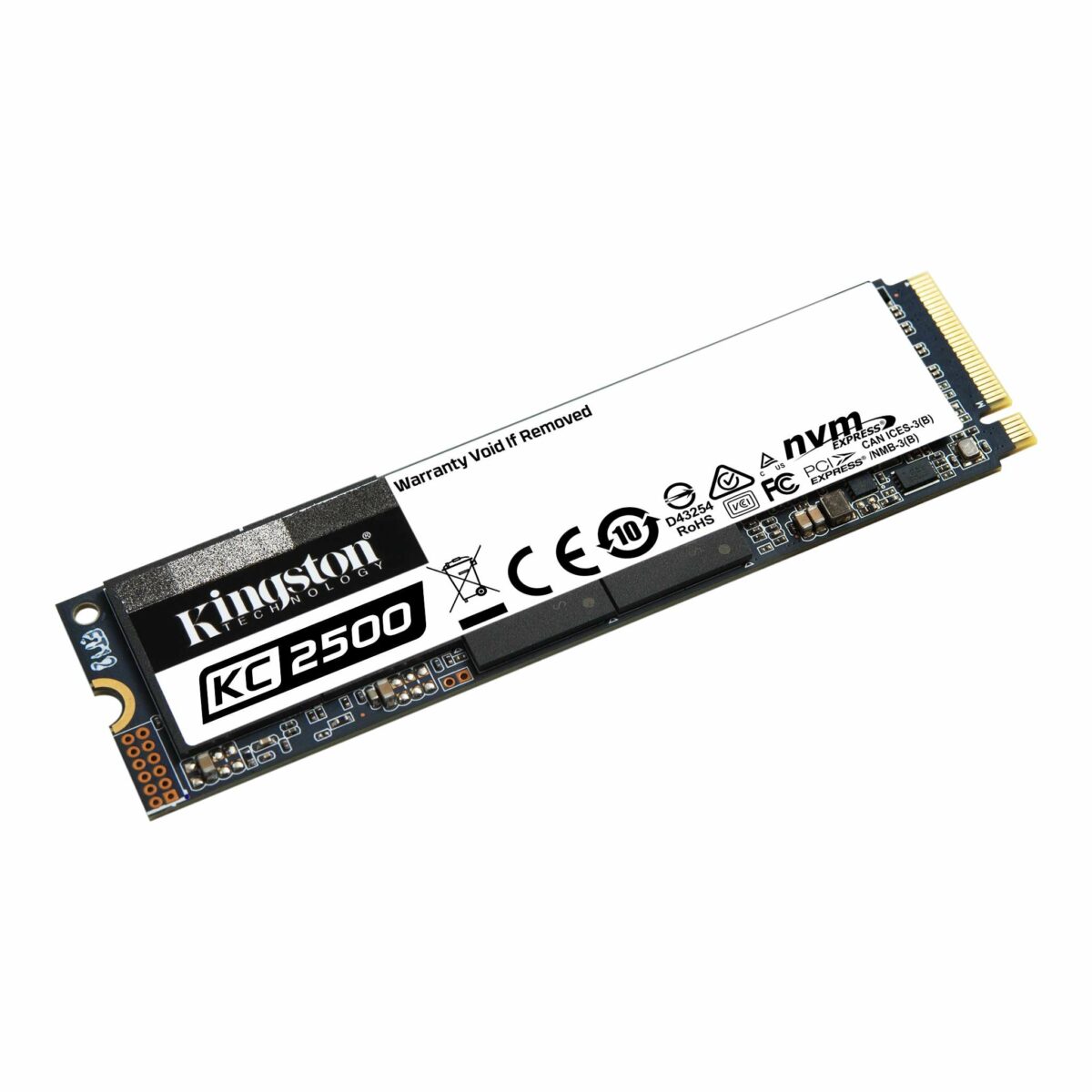

KC2500 NVMe PCIe SSD
for Desktop, Workstation, and High-Performance PCs
Kingston’s KC2500 NVMe PCIe SSD delivers powerful performance using the latest Gen 3.0 x 4 controller and 96-layer 3D TLC NAND. With read/write speeds up to 3,500/2,900MB/s1, KC2500 delivers outstanding endurance and improves the workflow in desktop, workstations, and high-performance computing (HPC) systems. The compact M.2 design gives greater flexibility, increasing storage but also saving space.
Available in capacities from 250GB–2TB to meet your system’s needs. KC2500 is a self-encrypting drive that supports end-to-end data protection using XTS-AES 256 bit Hardware-based encryption and allows the usage of independent software vendors with TCG Opal 2.0 security management solutions such as Symantec™, McAfee™, WinMagic® and others. KC2500 also has built-in Microsoft eDrive support, a security storage specification for use with BitLocker.
Incredible NVMe PCIe performance
Supports a full-security suite (TCG Opal 2.0, XTS-AES 256 bit, eDrive)
Ideal for desktop, workstations, and high-performance computing (HPC) systems
Specifications
| Form Factor | M.2 2280 |
| Interface | NVMe™ PCIe Gen 3.0 x 4 Lanes |
| Capacities | 250GB, 500GB, 1TB, 2TB |
| Controller | SMI 2262EN |
| NAND | 96-layer 3D TLC |
| Encrypted | XTS-AES 256 bit |
| Sequential Read/Write | 250GB – up to 3,500/1,200MB/s 500GB – up to 3,500/2,500MB/s 1TB – up to 3,500/2,900MB/s 2TB – up to 3,500/2,900MB/s |
| Random 4K Read/Write | 250GB – up to 375,000/300,000 IOPS 500GB – up to 375,000/300,000 IOPS 1TB – up to 375,000/300,000 IOPS 2TB – up to 375,000/300,000 IOPS |
| Total Bytes Written (TBW) | 250GB – 150TBW 500GB – 300TBW 1TB – 600TBW 2TB – 1.2PBW |
| Power Consumption | .003W Idle / .2W Avg / 2.1W (MAX) Read / 7W (MAX) Write |
| Storage Temperature | -40°C~85°C |
| Operating Temperature | 0°C~70°C |
| Dimensions | 80mm x 22mm x 3.5mm |
| Weight | 250GB – 8g 500GB – 10g 1TB – 10g 2TB – 11g |
| Vibration Operating | 2.17G Peak (7-800Hz) |
| Vibration Non-operating | 20G Peak (20-1000Hz) |
| MTBF | 2,000,000 |
| Warranty | 1-year warranty |
