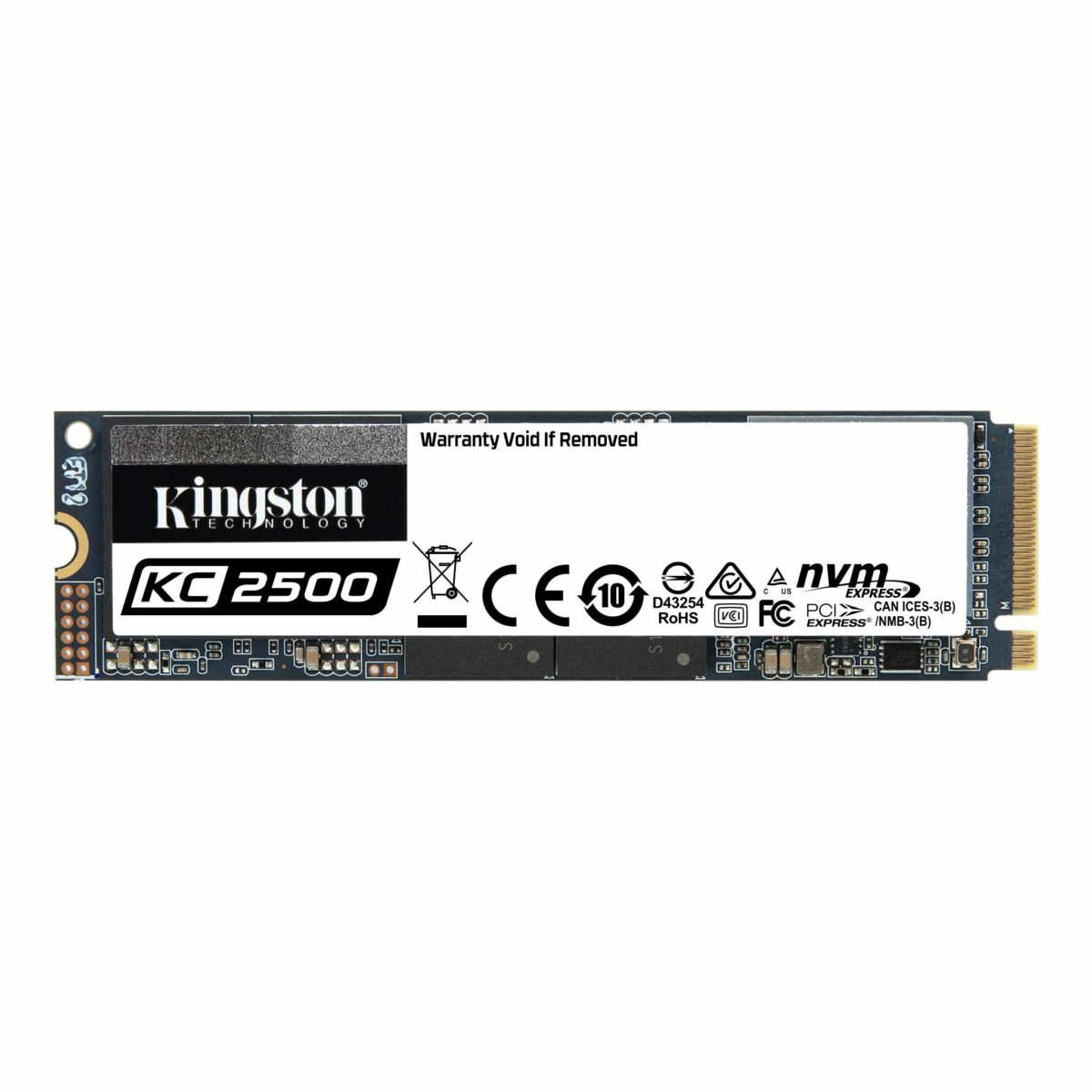

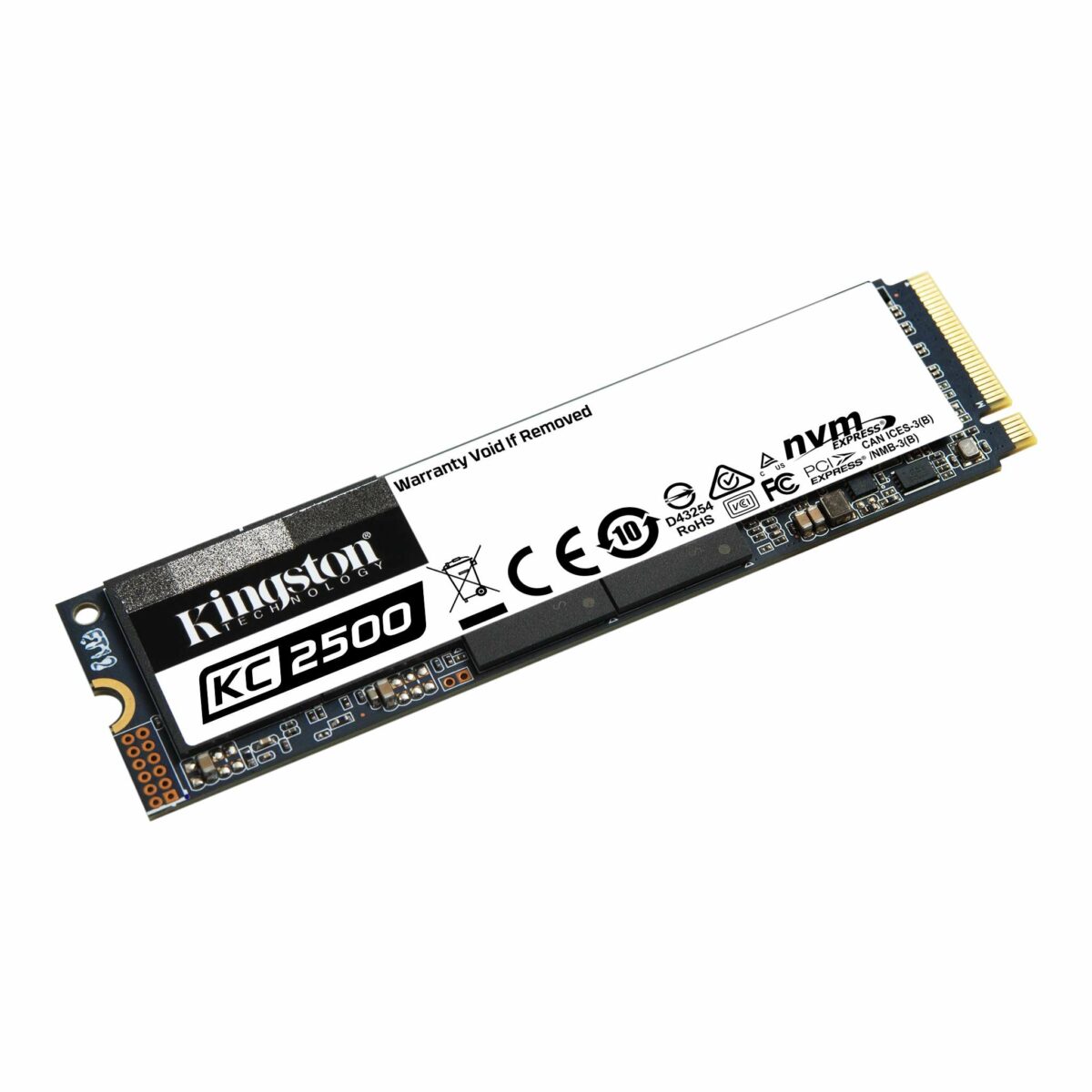

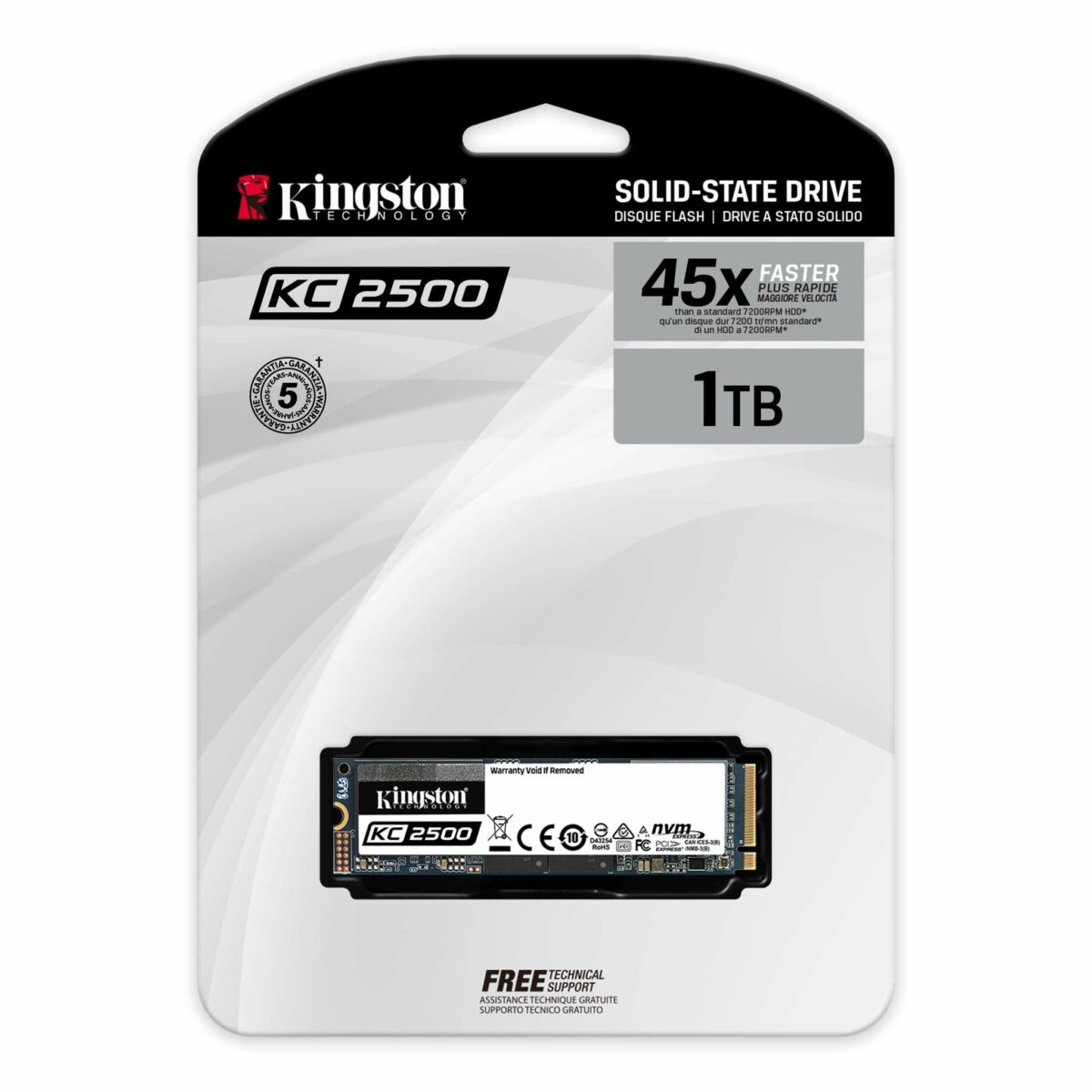

Kingston KC2500 1TB SSD PCIe NVMe M.2 2280 – [SKC2500M8/1000G]

Kingston KC2500 1TB SSD PCIe NVMe M.2 2280 – [SKC2500M8/1000G]

NVMe™ PCIe Gen 3.0 x 4 Lanes
XTS-AES 256-bit Encryption, TCG Opal, eDrive
3500MB/s Read, 2900MB/s Write

KC2500 NVMe PCIe SSD
for Desktop, Workstation, and High-Performance PCs
Kingston’s KC2500 NVMe PCIe SSD delivers powerful performance using the latest Gen 3.0 x 4 controller and 96-layer 3D TLC NAND. With read/write speeds up to 3,500/2,900MB/s1, KC2500 delivers outstanding endurance and improves the workflow in desktop, workstations, and high-performance computing (HPC) systems. The compact M.2 design gives greater flexibility, increasing storage but also saving space.

Available in capacities from 250GB–2TB to meet your system’s needs. KC2500 is a self-encrypting drive that supports end-to-end data protection using XTS-AES 256 bit Hardware-based encryption and allows the usage of independent software vendors with TCG Opal 2.0 security management solutions such as Symantec™, McAfee™, WinMagic® and others. KC2500 also has built-in Microsoft eDrive support, a security storage specification for use with BitLocker.

Incredible NVMe PCIe performance
Supports a full-security suite (TCG Opal 2.0, XTS-AES 256 bit, eDrive)
Ideal for desktop, workstations, and high-performance computing (HPC) systems

Specifications

Form Factor    M.2 2280

Interface    NVMe™ PCIe Gen 3.0 x 4 Lanes

Capacities    250GB, 500GB, 1TB, 2TB

Controller    SMI 2262EN

NAND    96-layer 3D TLC

Encrypted    XTS-AES 256 bit

Sequential Read/Write

250GB – up to 3,500/1,200MB/s
500GB – up to 3,500/2,500MB/s
1TB – up to 3,500/2,900MB/s
2TB – up to 3,500/2,900MB/s

Random 4K Read/Write

250GB – up to 375,000/300,000 IOPS
500GB – up to 375,000/300,000 IOPS
1TB – up to 375,000/300,000 IOPS
2TB – up to 375,000/300,000 IOPS

Total Bytes Written (TBW)

250GB – 150TBW
500GB – 300TBW
1TB – 600TBW
2TB – 1.2PBW

Power Consumption    .003W Idle / .2W Avg / 2.1W (MAX) Read / 7W (MAX) Write

Storage Temperature    -40°C~85°C

Operating Temperature    0°C~70°C

Dimensions    80mm x 22mm x 3.5mm

Weight

250GB – 8g
500GB – 10g
1TB – 10g
2TB – 11g

Vibration Operating    2.17G Peak (7-800Hz)

Vibration Non-operating    20G Peak (20-1000Hz)

MTBF    2,000,000
