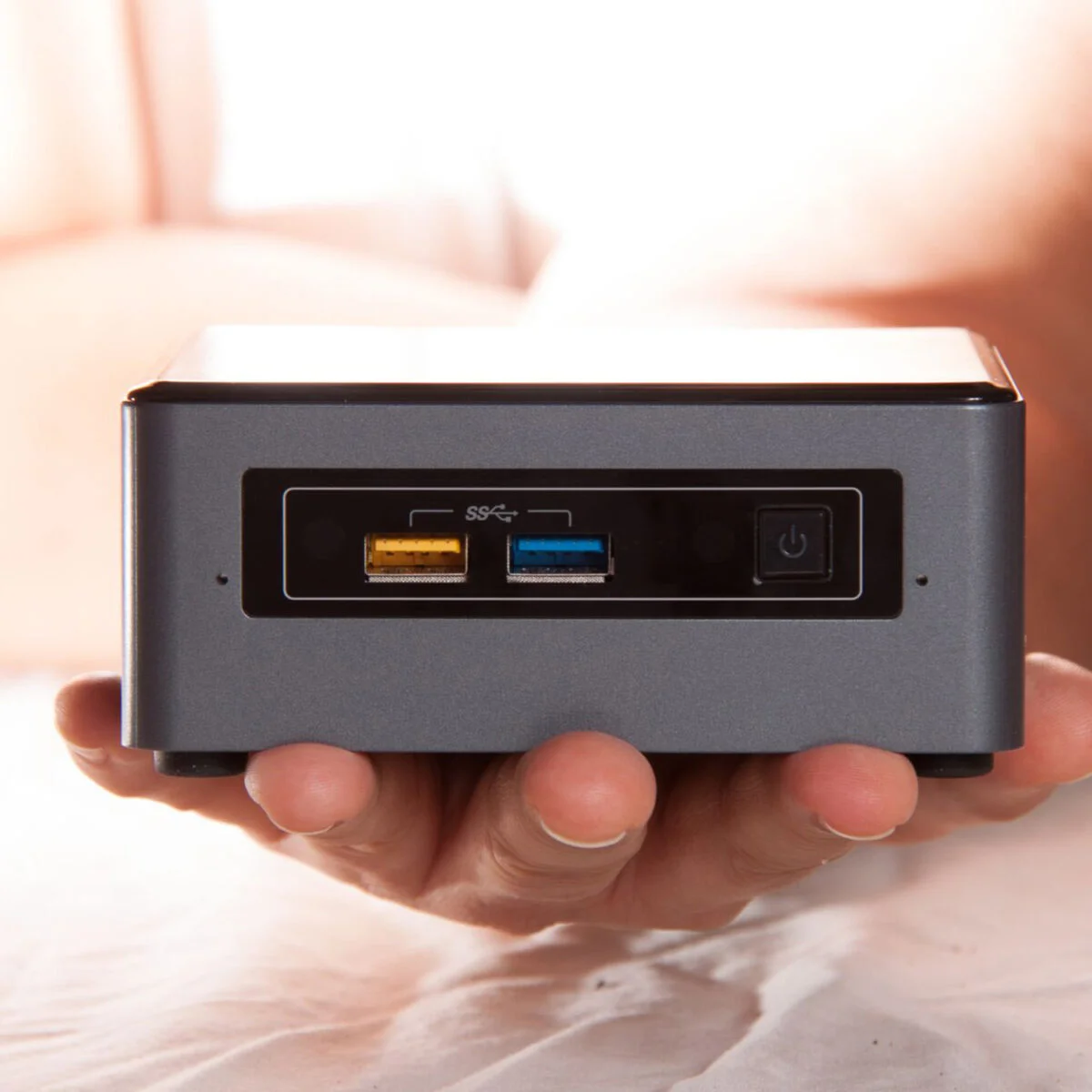

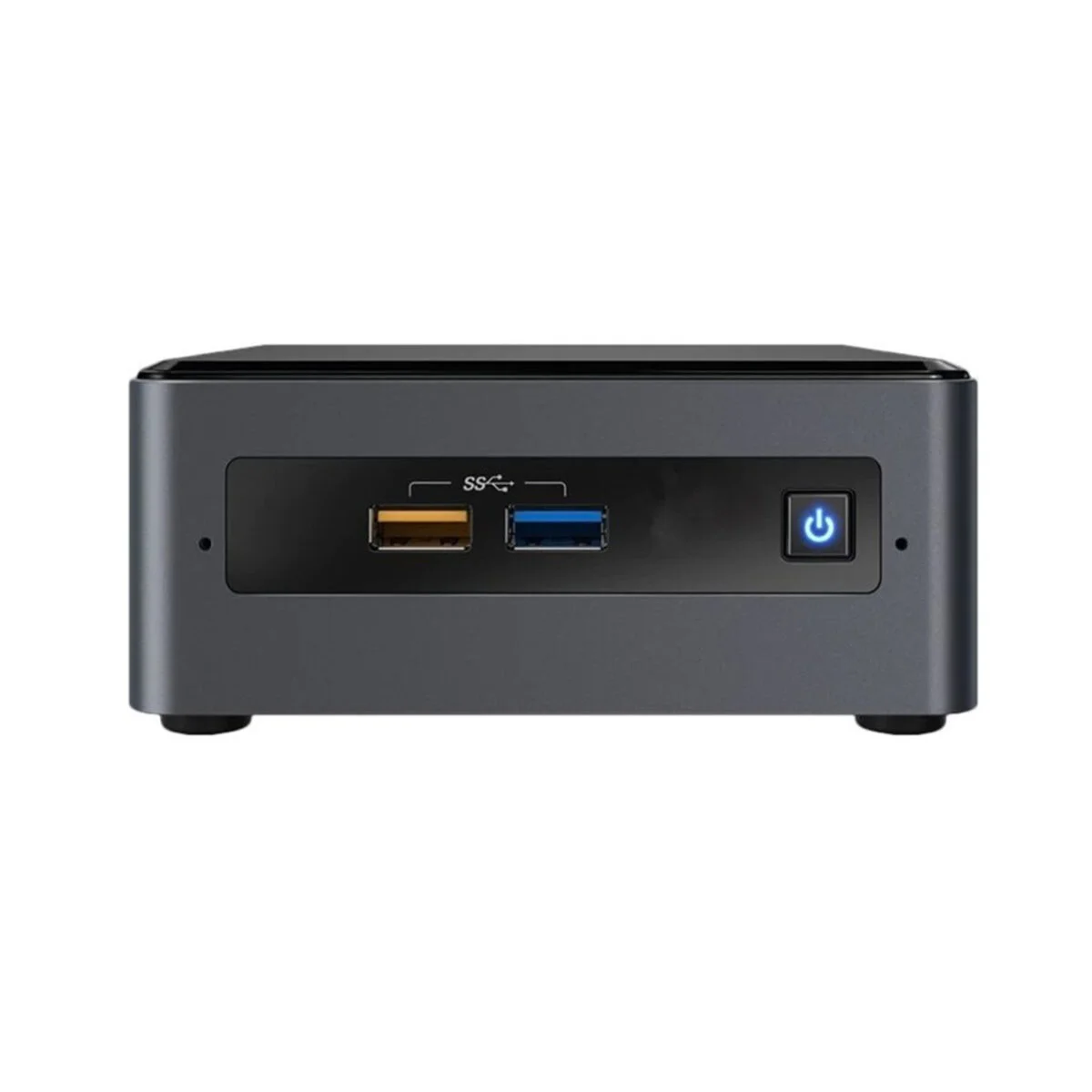

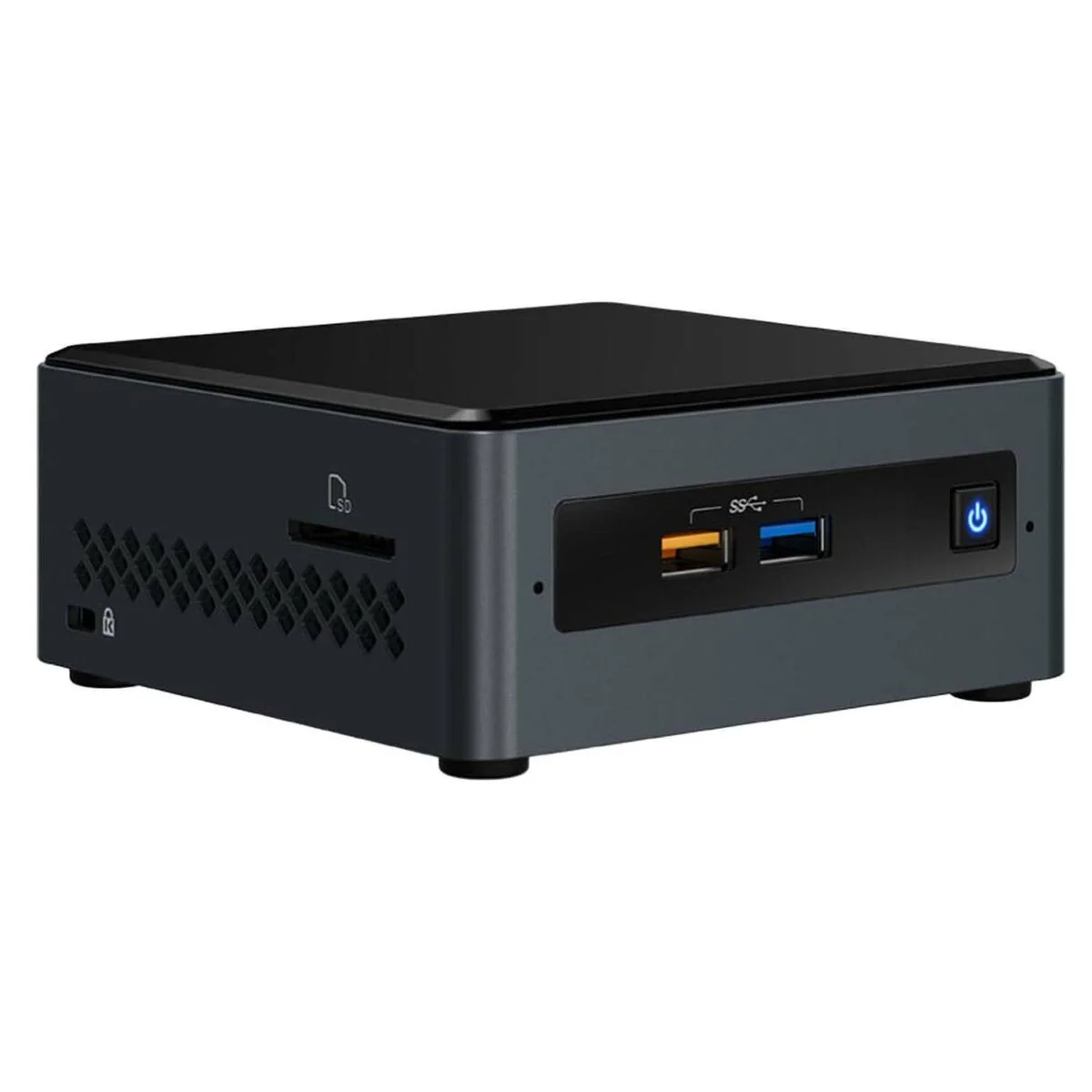

Intel NUC mini PC Bundle (NUC7CJYHN)
Specs. :
Intel Celeron J4005 up to 2.70 GHz , 4MB Cache / 4GB-2666 DDR4 RAM / 240GB SSD Storage / Wi-Fi AC / Bluetooth V 5.0 / 2x HDMI ports / 4x USB 3.0 ports / Gigabit Lan port)
* support Windows 10 / 11 (64-bit)
* Maximum Ram up to 8GB SO-DIMM
* Audio-out (3.5mm Jack) Not available
* m.2 slot Not available
Intel® NUC Kit NUC7CJYH () | |
Essentials | |
| Product Collection | Intel® NUC Kit with Intel® Celeron® Processors |
| Code Name | Products formerly JUNE CANYON |
| Status | Launched |
| Launch Date | Q1’18 |
| Supported Operating Systems | Windows 11 | 64-bit* | Windows 10 | 64-bit* |
| Board Number | NUC7JYB |
| Board Form Factor | UCFF (4″ x 4″) |
| Socket | Soldered-down BGA |
| Internal Drive Form Factor | 2.5″ Drive |
| # of Internal Drives Supported | 1 |
| Lithography | 14 nm |
| TDP | 10 W |
| DC Input Voltage Supported | 12-19 VDC |
| Processor Included | Intel® Celeron® J4005 Processor (4M Cache | up to 2.70 GHz) |
| Intel vPro® Platform Eligibility ‡ | No |
| Total Cores | 2 |
| Total Threads | 2 |
| Processor Base Frequency | 2.00 GHz |
| Supplemental Information | |
| Embedded Options Available | No |
| Description | Other features: Includes SDXC card slot | dual microphones |
| Product Brief | View now |
Memory & Storage | |
| Max Memory Size (dependent on memory type) | 8 GB |
| Memory Types | DDR4-2400 1.2V SO-DIMM |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 38.4 GB/s |
| Max # of DIMMs | 2 |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Integrated Graphics ‡ | Yes |
| Graphics Output | 2x HDMI 2.0a |
| # of Displays Supported ‡ | 2 |
| Expansion Options | |
| Removable Memory Card Slot | SDXC with UHS-I support |
I/O Specifications | |
| # of USB Ports | 6 |
| USB Configuration | 2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers |
| USB Revision | 2.0 | 3.0 |
| USB 2.0 Configuration (External + Internal) | 0 + 2 |
| USB 3.0 Configuration (External + Internal) | 2B 2F + 0 |
| Total # of SATA Ports | 1 |
| Max # of SATA 6.0 Gb/s Ports | 1 |
| RAID Configuration | N/A |
| Audio (back channel + front channel) | 7.1 digital; L+R+mic (F); L+R+TOSLINK (R) |
| Integrated LAN | Realtek 8111H-CG |
| Integrated Wireless‡ | Intel® Wireless-AC 9462 + Bluetooth 5.0 |
| Integrated Bluetooth | Yes |
| Consumer Infrared Rx Sensor | Yes |
| S/PDIF Out Connector | TOSLINK |
| Additional Headers | CEC | 2x USB2.0 | AUX_PWR | FRONT_PANEL |
Package Specifications | |
| Chassis Dimensions | 115 x 111 x 51mm |
Advanced Technologies | |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel vPro® Platform Eligibility ‡ | No |
| TPM | No |
| Intel® HD Audio Technology | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
Security & Reliability | |
| Intel® AES New Instructions | Yes |
For more Information about this product visit official website of Intel
