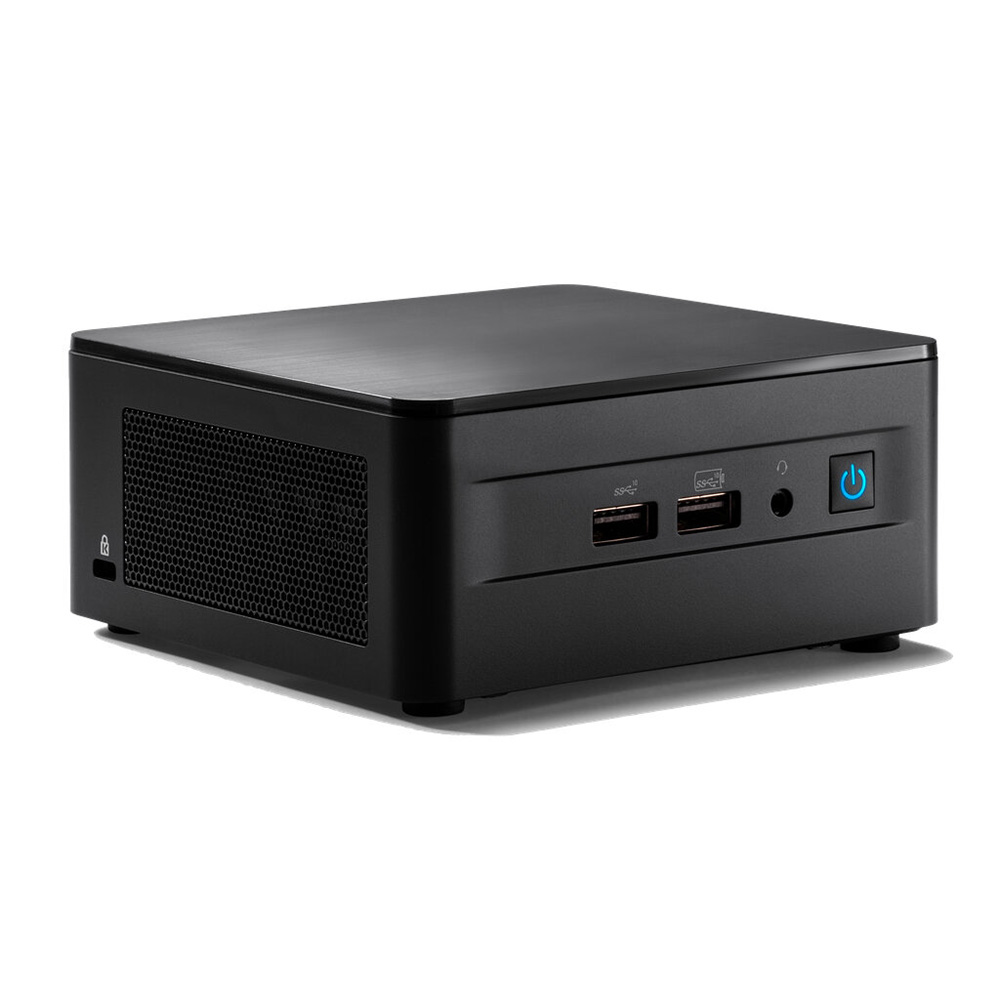

Intel® NUC 12 Pro kit 2022 Bundle
(i5-1240P / 8GB DDR4-3200 RAM / Kingston NV2 500GB SSD / Intel® Iris® Xe Graphics / DOS)
[ RNUC12WSHi50002 ]
![Intel® NUC 12 Pro kit 2022 Bundle (i3-1220P / 8GB DDR4-3200 RAM / Kingston NV2 500GB SSD / Intel® UHD Graphics / DOS) [ RNUC12WSHi30002 ]](https://pccircle.com/wp-content/uploads/2023/06/NUC-12-Pro-Kit.jpg)
Specifications
| Essentials | |
| Product Collection | Intel® NUC Kit with 12th Generation Intel® Core™ Processors |
| Code Name | Products formerly Wall Street Canyon |
| Processor Included | Intel® Core™ i5-1240P Processor (12M Cache | up to 4.40 GHz) |
| Board Number | NUC12WSBi5 |
| Supported Operating Systems | Windows 11 Home* | Windows 11 Pro* | Windows 10 Home* | Windows 10 IoT Enterprise* | Windows 10 Pro* | Red Hat Linux* | Ubuntu 20.04 LTS* |
| CPU Specifications | |
| Total Cores | 12 |
| Total Threads | 16 |
| Max Turbo Frequency | 4.40 GHz |
| Memory & Storage | |
| Memory Size | 1 x Kingston 8GB DDR4 3200MT/s (PC4-3200) |
| Storage Size | 1 x Kingston 500GB NV2 PCIe 4.0 NVMe SSD |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of Memory Slots | 2 |
| Memory Types | DDR4-3200 1.2V SODIMMs |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | No |
| # of Internal Drives Supported | 3 |
| M.2 Card Slot (storage) | 22×80 NVMe (M); 22×42 SATA (B) |
| I/O Specifications | |
| Graphics Output | 2x HDMI 2.1 TMDS Compatible | 2x DP 1.4a via Type C |
| # of Displays Supported | 4 |
| # of Thunderbolt™ Ports | 2x Thunderbolt™ 4 |
| # of USB Ports | 4 |
| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C) | 1x USB 3.2 | 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22×42 (pins) | 2x USB 2.0 (headers) |
| Total # of SATA Ports | 1 |
| Serial Port via Internal Header | No |
| Audio (back channel + front channel) | Front panel: 3.5mm headphone/mic jack |
| Integrated LAN | Intel® Ethernet Controller i225-V |
| Wireless Included | Intel® Wi-Fi 6E AX211 (Gig+) |
| Bluetooth Version | 5.3 |
| M.2 Card Slot (wireless) | 22×30 (E) |
| Additional Headers | Front_panel (PWR | RST | 5V | 5Vsby | 3.3Vsby); Internal 2×2 power connector |
| Expansion Options | |
| PCI Express Revision | Gen 4 (m.2 22×80 slot); Gen 3 (otherwise) |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22×80 (key M) PCIe x1 Gen 3: M.2 22×42 (key B) PCIe x1: M.2 22×30 (key E) |
| Package Specifications | |
| TDP | 35 W |
| DC Input Voltage Supported | 12-20 VDC |
| Chassis Dimensions | 117 x 112 x 54 [mm] (LxWxH) |
| Board Form Factor | UCFF (4″ x 4″) |
| Advanced Technologies | |
| Intel® HD Audio Technology | Yes |
| Intel® Optane™ Memory Supported | No |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Security & Reliability | |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® ME Firmware Version | 16 |
| Intel® AES New Instructions | Yes |
For More Info. Click Here
For More Intel Product Click Here
