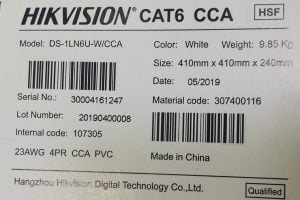

HIKVISION CAT6 305m Network Cable [ DS-1LN6U-W/CCA ]
UTP CAT 6 Network Cable
Color : White
HIKVISION CAT6 UTP CABLE 305M PVC
Hikvision Cat6 Lan Cable DS-1LN6-UU Lan Cable solid cable is used for computer networking, data, voice, or security system installation.
U/UTP 4Pairs cable-category 6- PVC Sheath
Product properties
Category
Category
CAT. 6 CCA U/UTP 4x2x23AWG/1 PVC
Conductor
Material
CCA(Copper content: 27%)
Nom.O.D.(mm)
0.585±0.01
Insulation
Material
Solid HDPE
Diameter
1.05±0.05mm
Sheath
Thickness
0.50±0.05 mm
External O.D.
6.0±0.30 mm
Surface
Clean, Frap, Satiation
Material
PVC(complies RoHS)
Color
White RAL9003
Surface Printing
Letter height
2.5±0.2mm
Color
Black
Print error & Space
≤±0.5%, 1m
Other Properties
Core Color
1 Blue & White/ Blue
2 Orange & White/ Orange
3 Green & White/ Green
4 Brown & White/ Brown
Packing
Carton
Carton dimension
42x42x24cm
Packing length
(305±1.5)m
Electrical Characteristics (20℃)
1.0-100.0MHz Impedance(Ω) 100±15
100 – 250MHz Impedance(Ω) 100±25
1.0-100.0MHz Delay Shew (ns/100m) ≤45
DC ResistanceΩ/100m) max 12
DC Conductor Resistance Unbalance(%) max 2
Ambient temperature
-20℃ – 70℃
