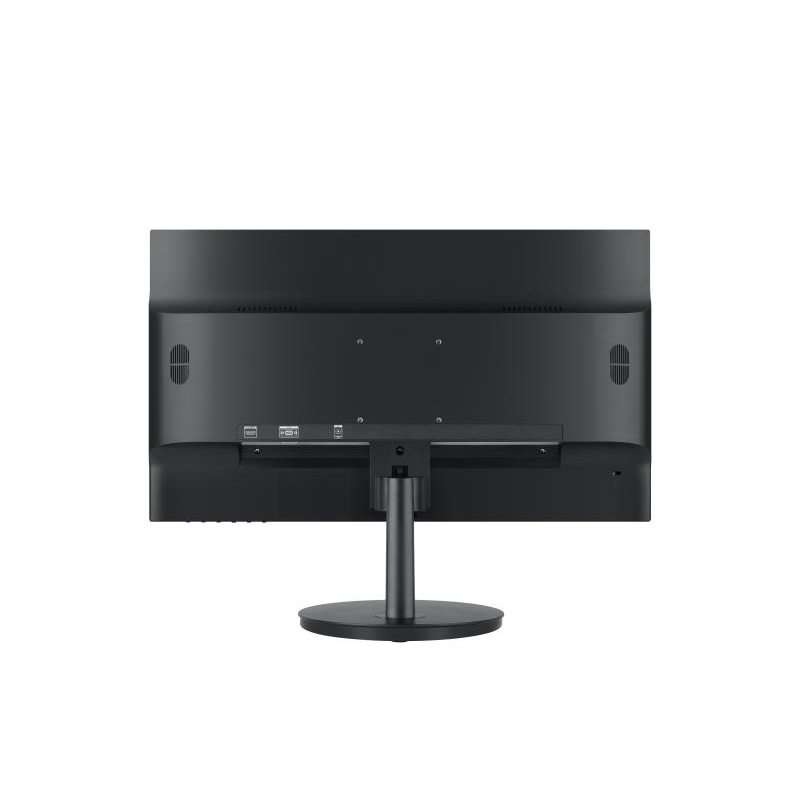

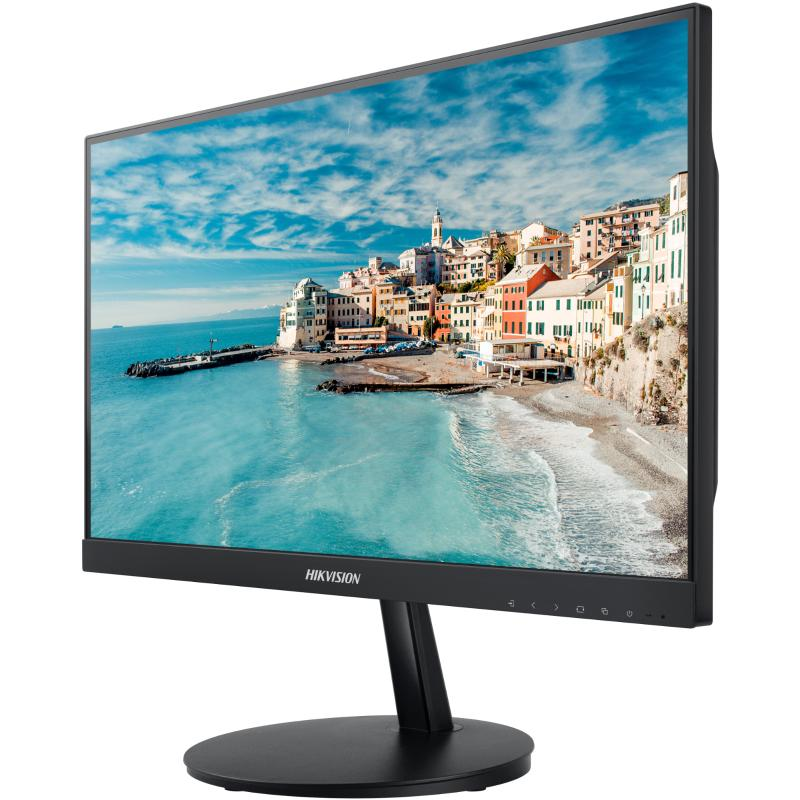

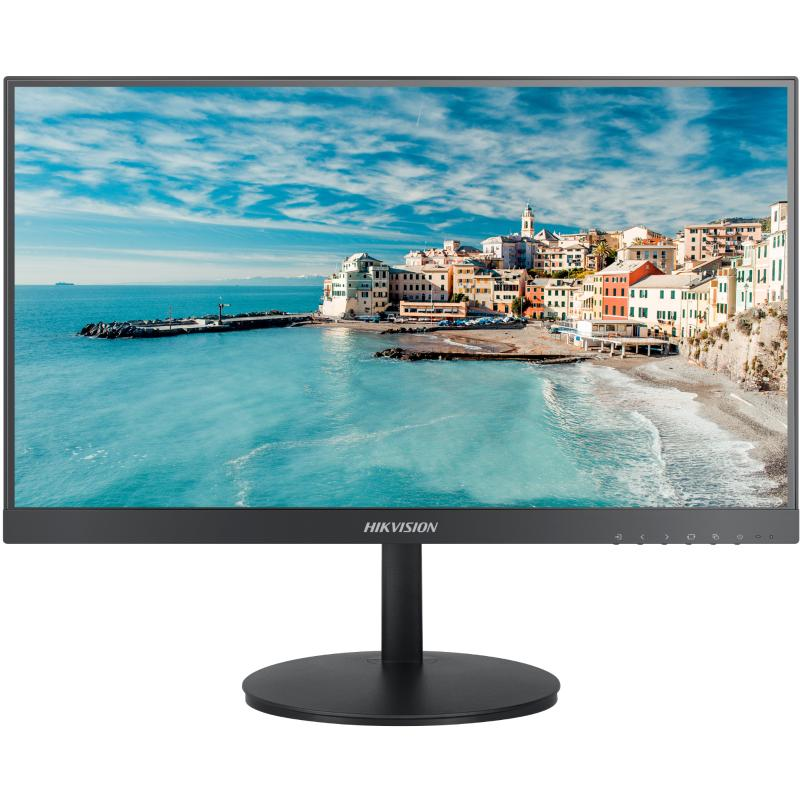

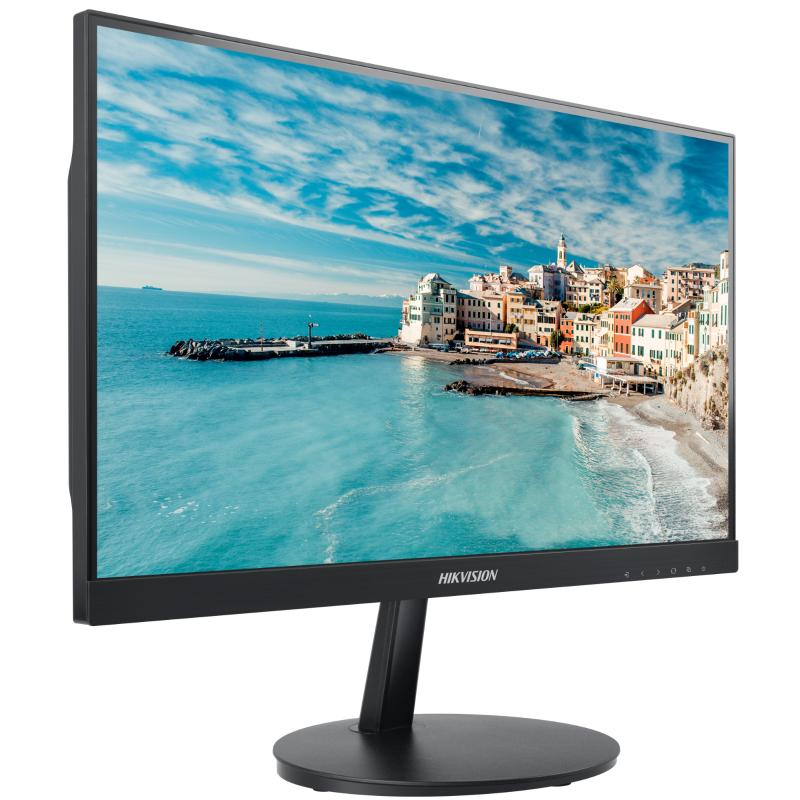

HIKVISION 21.5″ FHD Monitor
HIKVISION 21.5″ FHD Monitor (DS-D5022FN00)
Ultra-thin device body with ultra-thin border for 3 sides.
8 bit LVDS HD (1920 × 1080) display.
178° ultra-wide view screen.
3D noise reduction.
Low blue light design for eye care.
Dual interface of HDMI and VGA.
Support VESA wall mount.
Display
- Screen Size21.5 inch
- Active Display Area478.656 mm × 260.280 mm
- Resolution1920 × 1080@60 Hz
- BacklightE-LED
- Pixel Pitch0.0831 mm (H) × 0.241 mm (V)
- Brightness250 cd/m²
- Viewing Angle178° (H) / 178° (V)
- Color Depth8 bit
- Contrast Ratio3000 : 1
- Response Time6.5 ms
- Refresh RateMax. 75Hz , Typ. 60 Hz
- HazeHaze 25%, 3H
- Reliability7 × 16 H
- Color Gamut72% NTSC
Interface
- Video & Audio InputHDMI 1.4 × 1, VGA × 1
- Video & Audio OutputNone
- Data Transmission InterfaceNone
- Control InterfaceNone
Power
- Power SupplyDC 12V, 2.0A
- Power Consumption≤ 24 W
- Standby Consumption≤ 0.5 W
General
- Casing MaterialPlastic
- VESA75 mm × 75 mm (4 – M4 × 6 mm)
- Bezel Width6.85 mm (top/left/right), 21.55 mm (bottom)
- Product Dimensions (W × H × D)492.4mm(W)× 390.1mm(H)× 200.2mm(D)mm
- Package Dimensions (W × H × D)599mm(W)x 393mm(H)x 109 mm(D)
- Net Weight2.08 ± 0.5 kg
- Gross Weight3.4 ± 0.5 kg
- Packing ListMonitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
- RemarksIf the appearance and parameters in this specification vary from the actual product, the later prevails. You can also consult local sale staff.
Working Environment
- Working Temperature0℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH (Non-Condensing)
- Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity0% to 90% RH
