HP 103AD Dual Pack Black Original Neverstop Laser Toner Reload Kit [W1103AD] 14.95  JOD
NO BRAND

HDMI Extender over Network Cable (up to 120m)

39.00  JOD

Add 30.00  JOD to cart and get free shipping!

Out of stock

Compare
Add to wishlist
SKU: 3600708 Categories: Cables & Adapters, Display, Network
Share:
  • Description
  • Additional information
  • Reviews (0)
Description

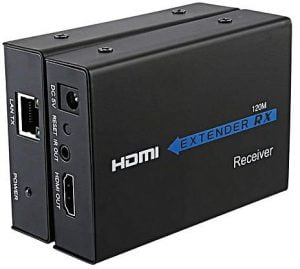

HDMI Extender over Network Cable (up to 120m)

Brief Introduction:

The IR HDMI Extender extends your HDMI  display up to 120 m away from your HDMI source using two Cat-5e/6 cable.This will not only break HDMI cable distance limitations, also the Cat-5e/6 cable installation more flexible and convenient.

The DK168-100M use digital video transmission technology,without delay,the image is clear and strong anti-interference to give you the picture perfect viewing experience you desire.

Note:In order to achieve perfect transmission effect and long distance, please use Cat-5e/6 cable

Features:

Extend HDMI signal by one Cat-5e/6

A complete module,do not need to install

Implements long distance transmission by CAT-5e/6 instead of HDMI cable

HDCP compatible

Extends the distance up to 120m,1080P using Cat-5e/6 cable

Small size

The double transmission speed up to 2.5Gbps,supports 1080p display

Uses Cat 5e cable to connect the local and remote units

Extends the distance between HDMI source and HDMI display

Superior video quality – 1920 x 1200, up to 1080p

HDMI (3D, Deep Color); HDCP Compatible

Supports Dolby True HD and DTS HD Master Audio

DDC compatible
​
Wireless IR Remote

Detail Specification

IR hdmi extender 120m over TCP IP 1080p

Video Input
Interface
1 x HDMI Type A Female (Black)

Impedance
100 Ω

Video Output
Interface
1 x HDMI Type A Female (Black)

Impedance
100 Ω

Video
Max. Data Rate

Max. Pixel Clock
225 MHz

Compliance
HDMI (3D, Deep Color)

HDCP
Compatible

Max resolutions / Distance
Up to 1080p@120m

Power
Connector: 1 x DC Jack

DC5V (EU,US,UK standard to select)

Environment
Operating Temp.
0-50°C

Storage Temp.
-20 – 60°C

Humidity
0-80% RH, Non-Condensing

physical properties
Housing
Metal

Weight
0.42kg

Dimensions(L x W x H)
116x78x30mm

Carton Lot
25 pcs

package
1*User Manual,2*power adapter,1*IR receiver extender cable, 1*IR sender extender cable
