EVGA 750 B5, 80 Plus BRONZE 750W, Fully Modular, EVGA ECO Mode, Compact 150mm Size, Power Supply – [220-B5-0750-V1]

EVGA 750 B5, 80 Plus BRONZE 750W, Fully Modular, EVGA ECO Mode, Compact 150mm Size, Power Supply – [220-B5-0750-V1]

CABLE LENGTH

ATX Cable
1x 600mm (m)

EPS Cable
2x 600mm (m)

PCIe Cable
2x 550mm, 700mm (m)

SATA Cable
2x 500mm, 600mm, 700mm (m)

Four-Pin Peripheral Cable
1x 500mm, 600mm, 700mm (m)

Floppy Adapter
1x Molex to FDD Adapter

AC Power
1x 1500mm (m)

Modular Cable Type
Full

Molex to FDD
1x

CONNECTOR QUANTITY

24 Pin ATX
1x 24pin (20+4)

EPS (CPU)
2x 8pin (4+4)

PCIe
4x 8pin (6+2)

SATA
6x

Four-Pin Peripheral
3x

Floppy
1x

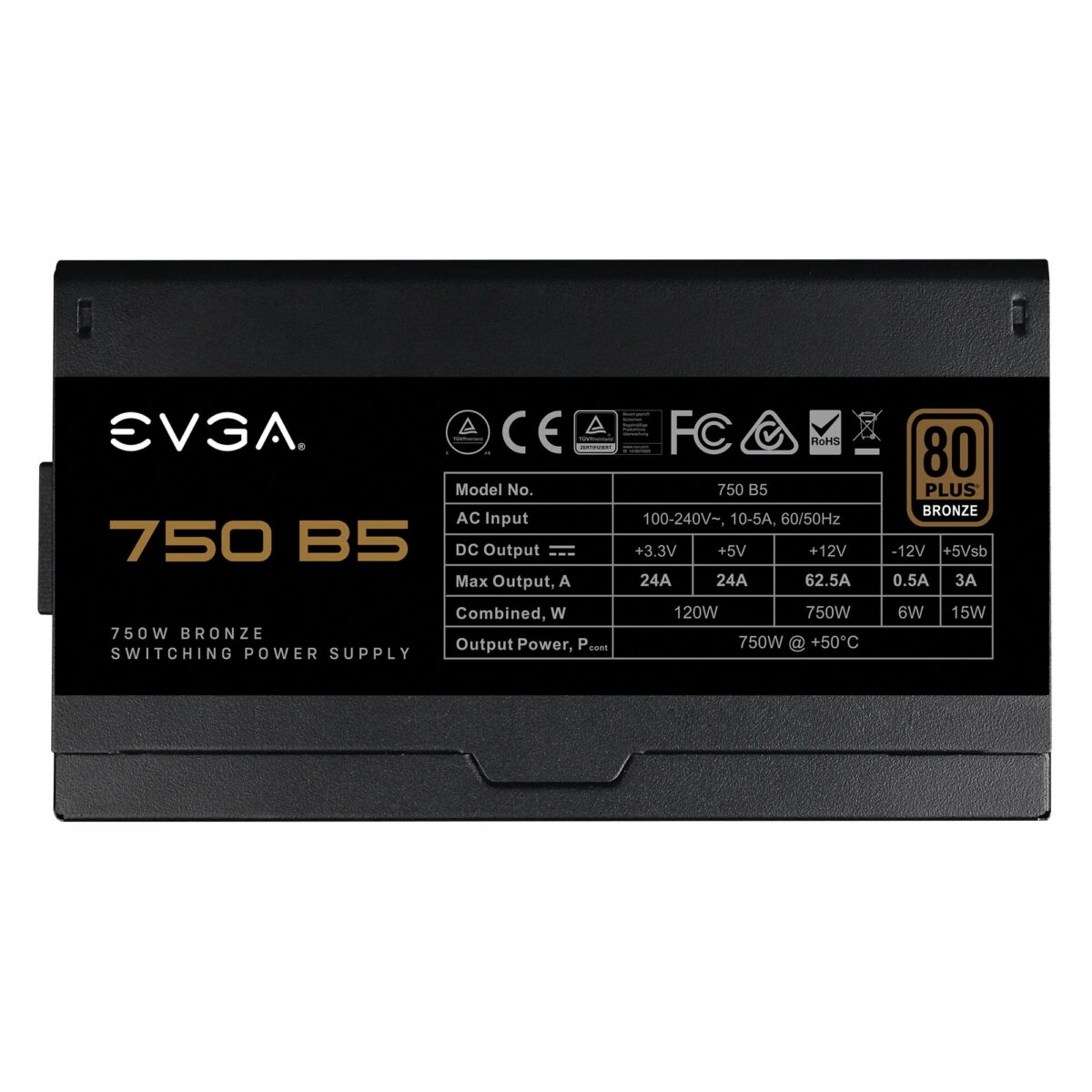

POWER SPECS

AC Input
100-240V~, 10-5A, 60/50Hz

Rail
+3.3V
+5V
+12V
+5Vsb
-12V

Max Output
24A
24A
62.5A
3.0A
0.5A

750W

120W
750W
15W
6W

Total
750W

ADDITIONAL DETAILS

Operating Temperature
0° to 50° C

Japanese Capacitors
100%

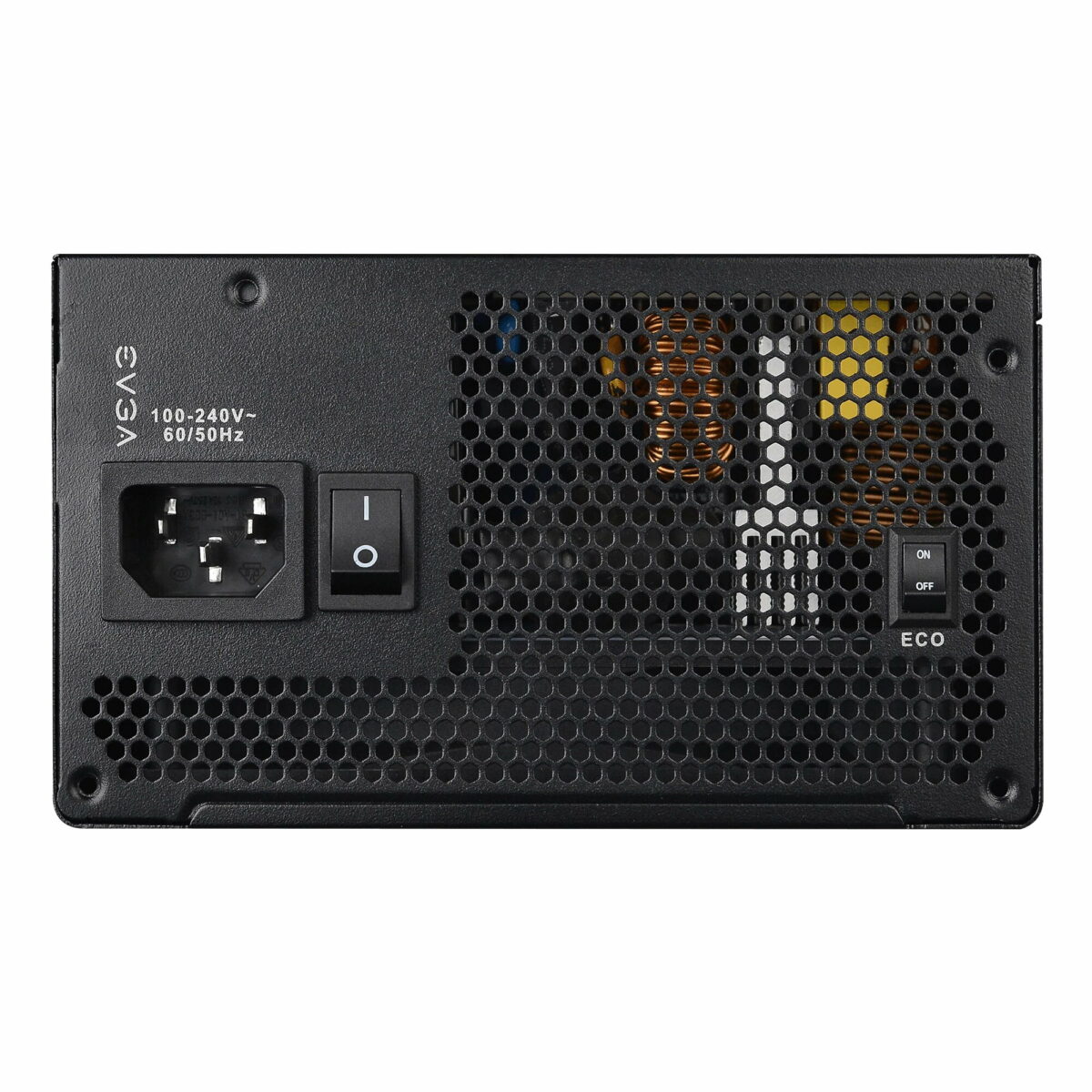

ECO Mode
Yes

MTBF
100,000 Hours

Net Weight
5 lbs

Size
86mm (H) x 150mm (W) x 150mm (L)

Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement

Fan Size / Bearing
135mm Fluid Dynamic Bearing
