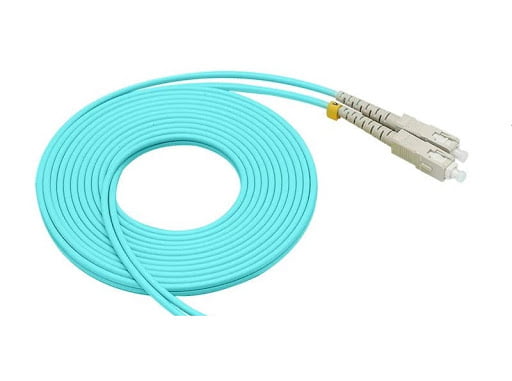

D-Link Optic Fiber SC-SC MM Duplex OM3 (3m) Patch Cord

D-Link Optic Fiber SC-SC MM Duplex OM3 (3m) Patch Cord

Optic Fiber Patch Cord

D-Link patch cords are available with full standard optical specifications, precise length tolerances. All assemblies are 100% inspected for optical characteristics and fiber end face finish.

The optical fiber patch cords are suitable for data communication, telecommunication applications. The terminated connectors in assemblies are designed to and are compatible with industry standards (EIA/TIA, IEC, ANSI, NTT and Telcordia). D-Link can deliver customized patch cords as per requirement .

Features

# Adopts high precision ceramic ferrule with good concentricity

# Good geometrical characteristics of apex offset & radius of curvature & fiber height

# Compact & strong crimping offers exceptional tensile strength in cable assemblies

# 100% inspected for optical characteristics & fiber endface finish

# Low insertion loss & return loss, clean and scratch-free end faces

# Good performance endurance under changing circumstances

Specifications

Connector Type

SC / ST / FC / LC / MTRJ

Optical Fiber

Corning single-mode G652D,G657A,G657B

Cable Type

PVC & LSZH on request

0.9mm/2.0mm/3.0mm Simplex & duplex

Cable Color, Length

Yellow for simplex & Orange for Multi-mode & Aqua for OM3

1m // 2m & 3m .Other lengths on request

Optical Specification

Typical

≤0.2dB // Max. 0.3dB

MTRJ

Max. 0.5dB

Return Loss

>PC≥45dB // UPC≥50 dB // APC≥60dB

Mechanical Specification

Connector Ferrule

Ceramic, (MTRJ: PS- Polyphenylene Sulphide )

Apex Offset

＜50um

Fiber Height

±100nm
