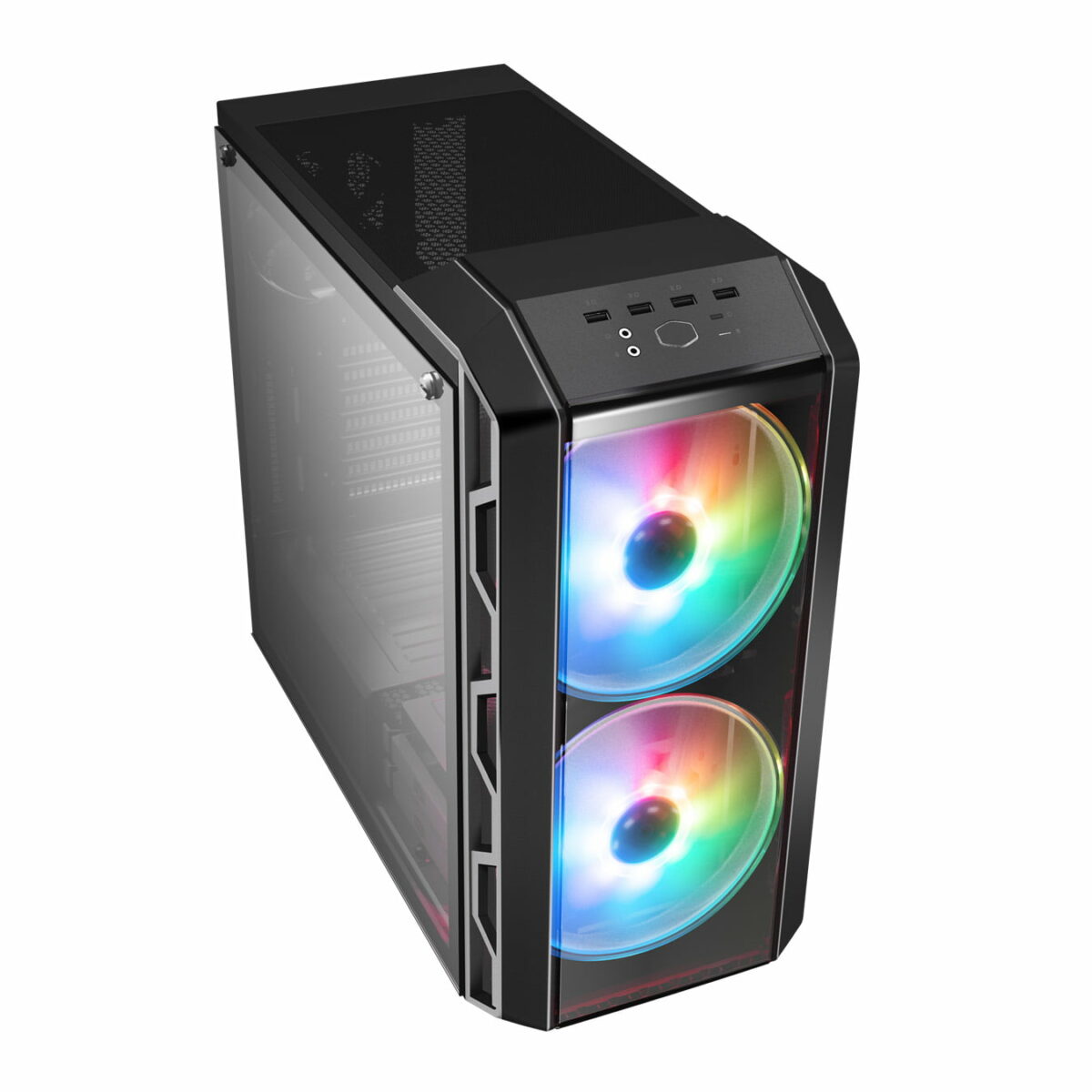

Cooler Master MASTERCASE H500 ARGB (Mid Tower // Tempered Glass Side) [MCM-H500-IGNN-S01]

Cooler Master MASTERCASE H500 ARGB (Mid Tower // Tempered Glass Side) [MCM-H500-IGNN-S01]

OVERVIEW

PERFORMANCE COMES IN PAIRS

Two front panels, two 200mm ARGB fans, and a handle to grip onto when the adrenaline kicks in. The MasterCase H500 is established as the go-to chassis for high performance airflow. Now, with 200mm ARGB fans, its legacy is upgraded with premium lighting.

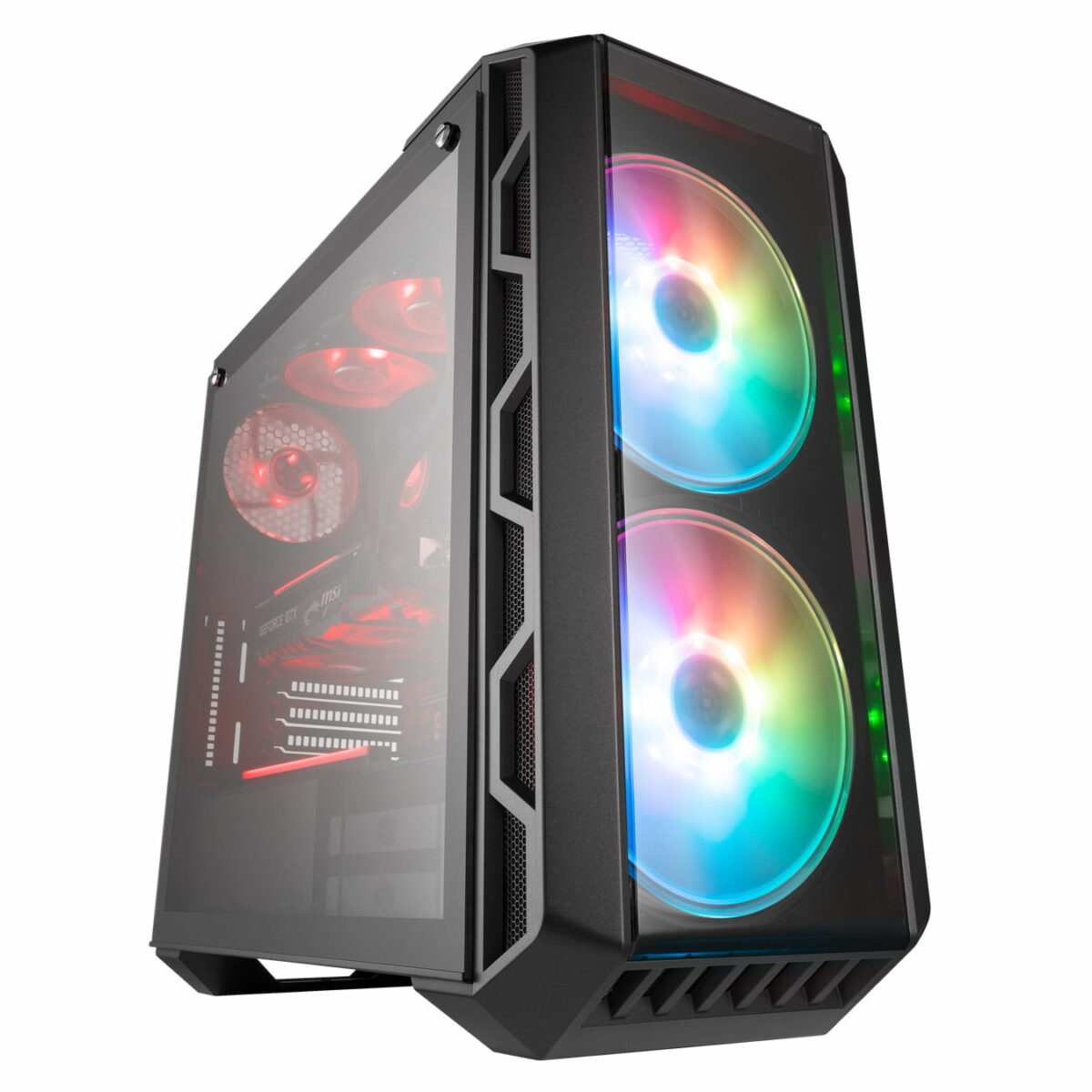

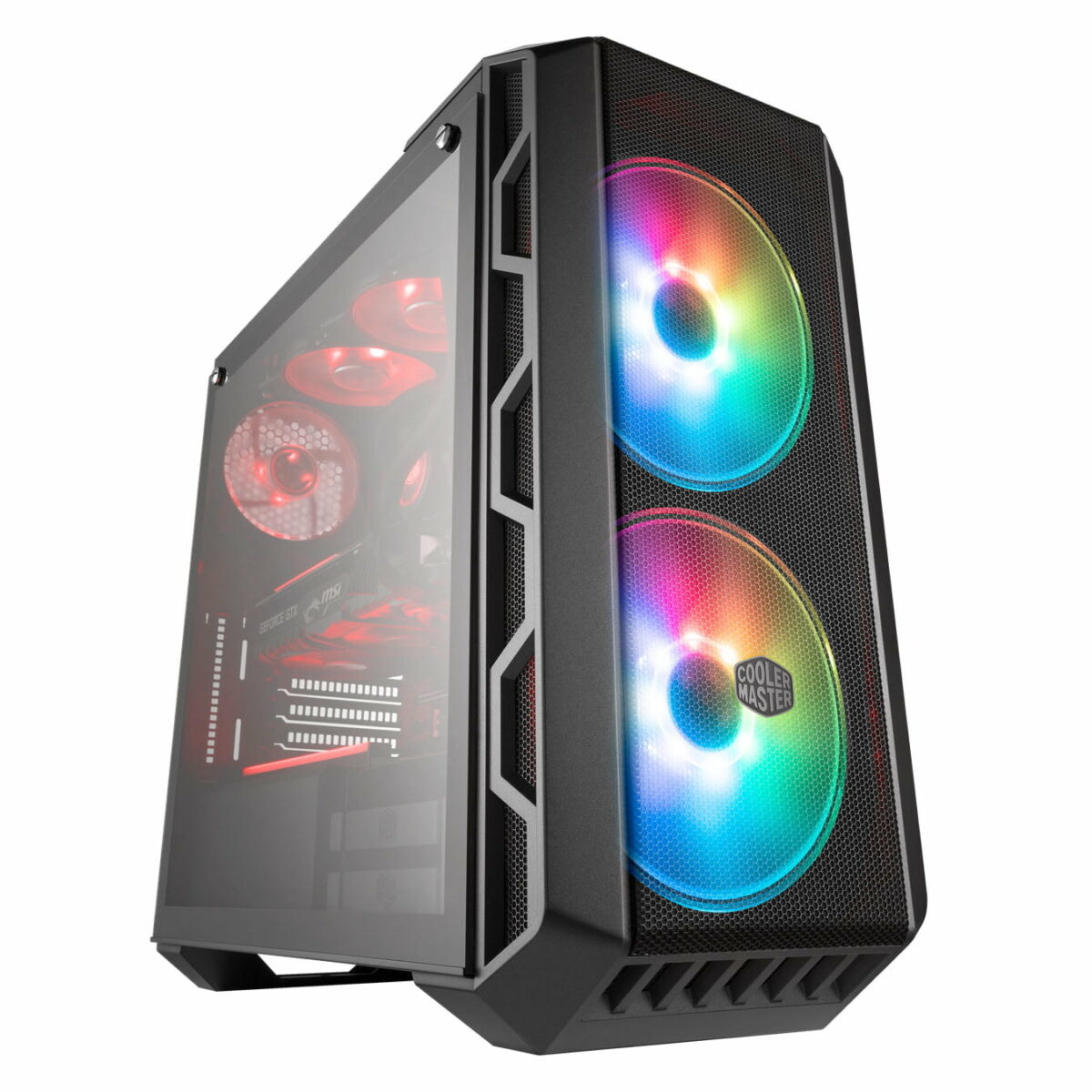

MESH & TRANSPARENT PANELS INCLUDED

Each choice of front panels decide whether the build will excel at ruthless airflow performance or head-turning aesthetics. Of course, the mesh is the ideal choice for providing the pre-installed fans with high volumes of fresh air. The transparent panel, on the other hand, parades those fans in crystal clear view.

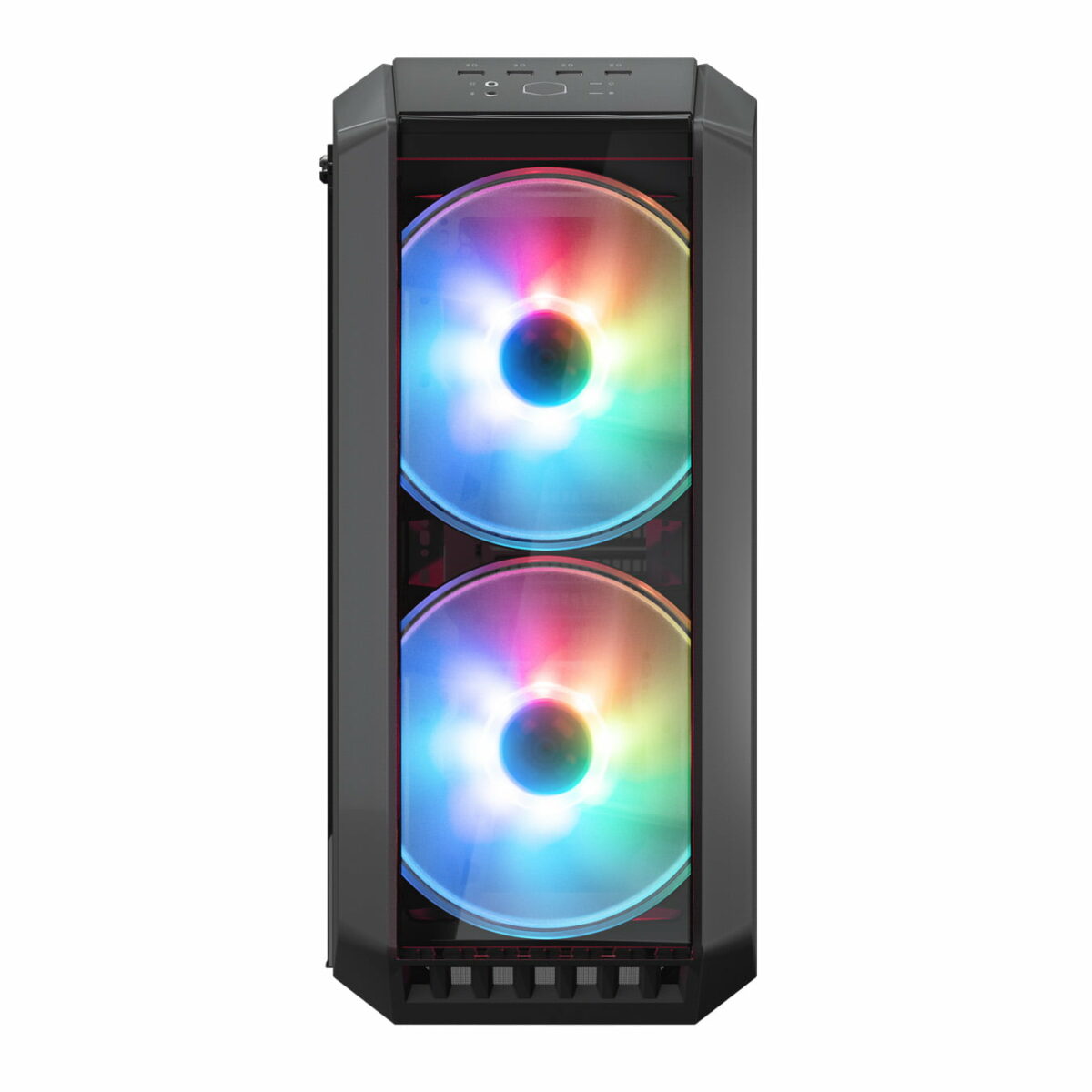

DUAL 200MM ARGB FANS

The iconic, addressable RGB fans are the core of the H-Series in design and function, capable of operating quietly while moving high volumes of air due to their size.

ARGB LIGHTING SYSTEM

The pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

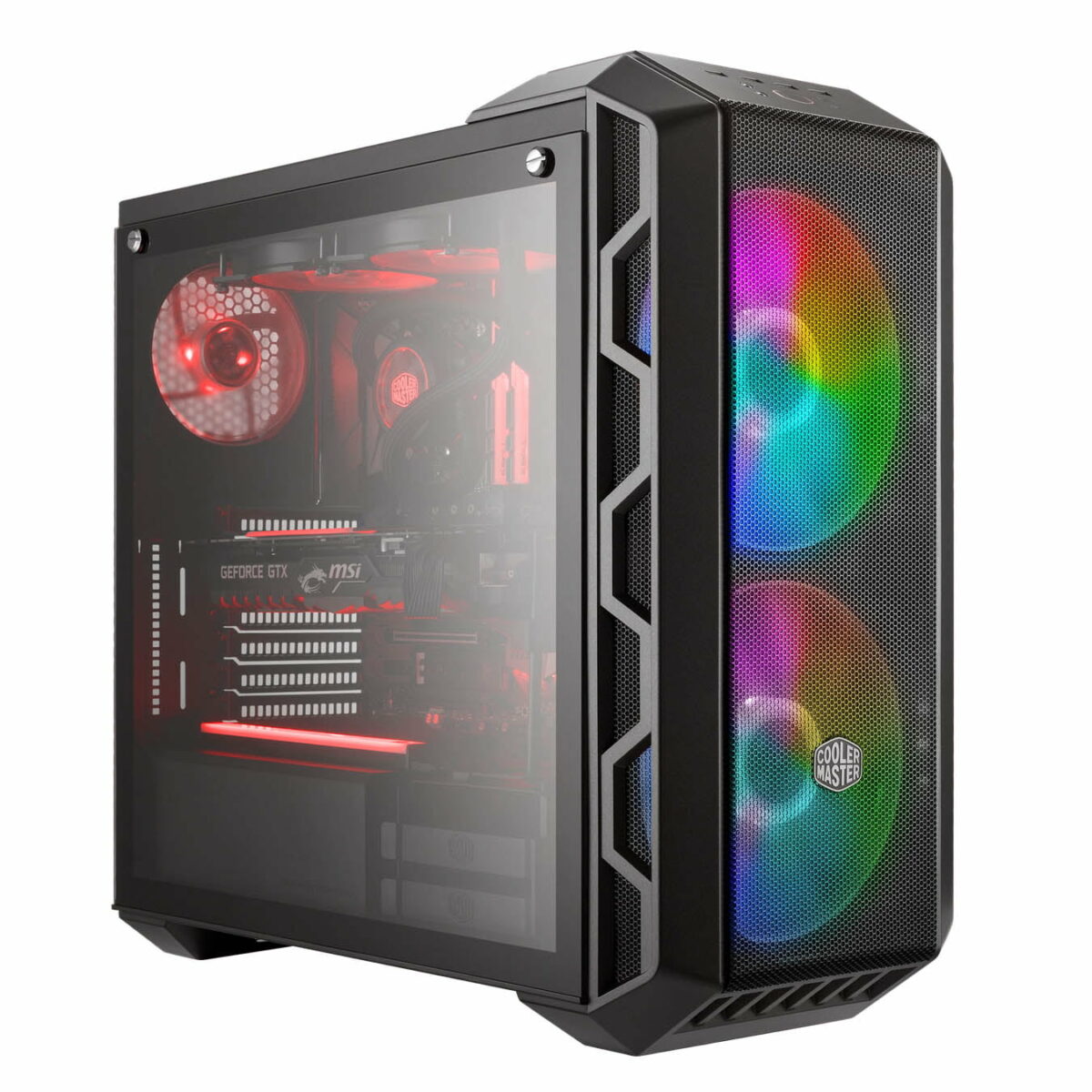

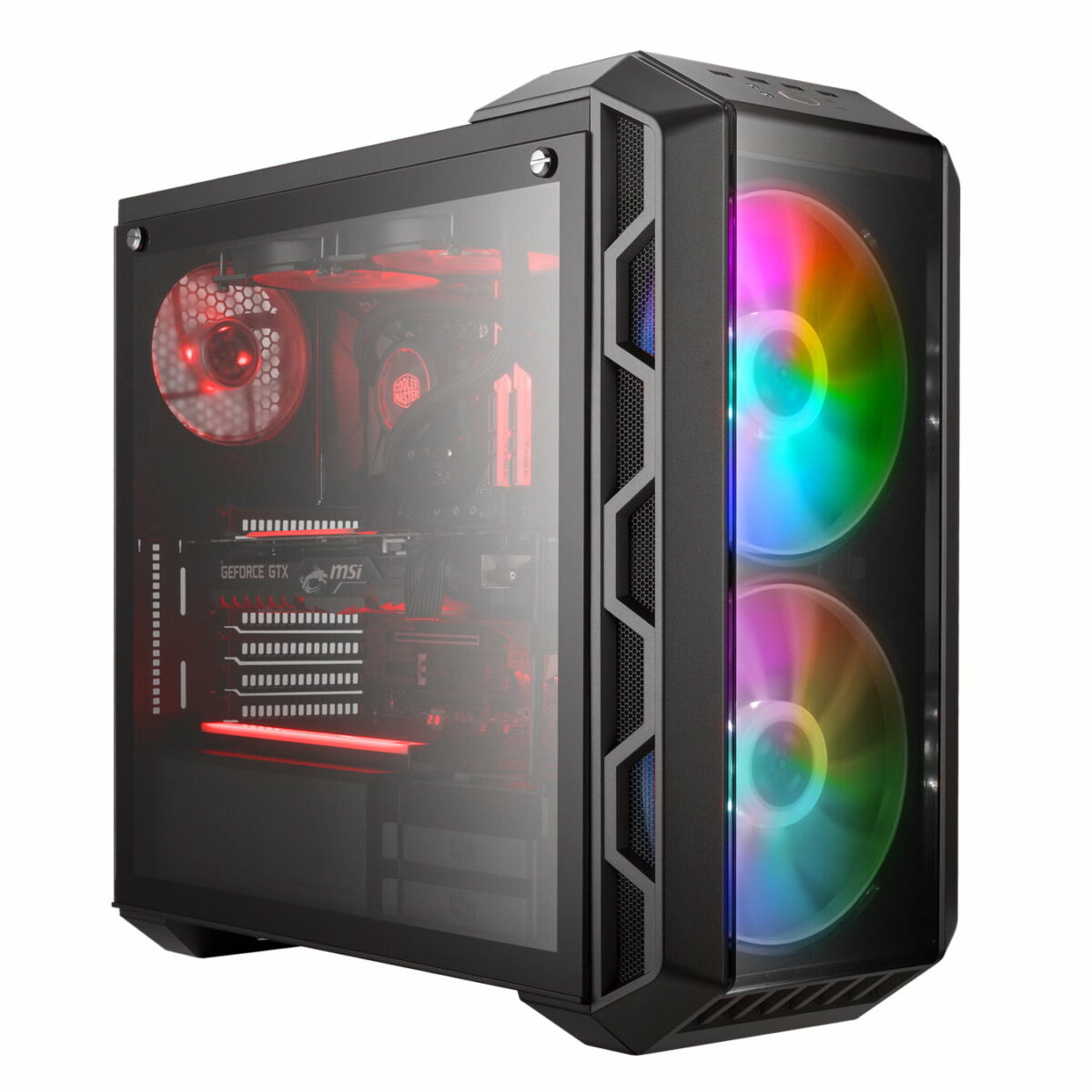

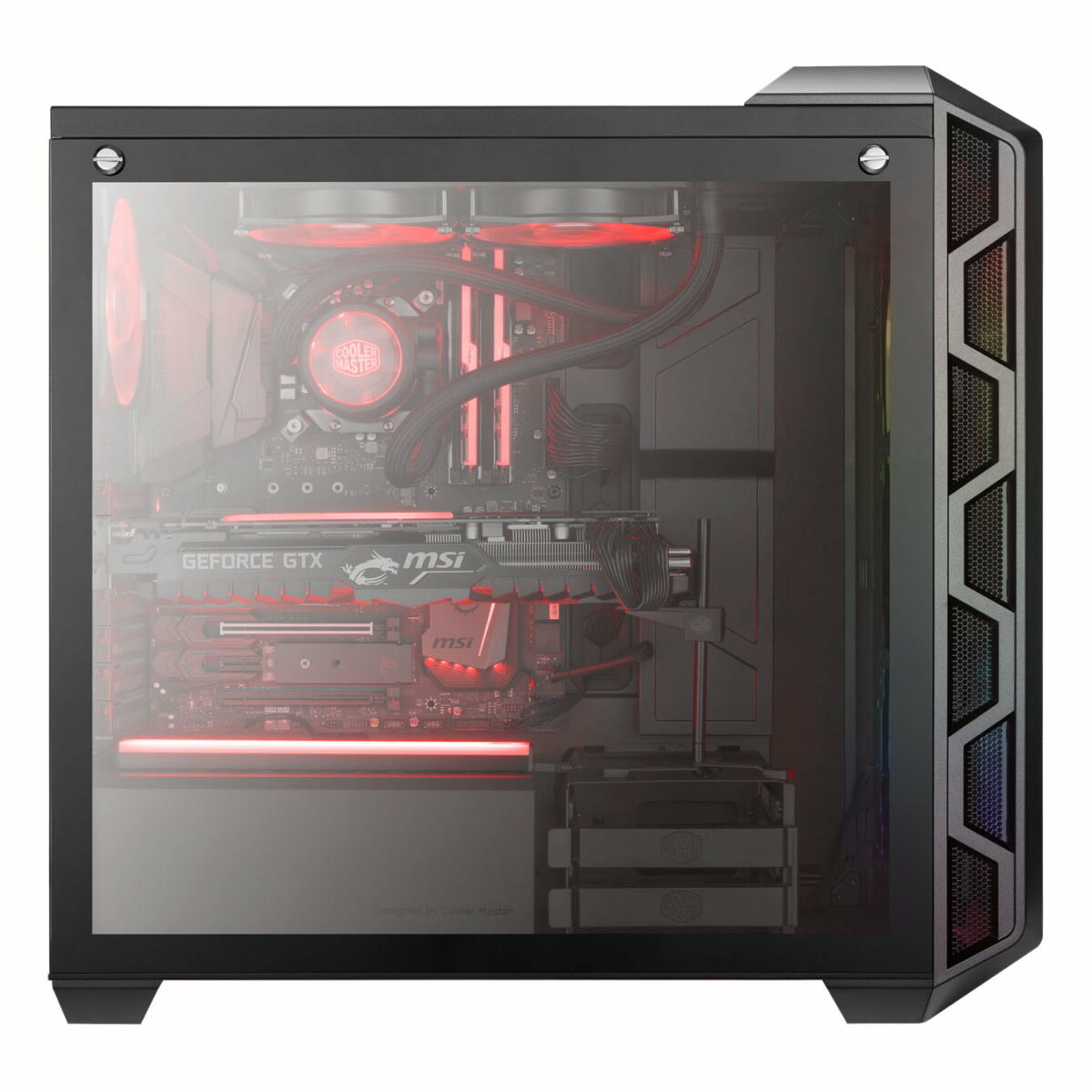

TEMPERED GLASS SIDE PANEL

Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.

CASE HANDLE

Hidden on the top panel, in front of the mesh ventilation, is an integrated handle for enhanced utility.

ARGB CONTROLLER​

​The small ARGB Controller is a mini-sized controller that allows your Addressable RGB such as fans and LED strips to be powered and controlled even in PC systems without an A-RGB capable motherboard.​

The controller comes with 14 lighting presets to make full use of the Addressable LEDs in the system and also allows to be completely switched off by long pressing its button.​

It is also possible to attach any external 2pin button to it to be able to switch presets without having to open the system. For ease of use, Cooler Master allows the RESET button to be optionally connected to the controller and used as an external ARGB preset switch button.

SPECIFICATIONS

MODEL NUMBER

MCM-H500-IGNN-S01

SERIES

MasterCase Series

SIZE

Mid Tower

AVAILABLE COLOR(S)

Iron Grey

MATERIALS

Steel, Plastic, Mesh

DIMENSIONS (L X W X H)

525 x 228 x 502mm (Incl. Panels)

MOTHERBOARD SUPPORT

Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*support for up to 12″ x 10.7″, will limit cable management features)

EXPANSION SLOTS

7

5.25″ DRIVE BAYS

N/A

2.5″ / 3.5″ DRIVE BAYS (COMBO)

2

2.5″ DRIVE BAYS

2

I/O PANEL

2x USB 3.2 Gen 1 (formerly USB 3.0)

2x USB 2.0

1x 3.5mm Audio Jack

1x 3.5mm Mic Jack

1x ARGB Controller

1x ARGB 2-to-3 splitter

PRE-INSTALLED FANS – FRONT

2x 200mm ARGB Fan

PRE-INSTALLED FANS – REAR

1x 120mm (Black)

FAN SUPPORT – TOP

2x 120mm, 2x 140mm, 1x 200mm

FAN SUPPORT – FRONT

3x 120mm, 2x 140mm, 2x 200mm

FAN SUPPORT – REAR

1x 120mm

RADIATOR SUPPORT – TOP

120mm, 140mm, 240mm

RADIATOR SUPPORT – FRONT

120mm, 140mm, 200mm, 240mm, 280mm, 360mm

RADIATOR SUPPORT – REAR

120mm

CLEARANCE – CPU COOLER

167mm/6.5″

CLEARANCE – PSU

180mm/7.1″

CLEARANCE – GFX

410mm/16.1″

DUST FILTERS

Top, Front, Bottom

POWER SUPPLY SUPPORT

Bottom mount, ATX
