APC Back-UPS Pro Gaming 2200VS/1320W BVX2200LI-MSX
More about APC UPS Pro Gaming
Pure sine wave ouptut provides cleanest signal for active PFC servers and electronics
AVR corrects voltage variations to provide reliable power
Reactor circle visually alerts of remaining power, surges, dips, power outages, and building wiring faults

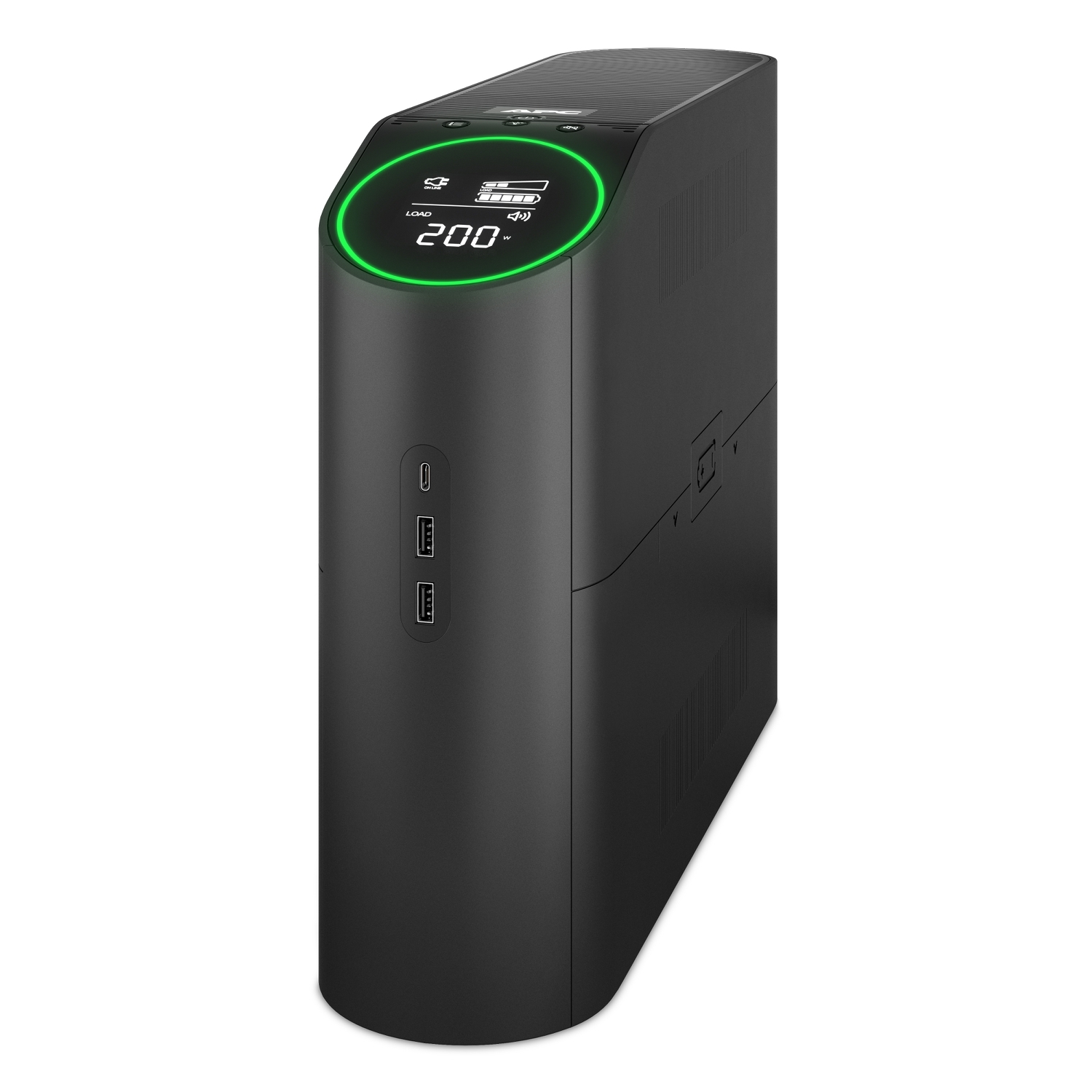

3 USB smart charging ports (Type A + C) to plug in your wireless gaming devices and mobile phone
Rear LEDs illuminate outlets so you see exactly where you’re plugging in your gaming gear
Specification of APC UPS Pro Gaming
Run time for load information_stroke Min-max: 132-1320 W | 0min 28s |
|---|---|
Max. Capacity Used information_stroke | 100 % |
| Main Input Voltage | 230 V AC 1 phase |
| Other Input Voltage | 230 V |
| Main Output Voltage | 230 V 1 phase |
| Rated power in W | 1320 W |
| Rated power in VA | 2200 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | Schuko |

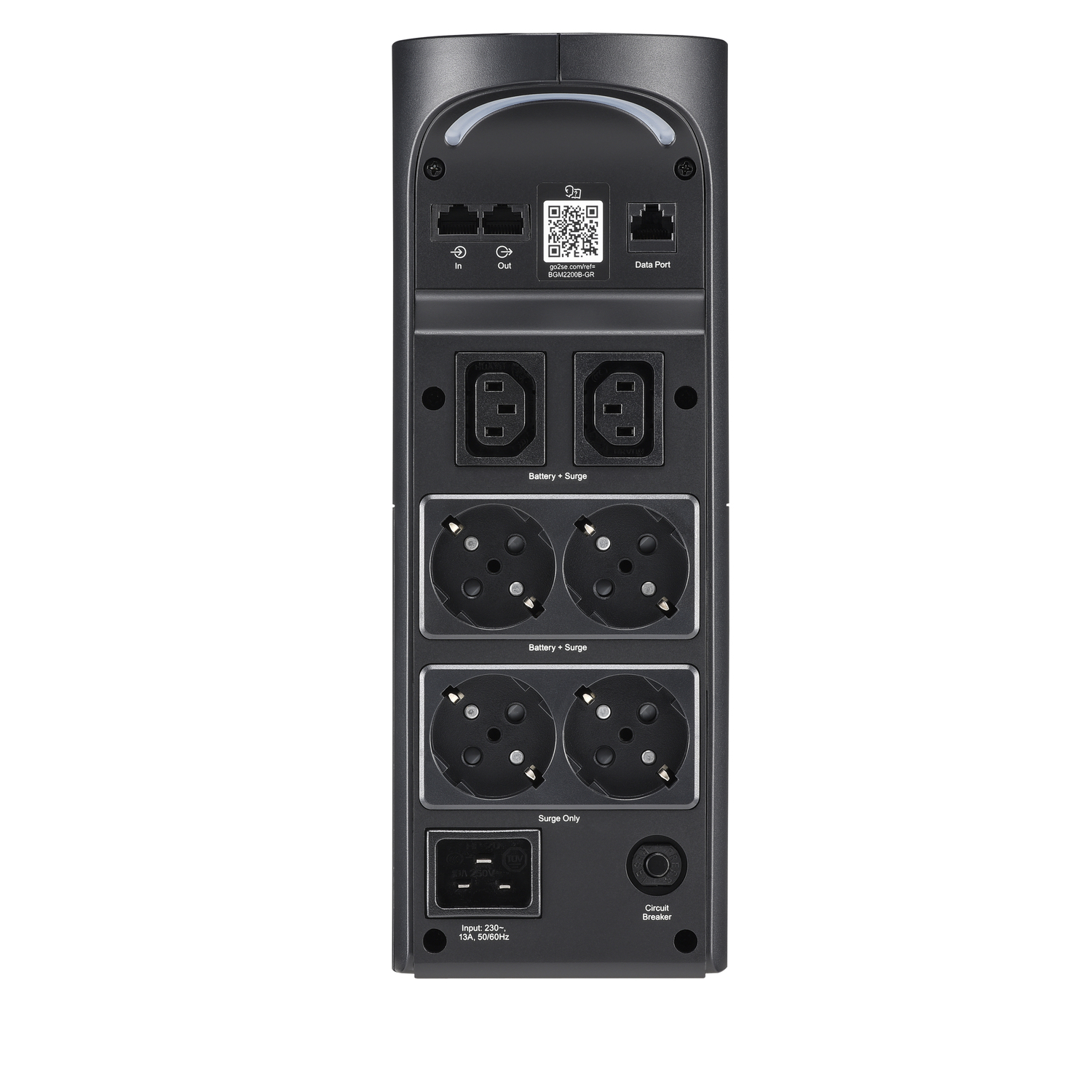

| output connection type | 2 Schuko surge 2 IEC 60320 C13 |
| Cable length | 1.5 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Run Time | View Runtime Graph |
|---|---|
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 16 h |
| Number of battery replacement quantity | 1 |
| Battery voltage | 24 V |
| Overcurrent protection | 15 A |
| Battery charger power | 12 W rated |
| Battery life | 3…5 year(s) |
| Provided equipment | safety guide USB cable power cable |
|---|---|
| product web sub-family | Gaming performance |
| Number preinstalled power module | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Colour | Black |
|---|---|
| Height | 292.1 mm |
| Width | 104.1 mm |
| Depth | 408.9 mm |
| Product weight | 12.34 kg |
| Mounting support | Floor |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Mounting position | Vertical |
| Network frequency | 50/60 Hz +/- 3 Hz |
|---|---|
| Plug standard | Schuko |
| Input voltage limits | 168…302 V |
| Maximum input current | 12 A |
| Switching current capacity | 15 A |
| Input harmonic distortion | Less than 3 % for full load |
| Input protection type | Circuit breaker |
| Maximum configurable power in W | 1320 W |
|---|---|
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Full load runtime | 00:00:30 |
| Half load runtime | 00:05:30 |
| Maximum configurable power in VA | 2200 VA |
| Transfer time | 8 ms typical : 10 ms maximum |
| Product certifications | CE CB |
|---|---|
| Equipment protection policy | Lifetime : 50000 euros |
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for storage | -15…40 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.0000000000…3048. |
| Acoustic level | 45 dBA |
| IP degree of protection | IP20 |
| Free slots | 0 |
|---|---|
| control panel | Multifunction LCD status and control console |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 1080 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.5 cm |
| Package 1 Width | 35.5 cm |
| Package 1 Length | 48 cm |
| Package 1 Weight | 14.52 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 90.6 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 450.50 kg |
| SCC14 | 20731304634762 |
