Description

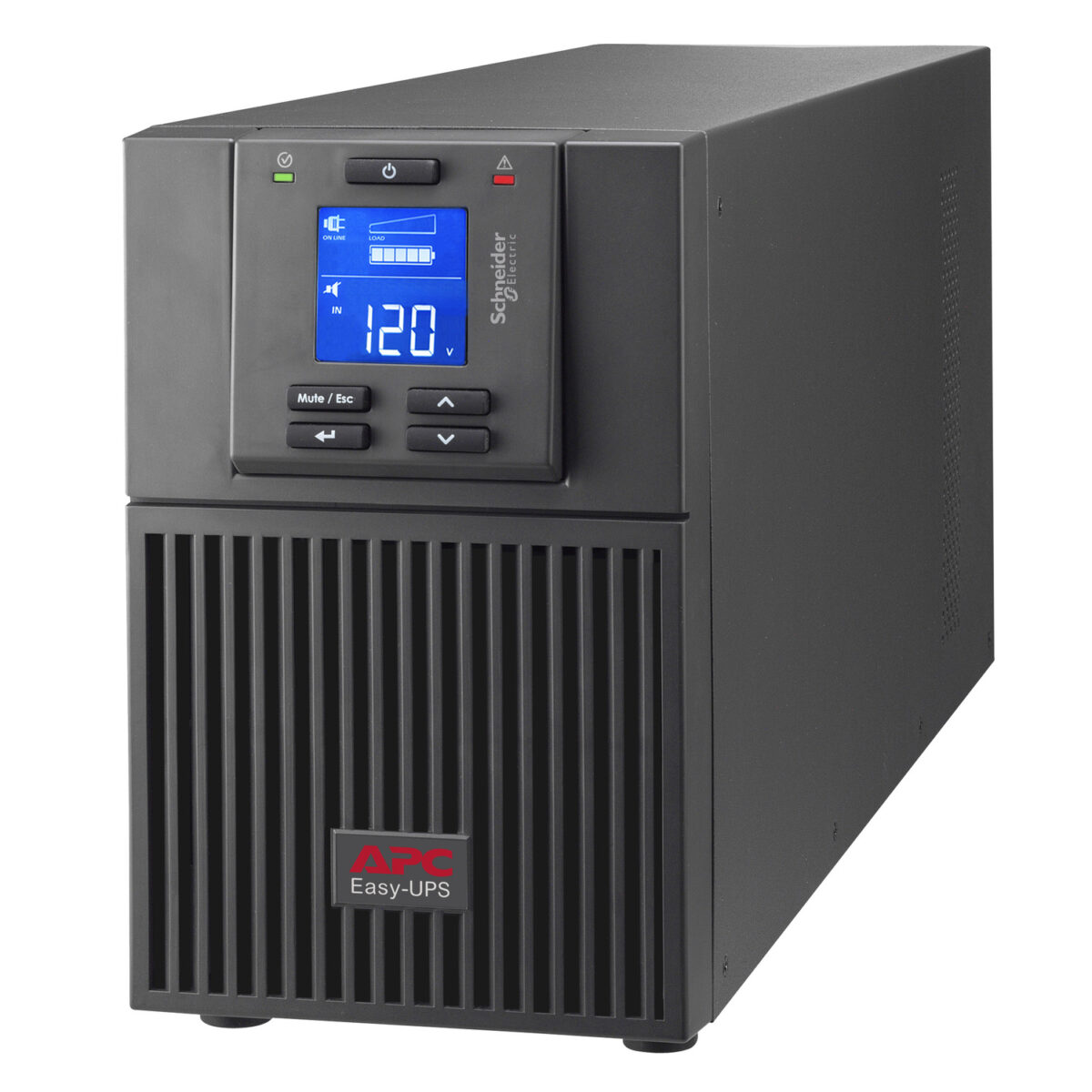

APC Easy UPS On-Line 1000VA, 230V SRV1KL

More about APC UPS-on- Line SRV1KL

1000VA/800W double-conversion on-line pure sine wave tower UPS
APC UPS-on- Line SRV1KL
High operating efficiency in energy-saving ECO mode
APC UPS-on- Line SRV1KL
Prolonged battery life with intelligent temperature-compensated charging

APC UPS-on- Line SRV1KL

Specification of APC UPS-on- Line SRV1KL

Main Input Voltage120 V
Product or component typeUninterruptible power supply (UPS)
Other Input Voltage110 V
115 V
Main Output Voltage120 V
Other Output Voltage110 V
115 V
Rated power in W800 W
Rated power in VA1000 VA
Input Connection TypeNEMA 5-15P
output connection type4 NEMA 5-15R
Cable length4.92 ft (1.50 m)
Number of cables1
Provided equipment1 USB cable
1 RS-232 configuration cable
user manual
Range of productEasy UPS On-Line





Batteries & Runtime
Run Time
View Runtime Graph
Efficiency
View Efficiency Graph
Battery typeLead-acid battery
Battery voltage24 V
Number of battery filled slots0
Number of battery free slots0
Battery recharge time4 h
Battery life3…5 year(s)
Replacement battery
APCRBCV203
Battery charger power30 W rated



General
Max runtime4 min
Number of power module filled slots0
Number of power module free slots0
RedundantNo



Physical
ColourBlack RAL 7010)
Height8.78 in (22.3 cm)
Width5.71 in (14.5 cm)
Depth11.34 in (28.8 cm)
Net weight21.2 lb(US) (9.6 kg)
Mounting locationFront
Mounting preferenceNo preference
Mounting modeNot rack-mountable
USB compatibleYes
Mounting positionVertical



Input
Input voltage limits55…150 V half load
85…150 V full load
Network frequency40…70 Hz auto sensing
Output
Maximum configurable power in VA1000 VA
Maximum configurable power in W800 W
Output frequency50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion3 %
UPS typeDouble conversion online
Wave typeSine wave
Efficiency88 % full load)
Bypass typeInternal bypass (automatic and manual)
Crest factor3 : 1



Conformance
Product certificationsUL 1778
StandardsFCC part 15 class A
CSA C22.2 No 107.3



Environmental
Ambient air temperature for operation32…104 °F (0…40 °C)
Relative humidity0…95 % non-condensing
Operating altitude0…3000 m
Ambient air temperature for storage-4…122 °F (-20…50 °C)
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.0000000000…49212.6 ft (0…15000 m)
Acoustic level50 dBA
Heat dissipation372 Btu/h
IP degree of protectionIP20



Communications & Management
AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power offYes
control panelMultifunction LCD status and control console



Surge Protection and Filtering
Surge energy rate300 J



Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height12.99 in (33 cm)
Package 1 Width14.37 in (36.5 cm)
Package 1 Length9.25 in (23.5 cm)
Package 1 Weight24.03 lb(US) (10.9 kg)

For more information about this product visit official website

APC

  • For more related products visit us at our website

PC Circle
