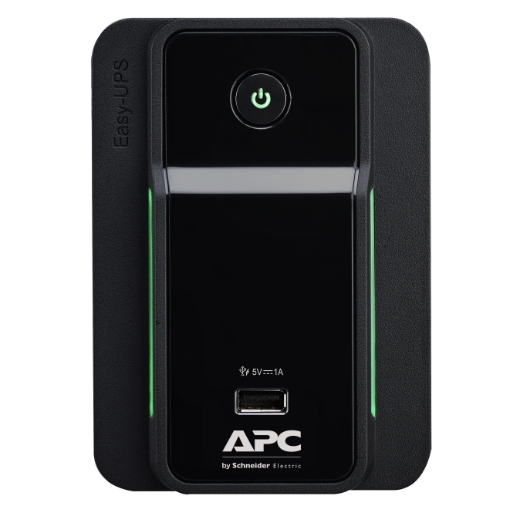

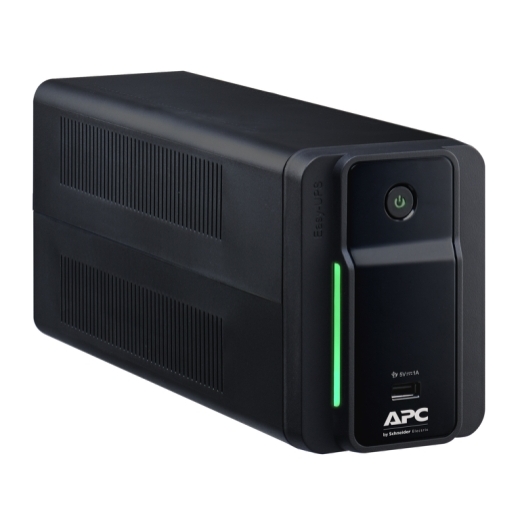

APC Easy UPS BVX { 700VA 230V / AVR / USB Charging / Universal Sockets } BVX700

Output power capacity

360 Watts / 700VA

Nominal Output Voltage

230V

Nominal Input Voltage

230V

Input Connections

IEC 60320 C14

Cord Length

1.2meters

APC Easy UPS BVX 700VA, 230V, AVR, USB Charging,Universal Sockets

Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Includes: User manual

Easy UPS Features & Benefits

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Battery backup and surge protection

Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes .

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Audible alarms

Provides notification of changing utility power and UPS power conditions

Cold-start capable

Provides temporary battery power when the utility power is out.

Boost Automatic Voltage Regulation (AVR)

Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Transformer-block spaced outlets

Protect equipment with input transformer blocks without blocking access to other receptacles.

Sleek design

Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Advanced Safety Features

Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Product Distribution

United Arab Emirates, Afghanistan, Bahrain, Burundi, Bolivia, Chile, Djibouti, Algeria, Egypt, Eritrea, Ethiopia, Fiji, Ghana, Indonesia, Israel, Iraq, Jordan, Kenya, Cambodia, Kuwait, Lebanon, Liberia, Libya, Morocco, Myanmar, Malaysia, Nigeria, Oman, Peru, Philippines, Pakistan, Qatar, Rwanda, Saudi Arabia, Singapore, Sierra Leone, Somalia, Thailand, Tunisia, Tanzania, Uganda, Uruguay, Vietnam, Yemen, South Africa

Technical Specifications

Max Configurable Power (Watts)

360 Watts / 700VA

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical : 10 ms maximum

Input frequency

50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations

170 – 280 (230 V) ACV

Number of Power Cords

1

Input Power Factor at Full Load

0.51

Battery type

Lead-acid battery

Typical recharge time

8hour(s)

Nominal Battery Voltage

12 V

Expected Battery Life (years)

1 – 2

Battery Volt-Amp-Hour Capacity

84

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Control panel

LED Status display with on line : on battery

Audible Alarm

Alarm when on battery : distinctive low battery alarm

Surge energy rating

273Joules

Maximum Height

138MM, 13.8CM

Maximum Width

98MM, 9.8CM

Maximum Depth

310MM, 31.0CM

Net Weight

4.2KG

Shipping weight

4.5KG

Shipping Height

222MM, 22.2CM

Shipping Width

142MM, 14.2CM

Shipping Depth

346MM, 34.6CM

Color

Black

SCC Codes

10731304417610

Operating Temperature

0 – 40 °C

Operating Relative Humidity

0 – 95 (Non-condensing) %

Operating Elevation

0 – 3000meters

Storage Temperature

-15 – 40 °C

Storage Relative Humidity

0 – 95 (Non-condensing) %

Storage Elevation

0 – 3000meters

Audible noise at 1 meter from surface of unit

40.0dBA

Protection Class

IP20

For more details about ( APC Easy UPS BVX 700VA 230V AVR USB Charging Universal Sockets BVX700 ) :

Click here

For more Uninterruptible Power Supply ( UPS ) :
Click here

For more APC products :

Click here

Additional information

Brand	APC
