ALSEYE Xtreme DIY Liquid Cooler X240 (Fan: 120mm // Radiator: 240mm // RGB)
[X240 DIY]
ALSEYE Xtreme WaterX240 soft tube water cooling kit

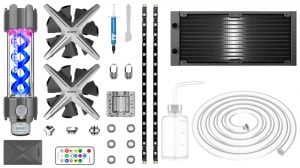

The kit includes two X12 ARGB Cooling Fans, a Xtreme C5 ARGB CPU Water Block, Xtreme Transformer Wing Pump Reservoir Combo, Xtreme WR360 Radiator, six Xtreme 1/2” ID x 3/4” OD Compressions, two meters of Flexible 1/2’‘(8mm) ID x 3/4’‘(12mm) OD Transparent Tube, an ARGB LED controller, and other accessories.
Xtreme C5 Adjustable RGB CPU Water Block
Xtreme C5 Adjustable RGB CPU Water Block, a copper base with anti-corrosive nickel plating and high-quality PMMA cover. Fits with most G1/4 fittings. 16.8 million colors with 4 adjustable LEDs. Users can easily change RGB lighting effects using the ARGB controller-Commander-S
LEARN MORE
Xtreme WR360 Radiator
ALSEYE Xtreme WR360 Radiator, high-performance 360mm copper radiator with high-density copper fin design. Built for 120mm cooling fans, integrated G1/4″ threads make it easy to install
Xtreme Transformer Wing Pump & Reservoir Combo
ALSEYE Xtreme Transformer Wing Pump & Reservoir Combo, manufactured from Aluminum and PMMA, includes a 150ml reservoir with a head 6.0m pump, excellent performance and unrivalled reliability for all gaming systems.
LEARN MORE
Xtreme 1/2‘’ ID x 3/4’’ OD Compression Fittings
The compression fitting includes a base barb and Anodizing O-ring, easily screw. Six compressions are included in the kit.
Xtreme G1/4 90 Degree Adapter
The adapter fitting is in 360° revolve-able design. 2 adapter fittings are included in the kit.
Xtreme Flexible Tube
Medical grade PVC material, 8mm ID x 12mm OD x 2m length. Working temperature range: -20℃ to 60℃, better mounting, easier fitting, and ideal flow. 200cm od tube included in the kit.
Xtreme T9+ Thermal Grease
13W/m.k thermal conductivity. Suitable for CPU, chipsets on Motherboard, VGA card, etc.
Specification
Suitable socket
Intel
LGA775/115X/1366/2011/2066
AMD
FM1/FM2/AM2/AM2+/AM3/AM3+/AM4
Components Dimension
Pump & Reservoir combo
63(L) x 63(W) x 240(H) mm
Copper Radiator
30.5(H) x 120(W) x 275(L) mm
Tube
ID: 8mm // OD: 12mm
Fan
120 x 120 x 25 mm // PWM 600-1500 RPM (ARGB Controller)

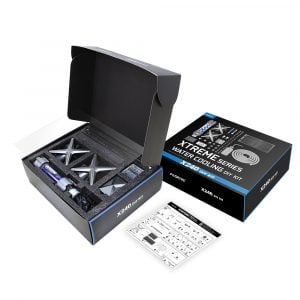

Kit Contents
CPU Water Block
-Xtreme C5 ARGB CPU Water Block
Pump & Reservoir combo
-Xtreme Transformer Wing Pump & Reservoir combo
Radiator
-Xtreme WR360/240/120 Cooper Radiator
Cooling Fan
-Xtreme X12 ARGB PWM Fan
Fittings
6 x -Xtreme 9mm ID x 12mm OD Compression
2 x -Xtreme G1/4 90 Degree
Tube
-Xtreme Flexible Transparent Tube // 2metres x ID: 8mm, OD: 12mm
Thermal Grease
-T9+, 13W/m-k thermal conductivity
Accessories
Intel and AMD Universal Backplated & Mounting Kit
