Display

Model

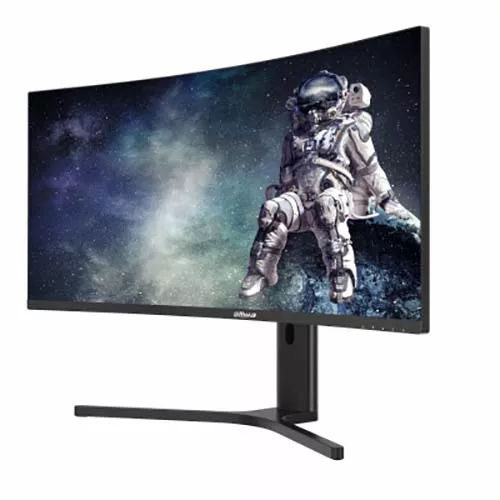

DHI-LM34-E330CA

LCD Technology

VA

Backlight

ELED

Curved Screen

Yes

Curvature

1,500 R

Screen Size

34 inch

Aspect Ratio

21:9

Viewing Size

797.22 (H) × 333.72 (V) mm

Screen-to-Body Ratio

≥85%

Viewing Angle

178° (H) / 178° (V)

Display Mode

Horizontal

Pixel Pitch

0.2318 mm × 0.2318 mm

Pixels Per Inch

109.7

Resolution

3440 (H) × 1440 (V)

Refresh Rate

200 Hz

Display Color

8 bit + FRC

Color Gamut

85% NTSC

Brightness

300 cd/m² (typ.)

Contrast Ratio

3500:1

Response Time

MPRT 1 ms

Lifespan

30,000 hrs

Surface Treatment

Haze 25%, 3H

Flicker-free Technology

Yes

Low Blue Light

Software blue light protection

Function

HDR

HDR 10

Device Ports

Input Port

2 × HDMI 2.0 (3440 × 1440@100 Hz), 2 × DP 1.4 (3440 × 1440@200 Hz)

Output Port

1 × Audio out

Power & Environmental Conditions

Power Supply

19 VDC, 3.42 A

Power Type

power adapter

Power Consumption

29 W (basic), 47 W (typ.), 70 W (max)

Standby Power Consumption

<0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–85% (RH)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Storage Humidity

5%–90% (RH)

General

Inclined Angle

–5° / 15°

Left and Right Rotation Angle

-35° / +35°

Height Adjustment

100 mm

Product Dimensions

810.4 mm × 361.5 mm × 132.1 mm (31.91″ × 14.37″ × 5.2″) (W × H × D), without base

Package Size

1124 mm × 468 mm × 193 mm (44.25″ × 18.43″ × 7.6″) (W × H × D)

Frame Width

U/L/R/D: 4.3 mm/4.3 mm/4.3 mm/18.1 mm

Net Weight

7.3 kg (16.09 lb)

Gross Weight

10.2 kg (22.49 lb)

Casing Color

Black

Control Mode

Five-button

Status Indicator Light

Yes

Wall Mount VESA

100 mm × 100 mm (3.94″ × 3.94″)

Accessory

• Power adapter
• wall-mount bracket
• DP cable
• user’s manual
• legal and regulatory information etc.

Optional Accessory

Wall mount

Certification

Certifications

CE EMC, CE LVD, CE ERP
