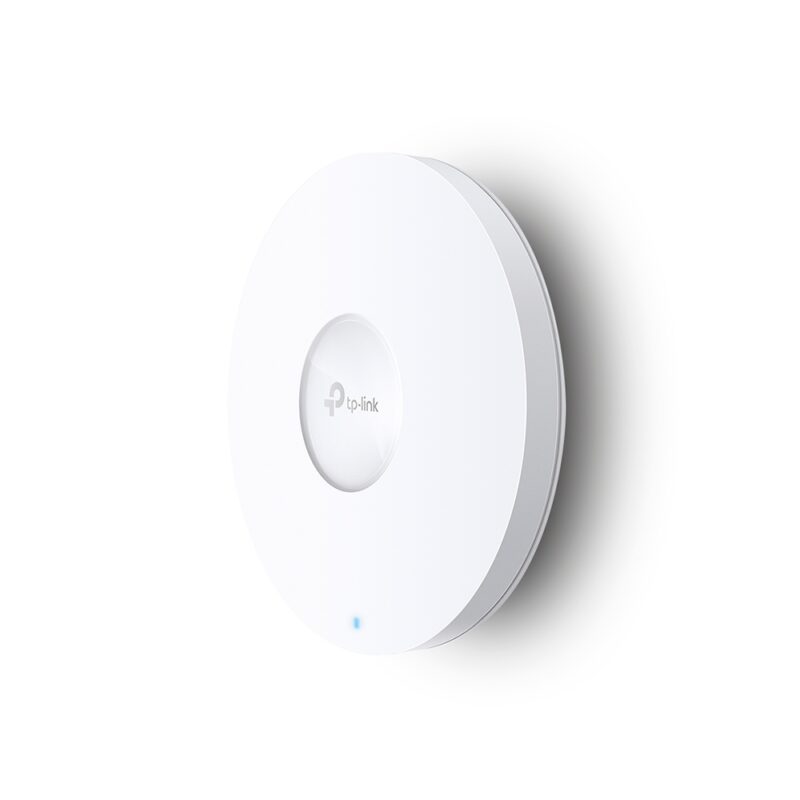

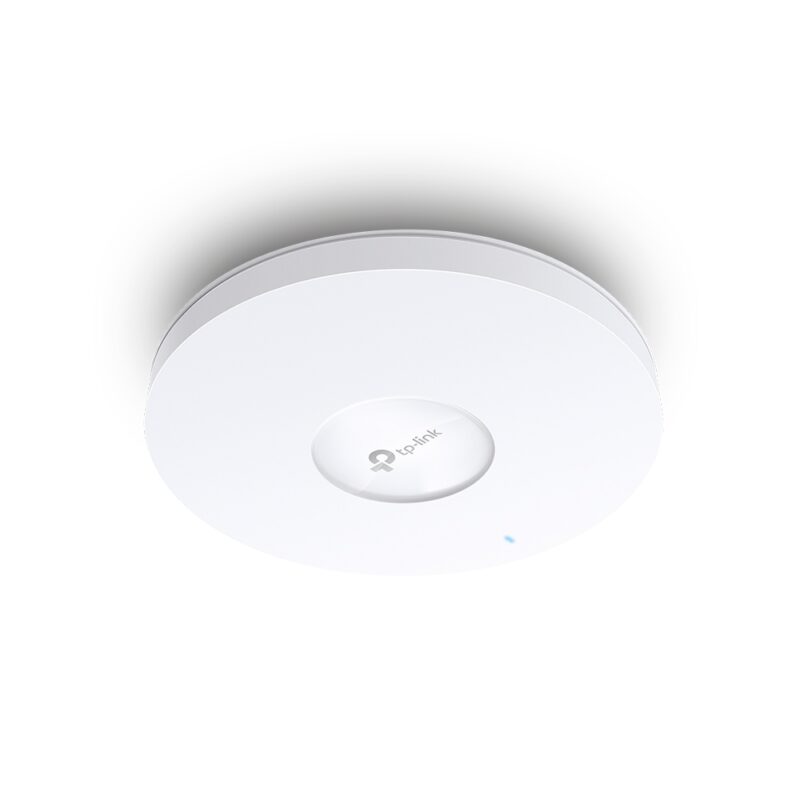

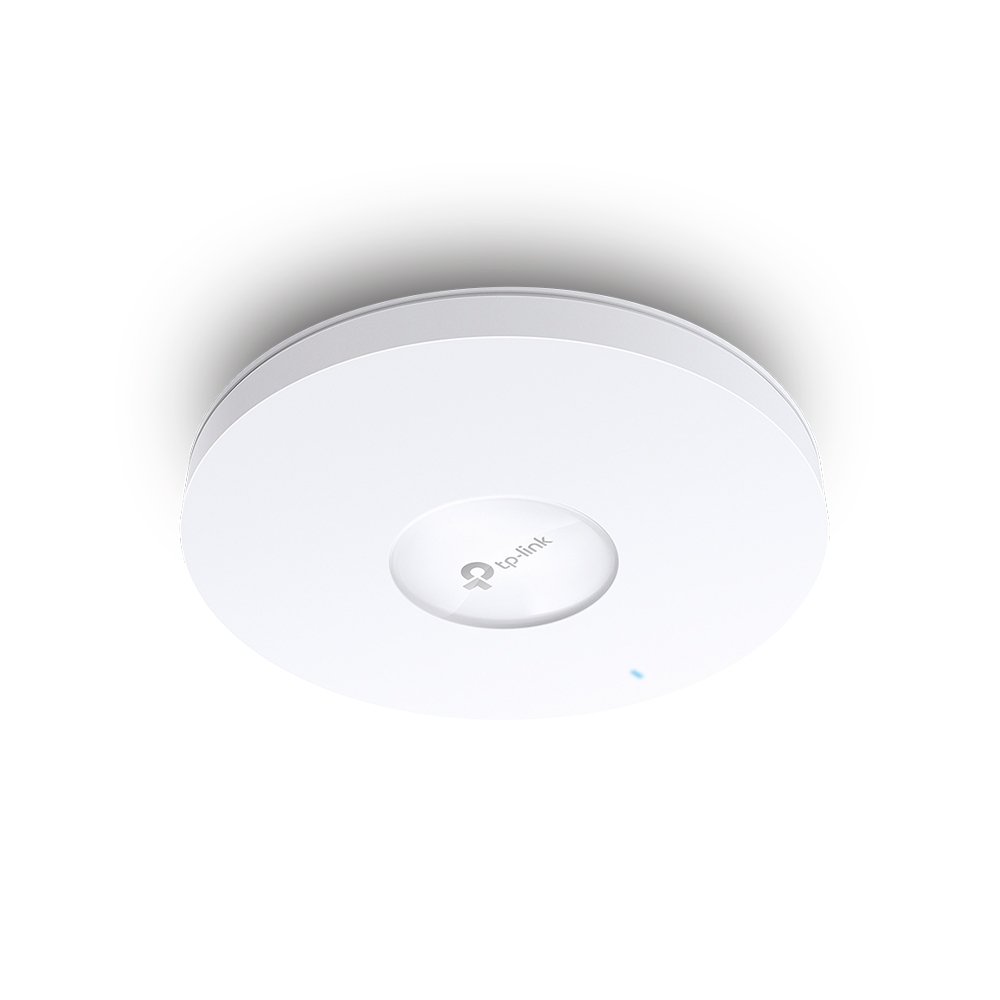

TP-link OMADA EAP650 AX3000 Ceiling Mount Access Point – WiFi 6 – PoE+ Powered
TP-link OMADA EAP650 AX3000
Features:
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

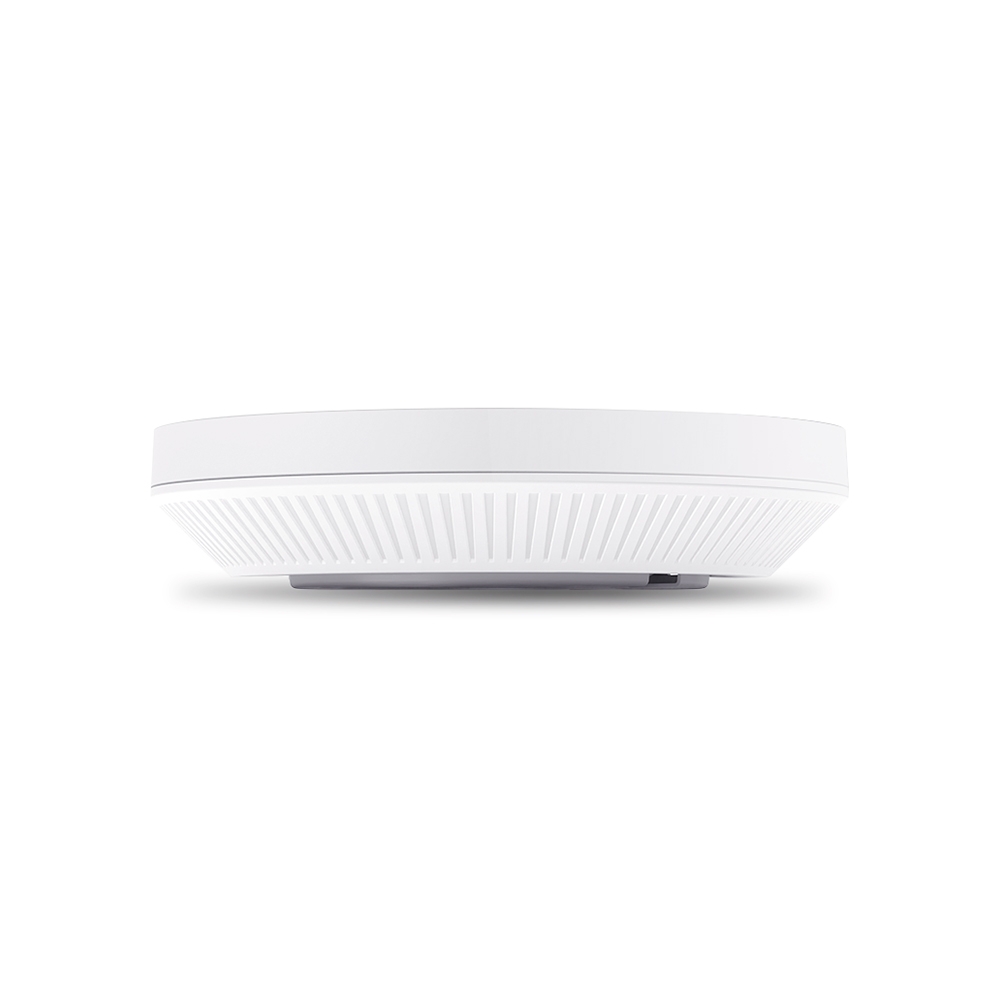

- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
- More router
Designed for Business Environments
Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

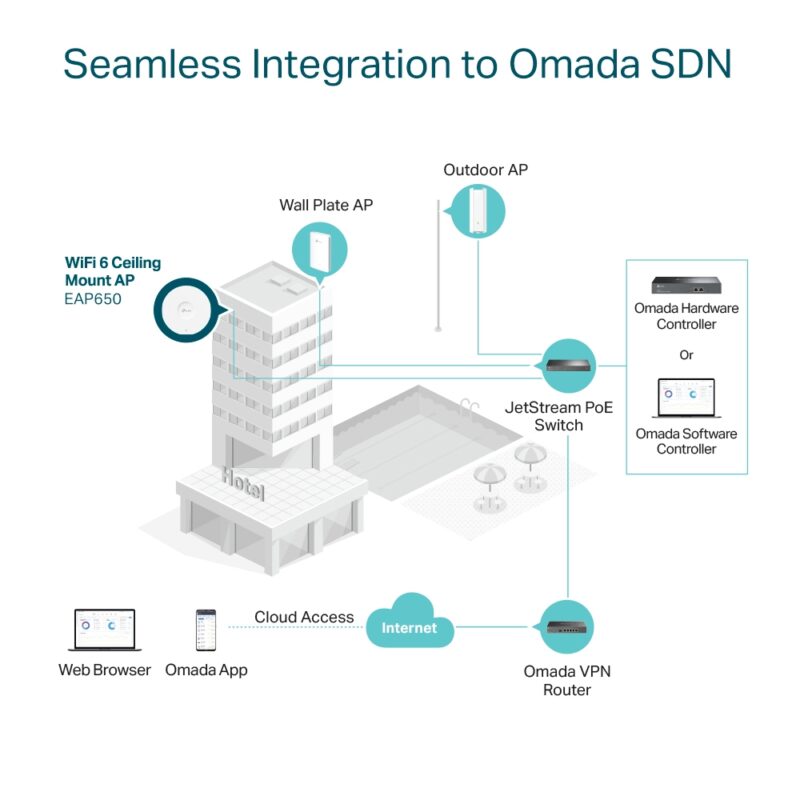

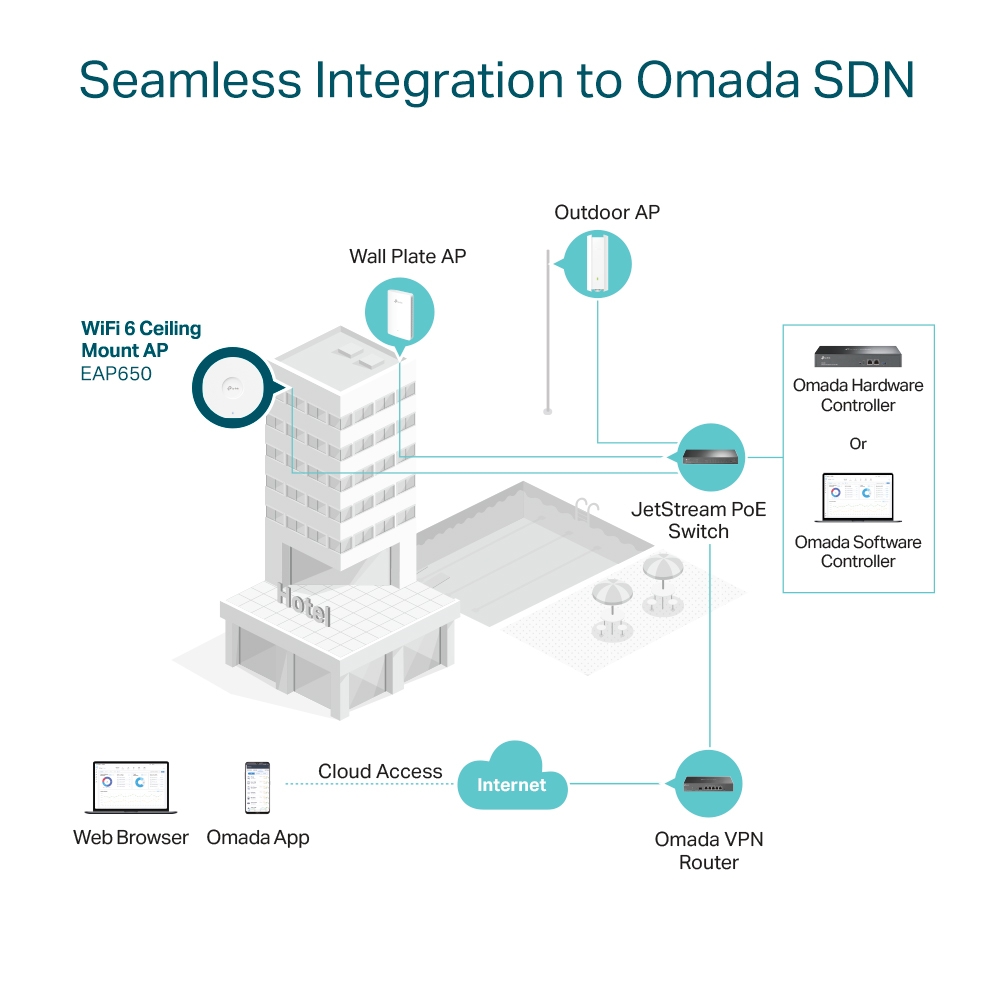

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

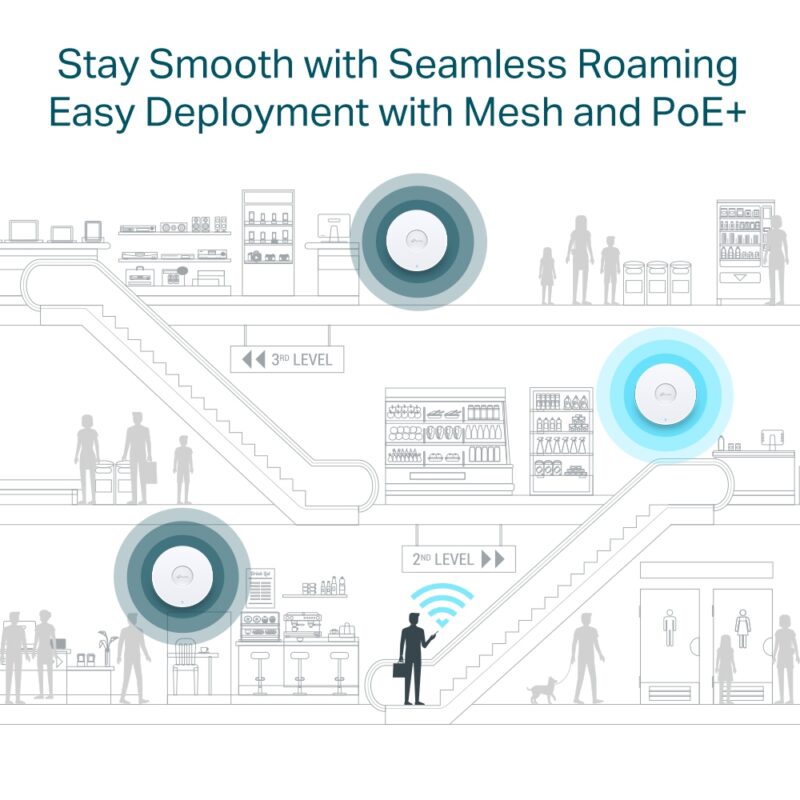

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Specifications
HARDWARE FEATURES
Interface:

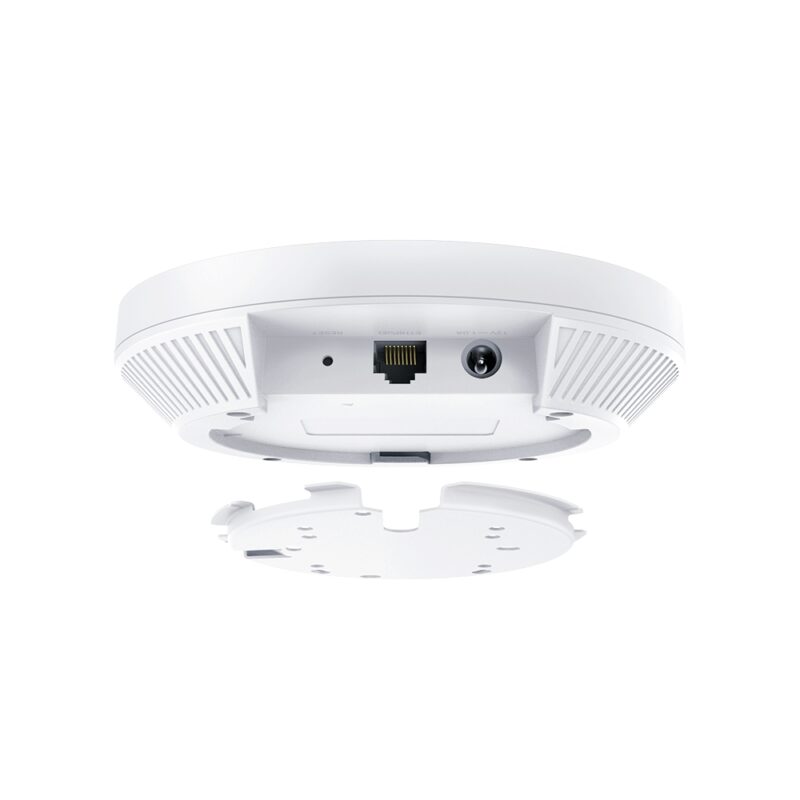

1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button: Reset
Power Supply:
• 802.3at PoE
• 12V DC (Power Adapter included)
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC)
• 48V Passive PoE
Power Consumption:
• EU: 13.5 W
• US: 14.7 W
Dimensions ( W x D x H ):
6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type:
Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Mounting:
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting
WIRELESS FEATURES:
Wireless Standards:
IEEE 802.11ax/ac/n/g/b/a
Frequency:
2.4 GHz and 5 GHz
Signal Rate:
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 574 Mbps
Transmission Power:
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT:
Omada App:
Yes
Centralized Management:
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access:
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts:
Yes
LED ON/OFF Control:
Yes
Management MAC Access Control:
Yes
SNMP:
v1, v2c, v3
System Logging Local/Remote Syslog:
Local/Remote Syslog
SSH:
Yes
Web-based Management:
HTTP/HTTPS
L3 Management:
Yes
System Requirements:
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment:
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
