GIGABYTE P650B 80 Plus Bronze 650W / Quiet hYB Fan / Active Power Protection / Power Supply [ GP-P650B ]
More about Gigabyte P650B Bronze PSU
80 Plus Bronze Certified
80 Plus certified ensures the better power efficiency. Less power waste reduces the heat and fan noise. P650B can be up to 89% efficiency.
Reliable Mesh Braided Cable
P650B provides the best solution for the system builds. The mesh braided cable reduces the clutter and improves the airflow in the case.

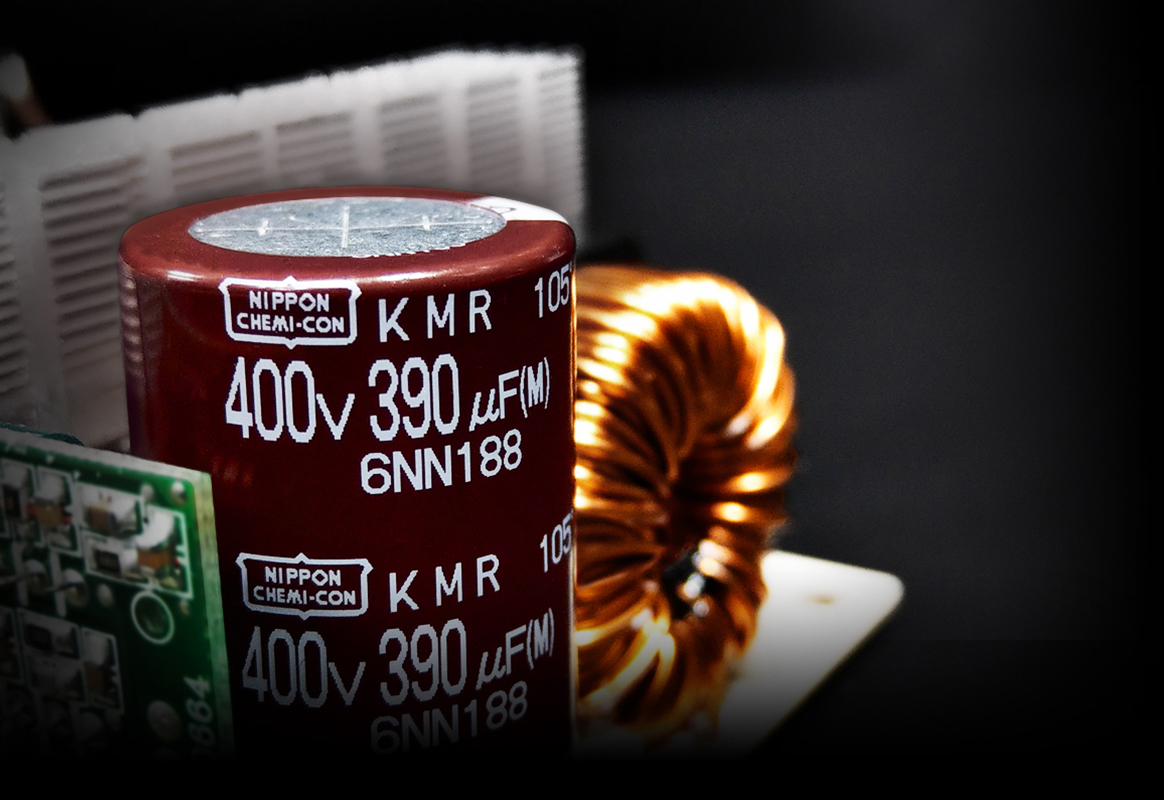

100% Japanese Capacitors
All capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.
120mm Hydraulic Bearing (HYB) Fan
120mm Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.
Specification of Gigabyte P650B Bronze PSU
Model
P650BType
Intel Form Factor ATX 12V v2.31PFC
Active PFC (>0.9 typical)Input Voltage
100-240 Vac (full range)Input Current
9A-4AInput Frequency
50-60 HzOutput Capacity
650WDimension
D150 x W140 x H86 mmFan Type
120mm Hydraulic Bearing FanEfficiency
Up to 85% at typical loadMTBF
>100,000 hoursProtection
OPP/UVP/OVP/SCP/OCPRegulatory
CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSEConnectors
ATX/MB 20+4 Pin x 1
CPU/EPS 4+4 Pin x 1
PCI-e 6+2 Pin x 4, SATA x 6
4 Pin Peripheral x 3
4 Pin Floppy x 1
