Description

GIGABYTE – GeForce RTX 3080 Ti GAMING OC

• 12GB GDDR6X Memory

• 10240 CUDA cores

• 3X Cooling fan

• [ GV-N308TGAMING OC-12GD ]

# (Sold only with CPU + Motherboard + RAM) #

Features

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3080 Ti
• Integrated with 12GB GDDR6X 384-bit memory interface
• WINDFORCE 3X Cooling System with alternate spinning fans
• RGB Fusion 2.0
• Protection metal back plate

WINDFORCE 3X COOLING SYSTEM

The WINDFORCE 3X cooling system features two 90mm and one 80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate direct touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

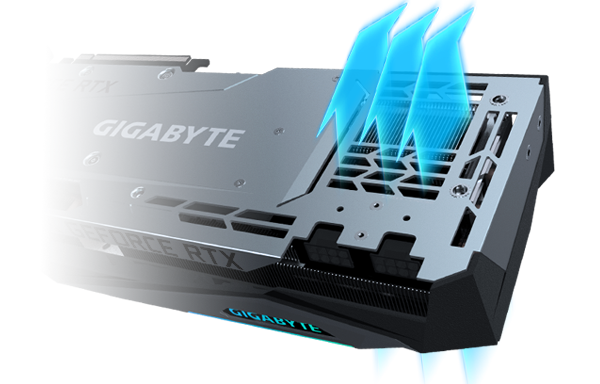

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

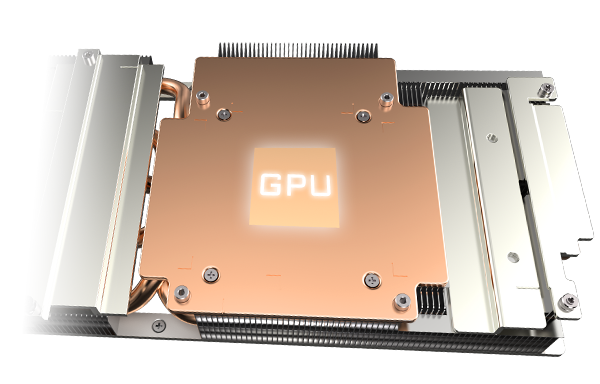

LARGE COPPER PLATE & HEAT-PIPE

With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

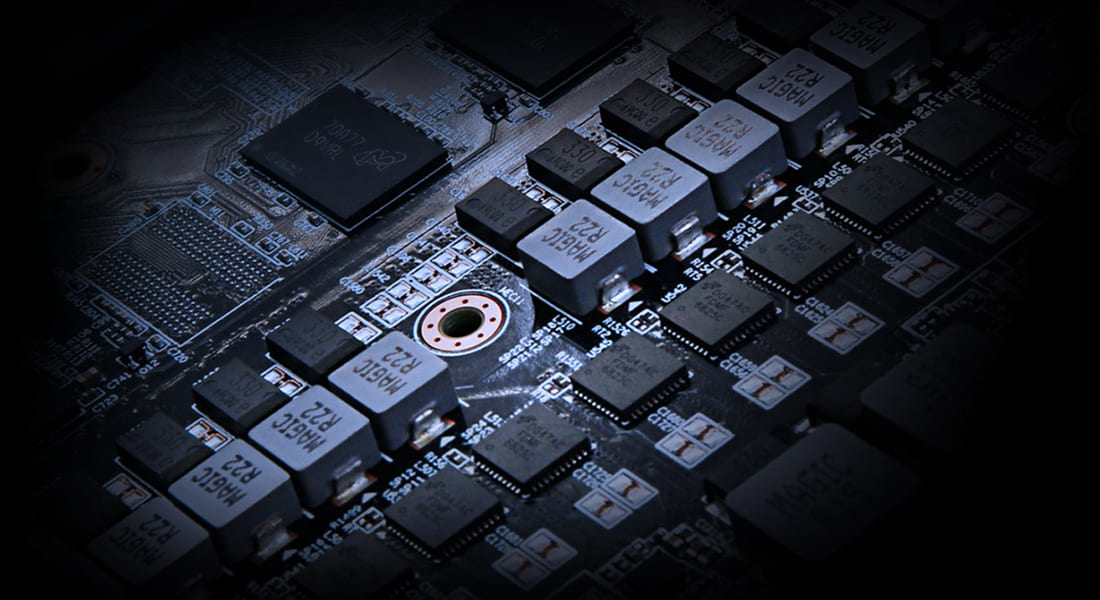

EXTREME DURABILITY AND OVERCLOCKING

The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

Specifications:

• Core Clock
  1710 MHz (Reference Card: 1665 MHz)
• CUDA® Cores
  10240
• Memory Clock
  19000 MHz
• Memory Size
  12 GB
• Memory Type
  GDDR6X
• Memory Bus
  384 bit
• Memory Bandwidth (GB/sec)
  912 GB/s
• Card Bus
  PCI-E 4.0 x 16
• Digital max resolution
  7680×4320
• Multi-view
  4
• Card size
  L=320 / W=129 / H=55 mm (2.7 slot)
• PCB Form
  ATX
• DirectX
  12 Ultimate
• OpenGL
  4.6
• Recommended PSU
  750W
• Power Connectors
  8 pin*2
• Output
  DisplayPort 1.4a *3
  HDMI 2.1 *2
• SLI Support
  N/A

For more details :

https://www.gigabyte.com/Graphics-Card/GV-N308TGAMING-OC-12GD#kf
