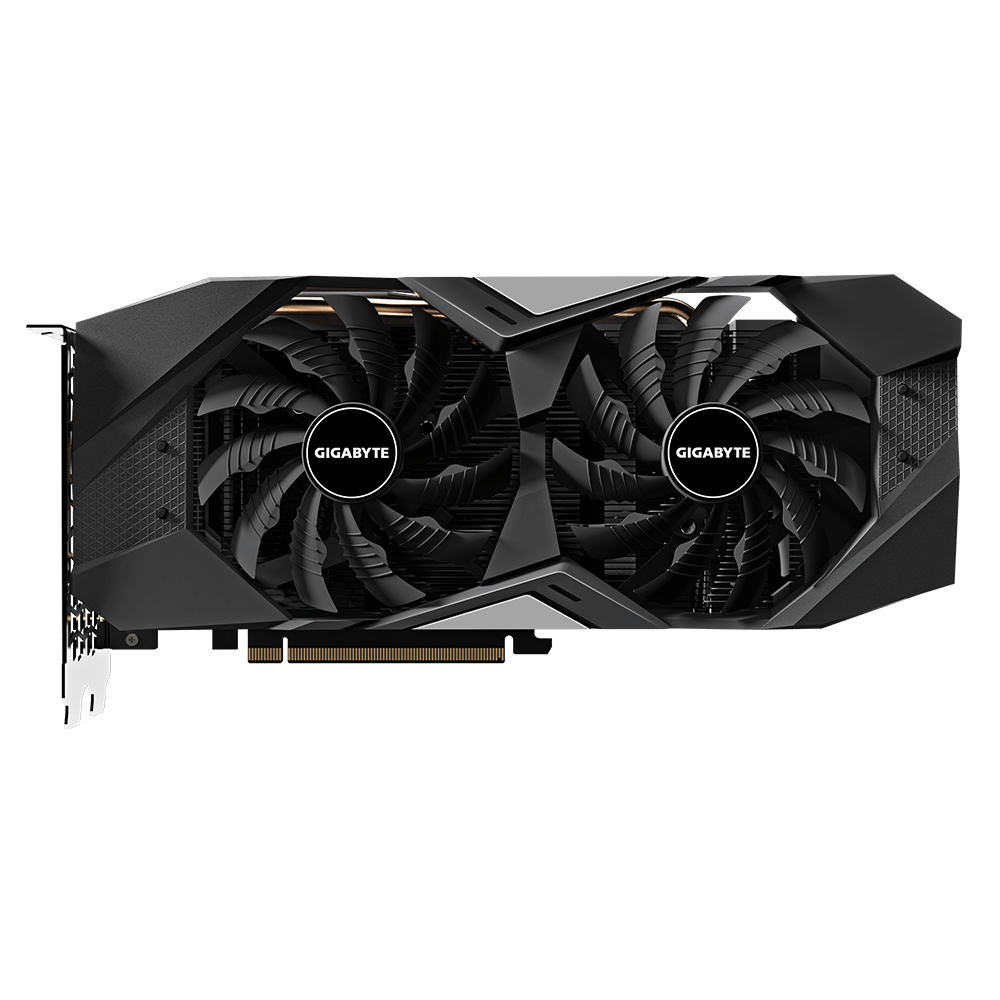

Gigabyte GeForce RTX 2060 Windforce OC 6G- Graphic Cards(Rev. 2.0) [GV-N2060WF2OC-6GD]

Gigabyte GeForce RTX 2060 Windforce OC 6G- Graphic Cards (Rev. 2.0)

[GV-N2060WF2OC-6GD]

P/N: GV-N2060WF2OC-6GD

Features :

# Powered by GeForce RTX™ 2060
# Integrated with 6GB GDDR6 192-bit memory interface
# WINDFORCE 2X Cooling System with alternate spinning fans
# 100mm unique blade fans
# Protection backplate

Core Clock :

​# 1770 MHz (Reference card: 1680 MHz)

Specifications :

Model

Brand
GIGABYTE

Model
GV-N2060WF2OC-6GD

Interface

Interface
PCI Express 3.0 x16

Chipset

Chipset Manufacturer
NVIDIA

GPU Series
NVIDIA GeForce RTX 20 Series

GPU
GeForce RTX 2060

Core Clock
1770 MHz

CUDA Cores
1920

Memory

Effective Memory Clock
14000 MHz

Memory Size
6GB

Memory Interface
192-Bit

Memory Type
GDDR6

3D API

DirectX
DirectX 12

OpenGL
OpenGL 4.5

Ports

HDMI
1 x HDMI

DisplayPort
3 x DisplayPort

Details

Cooler
WINDFORCE 2X

System Requirements
System PSU Limitation (W): 500

Power Connector
8-Pin

Form Factor & Dimensions

Form Factor
ATX

Max GPU Length
265 mm

Card Dimensions (L x H)
10.43″ x 4.75″

Slot Width
Dual Slot

REAL-TIME RAY TRACING IN GAMES

Ray tracing is the definitive solution for lifelike lighting, reflections and shadows, offering a level of realism far beyond what’s possible using traditional rendering techniques. NVIDIA Turing™ is the first GPU capable of real-time ray tracing.

NVIDIA TURING™ ARCHITECTURE

This revolutionary architecture, combined with our all-new GeForce® RTX platform, fuses together real-time ray tracing, artificial intelligence and programmable shading. You’ve never created and enjoyed games like this before.

Creating Online Videos or feature-length films.

Animating and 3da modeling. Designing graphics.
even broadcasting games. NVIDIA RTX GRAPHICS card power the creative applications you use every day, so you can do more and wait less.

WINDFORCE 2X COOLING SYSTEM

The WINDFORCE 2X cooling system features two 100mm unique blade fans, an alternate spinning fan, two direct-touch GPU, composite copper heat pipes and a 3D active fan. All together, these technologies deliver effective heat dissipation.

HEAT PIPES DIRECT TOUCH

The shape of each pure-copper heat pipe maximizes the direct contact area with the GPU, ultimately enhancing heat transfer. Each heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

COMPOSITE HEAT-PIPES

The composite heat-pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces, increasing cooling capacity.

BUILT STRONG

EXTREME DURABILITY AND OVERCLOCKING

This graphics card uses an 4+2 power-phase design to allow the MOSFET to operate at lower temperatures. The over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors provide excellent performance and longer system life.

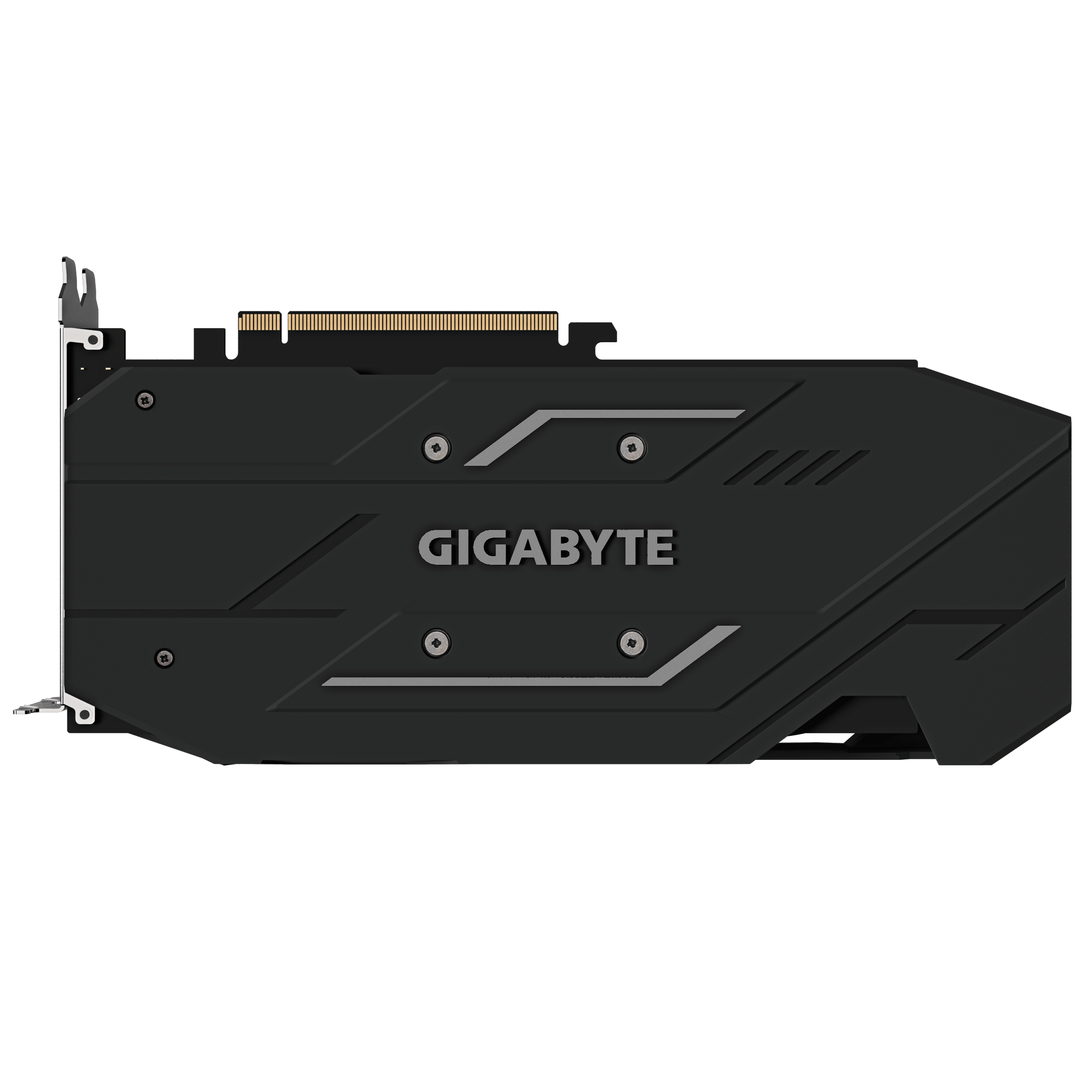

PROTECTIVE METAL BACKPLATE

The metal backplate provides a refined aesthetical shape and also enhances the structure of the graphics card to provide complete protection.

MINIMUM SYSTEM REQUIREMENTS :

PCI Express-compliant motherboard with one dual-width x16 graphics slot
500W or greater system power supply
1.5 GB available hard disk space
8GB system memory (16GB recommended)
Microsoft Windows 10 64bit, Windows 7 64 bit, linux 64-bit
one 8-Pin supplementary power connecter

Accessories :

1. Quick guide
2. Driver CD

for more info. please visit the link below :

https://www.gigabyte.com/Graphics-Card/GV-N2060WF2OC-6GD#kf

Warranty

1-Year-Only
